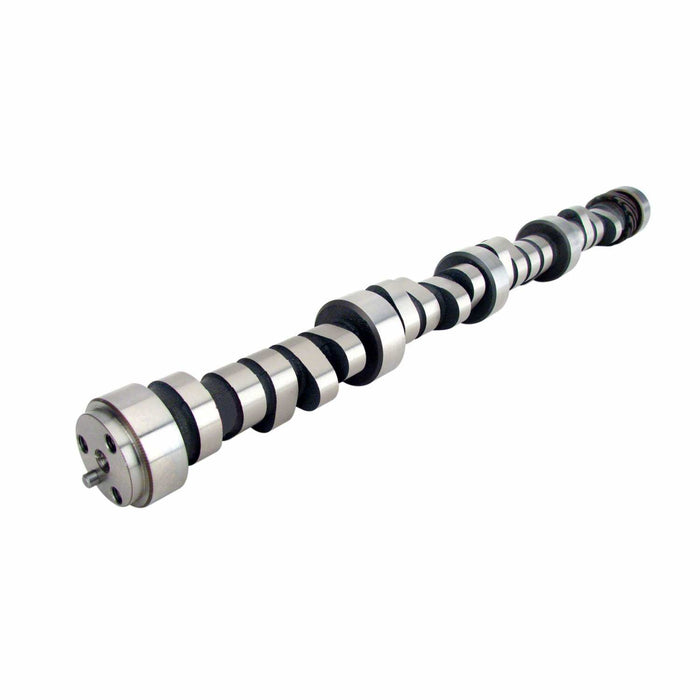

COMP Cams 08-470-8 Limited street/ bracket racing. 10.5:1. 3500+ stall. Headers and race intake.
by COMP Cams
SKU ds_BDQQ_08-470-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$760.09
-
Original price
$760.09
Original price
$760.09
$760.09
$760.09
-
$760.09
Current price
$760.09
Availability:
Out of stock
Description
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 314 |
| Advertised Intake Duration | 314 |
| Amazon ASIN | N/A |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,500-6,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL08-470-8 |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits '87+ GEN 1 Chevrolet 305-350 Small Blocks w/ Factory Roller Camshafts (Not LT-1/LS1 etc) |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 252/252 Hydraulic Roller Cam for OE Roller SBC |
| Description_EXT | Limited street/ bracket racing. 10.5:1. 3500+ stall. Headers and race intake. |
| Description_INV | Magnum 252/252 Hyd Roller OE Roller SBC |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_MKT | An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs. |
| Description_SHO | Mag 252/252 HRlrSBC |
| Description_SHP | None |
| Engine Family | Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998) |
| Exhaust Duration at .050 inch Lift | 252 |
| Exhaust Valve Lift | 0.6 |
| Grind Number | 314HR |
| height | 2.6 |
| Intake Duration at .050 Inch Lift | 252 |
| Intake Valve Lift | 0.6 |
| K-Kit Upgrade | K08-470-8 |
| length | 24.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK08-470-8 |
| Title | Magnum 252/252 Hydraulic Roller Cam for OE Roller SBC |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 8.35 |
| width | 2.9 |
