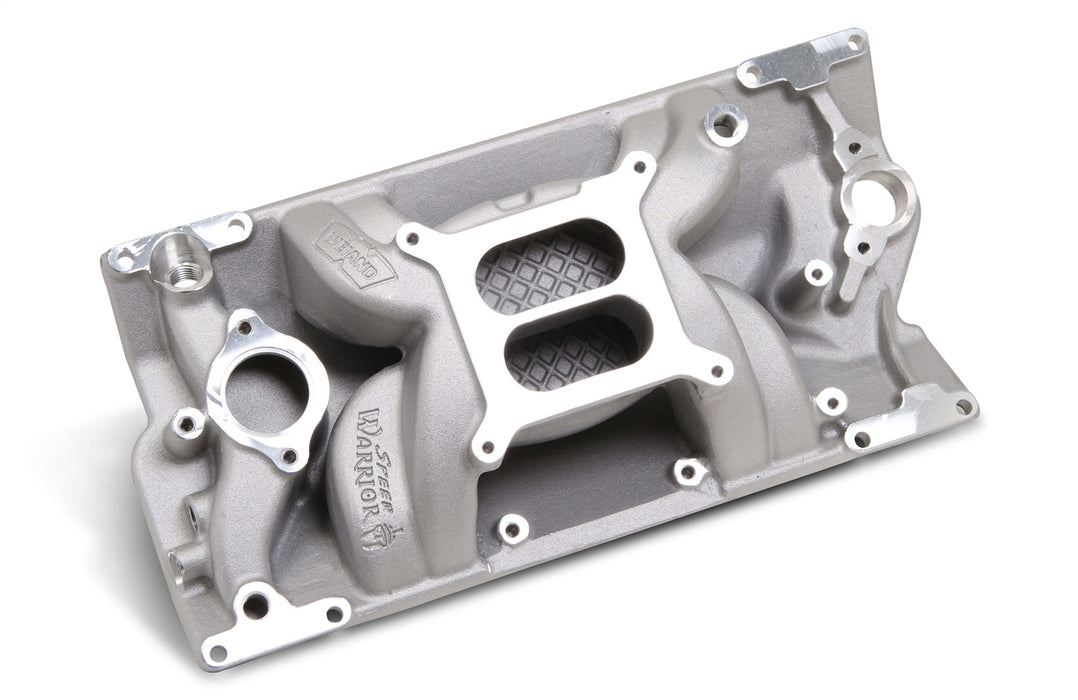

Weiand 8502 Speed Warrior™ Intake Manifold
by Weiand
SKU ds_BHTK_8502
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$786.85
-
Original price
$786.85
Original price
$786.85
$786.85
$786.85
-
$786.85
Current price
$786.85
Availability:
Only 2 left!
Description
The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! * Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G
Specifications
| Construction | Cast |
| Cylinder Head Type | Standard |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Speed Warrior™ Intake Manifold |
| Description_EXT | Speed Warrior™ Intake Manifold; Upper; Power Band 1500-6700 RPM; HighRise; w/Vortec Cylinder Heads; Square Bore Carb; 4.19 in. Front H/5.27 in. Rear Height; Non-EGR; Satin Finish; |
| Description_FAB | 1500-6700 RPM Power Band |
| Description_FAB | Height Front 4.19 in.; Rear 5.27 in. |
| Description_FAB | High Rise/Dual Plane Design |
| Description_FAB | Isolated Runners To Reduce Intake Charge Heating |
| Description_FAB | Permanent Mold Casting |
| Description_FAB | Port Size 2.05 in. Height x 1.02 in. Width |
| Description_FAB | Precision CNC Machining |
| Description_FAB | Promotes Airflow Between Hot Engine and Intake Plenum |
| Description_FAB | Square Bore Carburetor Flange |
| Description_INV | MANIFOLD-SBC VORTEC SPEED WARRIOR |
| Description_MKT | The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! * Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G |
| Description_SHO | Intake Manifold |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block V8 |
| finish | Satin |
| Front Height | 4.190 in. |
| Fuel System Type | Carb |
| height | 8.5 |
| length | 1.75 |
| LTL | N |
| Manifold Type | High Rise |
| Number of Carbs | One |
| Position | Upper |
| Rear Height | 5.270 in. |
| RPM Range | 1500-6700 |
| Usage | Street/Strip |
| WARNING CA Proposition 65 | No |
| weight | 0.5 |
| width | 6.0 |
