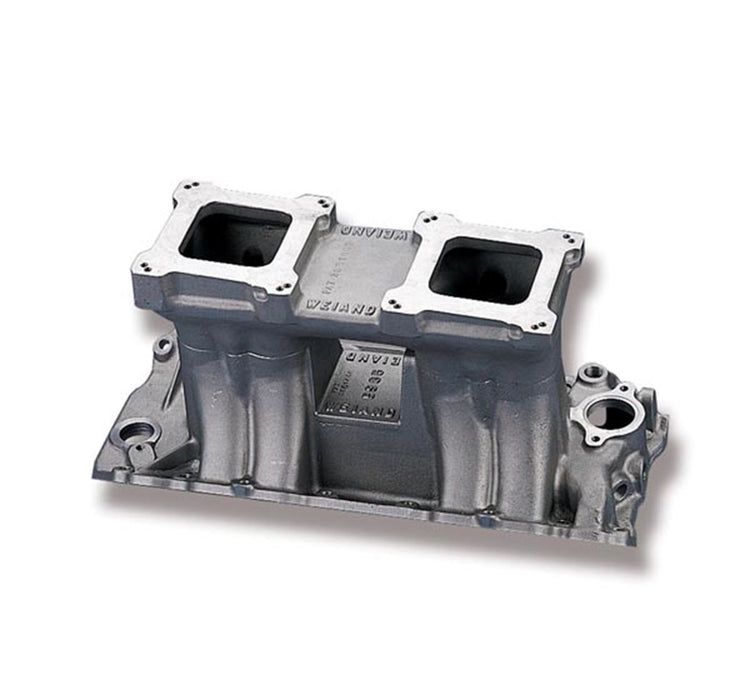

Weiand 1985WND Nostalgic Series Hi-Ram Intake Manifold
by Weiand
SKU ds_BHTK_1985WND
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,186.56
-
Original price
$1,186.56
Original price
$1,186.56
$1,186.56
$1,186.56
-
$1,186.56
Current price
$1,186.56
Availability:
Only 3 left!
Description
HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vacuum operated secondary's, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation. Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit.
Specifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_ASM | HI-RAM SERIES: These tunnel ram manifold |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Nostalgic Series Hi-Ram Intake Manifold |
| Description_EXT | Nostalgic Series Hi-Ram Intake Manifold; Upper; Power Band 2800-8000 RPM; w/Rectangular Port Heads; Square Flange Carb Mount; 10.12 in. Front/10.93 in. Rear Height; Satin Finish; |
| Description_FAB | 2 x 4 Carburetor Top |
| Description_FAB | 2500-7800 RPM Power Band |
| Description_FAB | Carb Flange Center-To-Center 9 11/16 in. |
| Description_FAB | Height Front 10.12 in.; Rear 10.93 in. |
| Description_FAB | Large Volume Plenum |
| Description_FAB | Port Size 2.34 in. Height x 1.55 in. Width |
| Description_FAB | Special D-Shaped Port Runner Design |
| Description_FAB | Square Flange Carburetor Mounting |
| Description_INV | CHEV B/B D/Q HI RAM (RECT) |
| Description_MKT | HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vacuum operated secondary's, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation. Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit. |
| Description_SHO | Intake Manifold |
| height | 10.7 |
| length | 24.4 |
| LTL | N |
| weight | 31.55 |
| width | 16.3 |
