Description
Tuff Country's Uni-Ball lift kit for the Ford F150 will allow for use of up to 35 inch x 11.5 inch tires (with minor trimming) while keeping a factory ride. This performance version of their 3 inch lift kit uses upper control arms w/uni-ball joints for greater suspension travel, extreme durabilty and elimination of binding that regular ball joints can cause.
The rear end is lifted using 3 inch cast iron lift blocks and extended u-bolts (1 inch factory blocks are replaced). No drilling is required and the factory shocks and struts do not need to be replaced.
Details:
- 3 Inch Uni-Ball Lift Kit w/ SX8000 Shocks
- Allows use of 33 inch x 12.5 inch tires (with no trimming required) or 35 inch x 11.5 inch tires (with minor trimming of front bumper plastic valance)
- Upper control arms w/uni-ball joints for added suspension travel and durability
- High quality teflon-lined FK uni-ball joints
- 30 to 35 Percent more articulation than standard ball joints
- Eliminates binding caused by standard ball joints
- No drilling, cutting or welding required, simple installation
- Upper coil / strut spacers maintain a near factory ride
- Factory front struts can be retained
- Requires aftermarket wheels with 5 inch backspacing or less
- Proudly Made in the USA
- Limited Lifetime Warranty
- Sold As A Kit
Fits:
- 2009-2013 Ford F150 4WD/2WD
Installation Notes:
- New extended rear shocks are not required to install this leveling kit properly, but recommended
- Requires aftermarket wheels with 5 inch backspacing or less
- Recommended Tire Size: 33 inch x 12.5 inch or 35 inch x 11.5 inch (with trimming)
- Recommended Wheel Backspacing: 5 inches or less
- Amount of Lift: 3 Inch Front / 2 Inch Rear

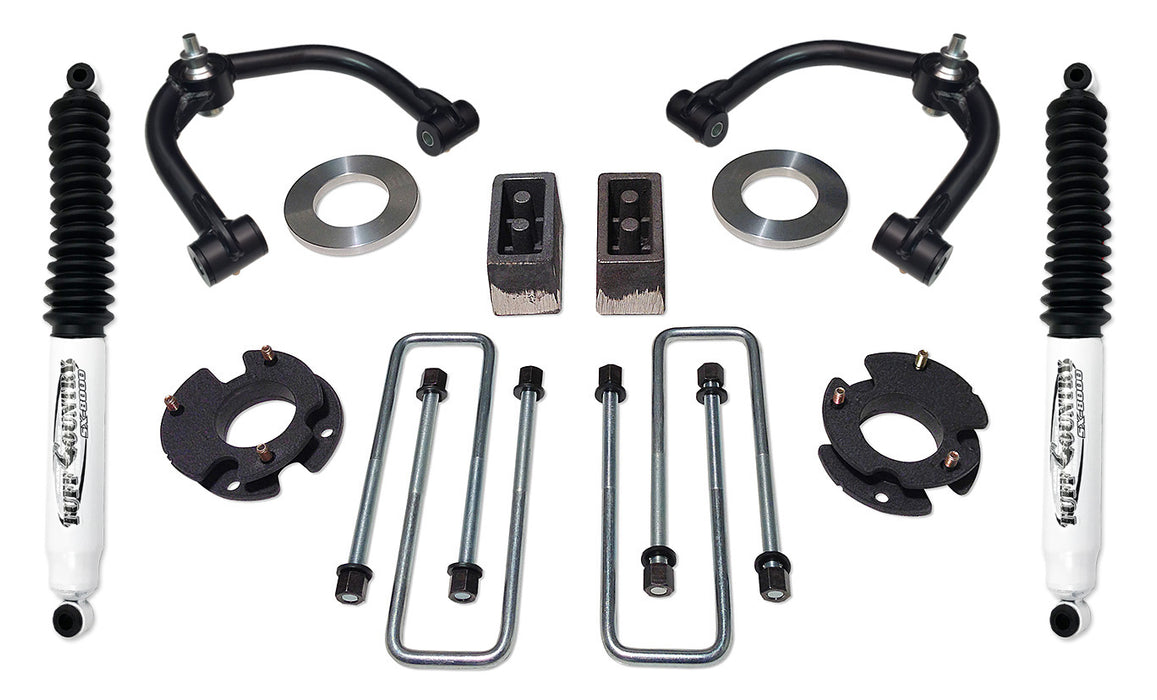

- Includes: 2) Front upper coil spacers, 2) Uni-Ball Upper Control Arms, 2) Pre-load spacers, 2) 3 inch cast iron blocks, 4) Extended rear u-bolts, 2) Hardware bags, 4) SX8000 Shocks
Specifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/tuffcountrylogo.jpg |
| color_l | Black/Gray/Silver |
| Description_DES | Complete Kit (w/SX8000 Shocks)-3in. |
| Description_EXT | Complete Kit (w/SX8000 Shocks)-3in. |
| Description_FAB | Uni-Ball Lift Kit w/Shock |
| Description_LAB | Proposition 65 |
| Description_MKT | Tuff Country EZ-Ride Suspension was incorporated over 20 years ago realizing the desperate need for quality suspension products in the after market world. As well as supplying the 4WD enthusiast with the best quality, Tuff Country EZ-Ride Suspension also offers you the most competitive price structure in the industry. Tuff Country EZ-Ride Suspension opened its doors in July of 1988 in a small 1000 square foot facility. We have now expanded into a new 53,000 square foot high tech facility nestled at the bottom of the beautiful Rocky Mountains in Salt Lake City, Utah. Tuff Country EZ-Ride Suspension utilizes the transverse terrain of the Rocky Mountains and the rugged terrain of Utah's southeast desert near Moab Utah as its testing grounds. All brackets are made from high quality top grade steel and cut to precise dimensions by a state of the art computerized laser beam. What does this mean for you? It means every bracket is made the same and will allow a proper fit. |
| Description_SHO | Complete Kit (w/SX80 |
| drive | 2WD|4WD |
| finish_l | Natural/Powdercoat/Zinc |
| front_lift_height | 3.0 Inch |
| height | 7.0 |
| includes_shocks | SX8000 |
| last_update | 2023-02-23 04:26:53 |
| last_update | 2023-04-03 04:42:38 |
| length | 6.0 |
| Lift/Drop Height | 3 in. |
| Location | Front|Rear |
| LTL | N |
| material_l | Cast Iron/Steel |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| rear_lift_height | 2.0 Inch |
| recommended_tire_size | 33 Inch x 12.5 Inch|35 Inch x 11.5 Inch (With Trimming) |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Warranty | Limited Lifetime Warranty |
| weight | 43.0 |
| width | 21.0 |
