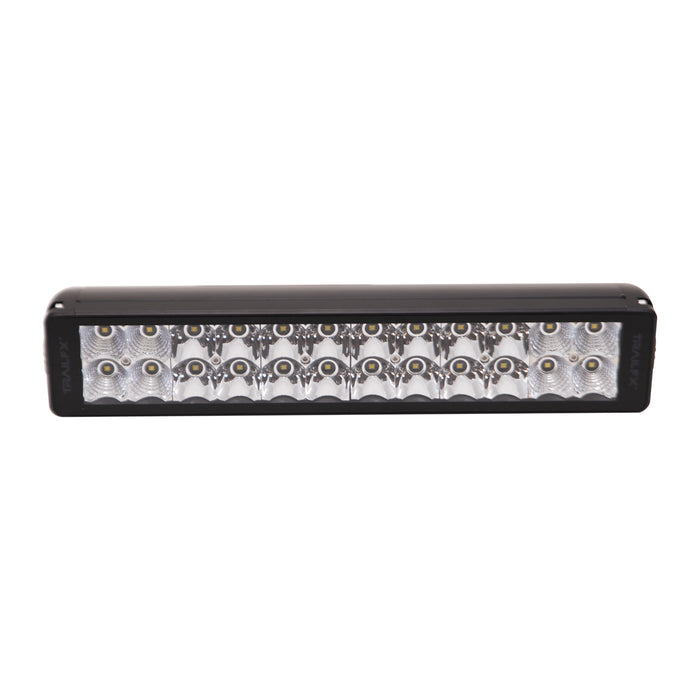

TrailFX 12DRSCM Light Bar - LED
by TrailFX
SKU ds_DXTX_12DRSCM
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$383.27
-
Original price
$383.27
Original price
$383.27
$383.27
$383.27
-
$383.27
Current price
$383.27
Availability:
Out of stock
Description
TrailFX provides LED light solutions to perform for work, play, and everyday life. Quality materials and workmanship go into each of our applications, including use of Cree and OSRAM LED's providing our lights with 30,000+ working hours. Buy once and with confidence knowing all TrailFX LED light solutions are covered by a Limited Lifetime Warranty.
Specifications
| Ampere Rating At 12 Volts | 1.15 Amp |
| Ampere Rating At 24 Volts | 0.61 Amp |
| Beam Angle (Deg) | 8 Degree/ 90 Degree |
| Beam Type | Spot/ Flood Combo Beam |
| Connection Type | Deutsch Connector |
| Description_DEF | Light Bar |
| Description_EXT | 13-3/4 Length; 72 Watt; 8 Degree Spot/ 90 Degree Flood Beam Combination; 10800 Raw/ 4700 Effective Lumens; 24 Clear OSRAM LED 3 Watt Bulbs; Polycarbonate Lens; Die-Cast Almn Housing; IP67 Rated; 30,000 Wrkg Hrs; Single Light Wrng Harness |
| Description_FAB | 30,000+ Hours Of Working Life Assures The Light Will Operate For Work, Play, And Everyday Life |
| Description_FAB | A Combination 8 Degree Spot Beam And 90 Degree Flood Beam Allows Driver To See Further Down The Path, As Well As Everything Off The Trail Around You |
| Description_FAB | Die-Cast Aluminum Housing For Durabilty And Long Life |
| Description_FAB | Higher Effective Lumens Fully Illuminates The Night Sky |
| Description_FAB | IP67 Rating For Dust, Sand, And Dirt Protection, Along With A High Water Resistance To Keep The Lights At 100 Percent Functional Capacity Regardless Of The Outside Elements |
| Description_FAB | Lower Power Consumption Allows Extra System Wattage For Additional Accessories |
| Description_INV | DRS 24X3W 12IN COMBO |
| Description_MKT | TrailFX provides LED light solutions to perform for work, play, and everyday life. Quality materials and workmanship go into each of our applications, including use of Cree and OSRAM LED's providing our lights with 30,000+ working hours. Buy once and with confidence knowing all TrailFX LED light solutions are covered by a Limited Lifetime Warranty. |
| Description_SHO | Light Bar - LED |
| height | 5.91 |
| Height (in) | 2.67 Inch |
| Housing Color | Black |
| Housing Material | Die-Cast Aluminum |
| Includes Light Cover | No |
| Includes Mounting Hardware | Yes |
| length | 23.62 |
| Length (in) | 13.74 Inch |
| Lens Material | Polycarbonate |
| Light Color | Clear |
| LTL | N |
| Mounting Length (IN) | 16.24 Inch |
| Mounting Style | Side And Bottom Mount |
| Number Of LED's | 24 |
| Number Of Rows | Double |
| Title | Light Bar - LED |
| Type | Straight |
| Voltage Rating | 10 To 30 Volt |
| Wattage | 72 Watt |
| weight | 7.76 |
| width | 5.31 |
| Width (in) | 2.12 Inch |
