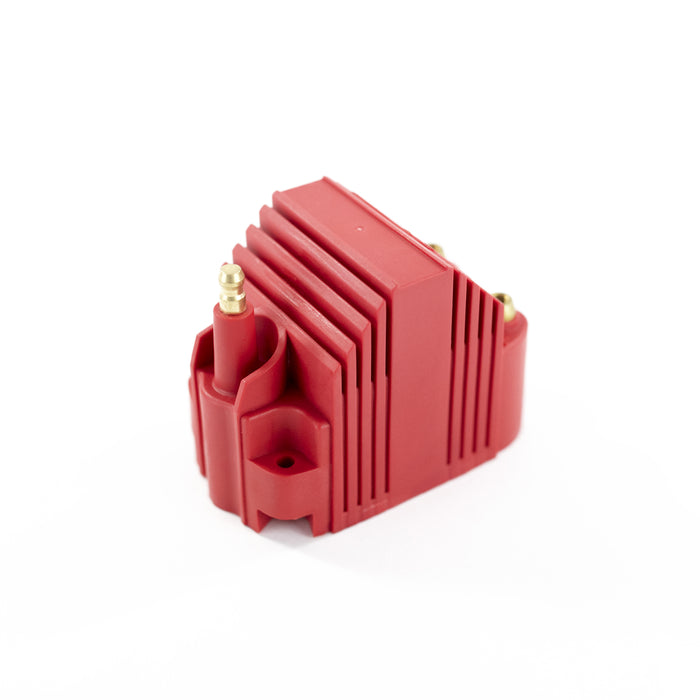

Top Street Performance JM6924R Compact Red Square E-Core Ignition Coil; 40;000 Volts
SKU ds_GHWT_JM6924R
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$81.82
-
Original price
$81.82
Original price
$81.82
$81.82
$81.82
-
$81.82
Current price
$81.82
Availability:
Only 3 left!
Description
TSP's new compact e-core ignition coil puts out 40,000 volts, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration thoroughout the entire RPM band. It's small design allows for easy mounting, and the brass terminal ensures maximum conductivity.
Specifications
| Coil Color | Red |
| Coil Shape | Square |
| Coil Style | Compact E-core |
| Description_ASC | Intended for high-performance distributor ignition set-ups |
| Description_ASM | Universal |
| Description_DEF | Ignition Coil |
| Description_DES | Compact Red Square E-Core Ignition Coil; 40;000 Volts |
| Description_EXT | Compact Red Square E-Core 40,000 Volt Ignition Coil. |
| Description_FAB | Coil Style: Compact E-core; Coil Color: Red; Primary Resistance: 0.355 ohms; Secondary Resistance: 4,400 ohms; Spark Duration: 200 uS; Max Voltage: 40,000 V; Peak Current: 300 mA; Turn Ratio: 70:1; Inductance: 6.9 mH; Coil Shape: Square |
| Description_INV | TSP Ignition Coil |
| Description_MKT | TSP's new compact e-core ignition coil puts out 40,000 volts, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration thoroughout the entire RPM band. It's small design allows for easy mounting, and the brass terminal ensures maximum conductivity. |
| Description_SHO | Ignition Coil |
| height | 5.0 |
| Inductance | 6.9 mH |
| length | 6.0 |
| Max Voltage | 40,000 V |
| Peak Current | 300 mA |
| Primary Resistance | 0.355 ohms |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | prop65_warning.jpg |
| Prop 65 Flag | Yes |
| Secondary Resistance | 4,400 ohms |
| Spark Duration | 200 uS |
| Title | TSP Compact Red Square E-Core Ignition Coil; 40;000 Volts |
| Turn Ratio | 70 |
| weight | 3.0 |
| width | 7.0 |
