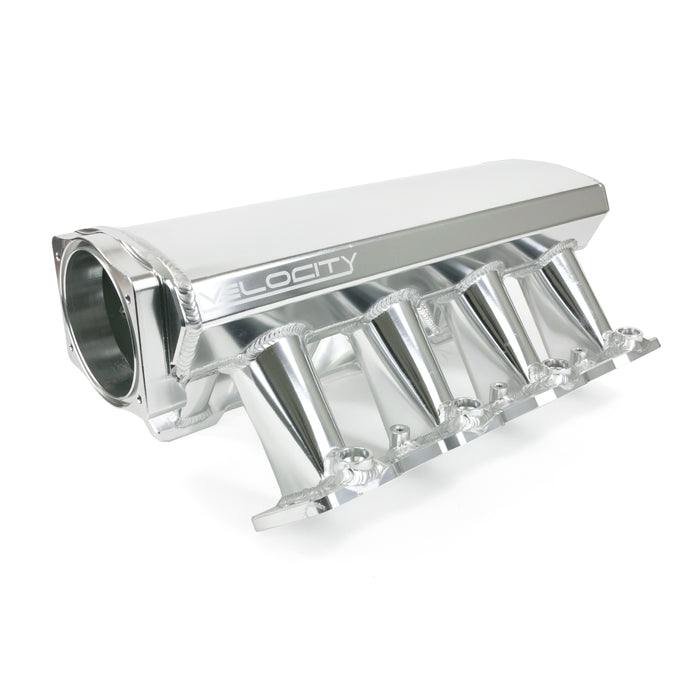

Top Street Performance 81002TCA Intake Manifold; TSP Velocity Fab. Aluminum Cathedral Port Hi-Ram; Anodized
SKU ds_GHWT_81002TCA
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$689.00
-
Original price
$689.00
Original price
$689.00
$689.00
$689.00
-
$689.00
Current price
$689.00
Availability:
Out of stock
Description
We designed our fabricated aluminum sheet metal intake manifold to improve the look and performance of your LS engine. It features a 102mm throttle body opening for maximum air flow. The runners are velocity stacked, allowing air to move more smoothly at high velocities. The manifold is constructed of 3.5mm thick T-6061 aluminum and is TIG welded to ensure consistent strength and performance. Individual port o-rings guarantee a good seal with the cylinder heads and throttle body. Available in clear or black anodized finishes, this manifold will also give your engine bay a nice, clean aesthetic.
Specifications
| Description_ASM | GM LS1/LS6 Cathedral Port |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Intake Manifold; TSP Velocity Fab. Aluminum Cathedral Port Hi-Ram; Anodized |
| Description_EXT | GM LS1/LS2/LS6 Cathedral Port Straight Hi Ram Black TSP Velocity Fabricated Aluminum Intake Manifold |
| Description_FAB | Injection Style: Multi-port; Rail Type: Custom TSP Design; Rails Included: No; Throttle Body Bore Size: 102mm; Throttle Body Bolt Pattern: OEM 4-Bolt Pattern; Flange Angle: 0 Degree; Throttle Body Included: No; Intake Material: T-6061 Aluminum; Plenum Thickness: 3.5mm; Vacuum Ports: (3) 1/8" NPT And (1) 1/4" NPT; Map Sensor Bung: Yes (Sensor Not Included); Overall Height: 9"; Port Style: "Cathedral" |
| Description_INV | TSP Velocity LS1 Intake Hi - Anodized |
| Description_MKT | We designed our fabricated aluminum sheet metal intake manifold to improve the look and performance of your LS engine. It features a 102mm throttle body opening for maximum air flow. The runners are velocity stacked, allowing air to move more smoothly at high velocities. The manifold is constructed of 3.5mm thick T-6061 aluminum and is TIG welded to ensure consistent strength and performance. Individual port o-rings guarantee a good seal with the cylinder heads and throttle body. Available in clear or black anodized finishes, this manifold will also give your engine bay a nice, clean aesthetic. |
| Description_SHO | Intake Manifold |
| finish | Anodized |
| height | 9.0 |
| length | 22.0 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | prop65_warning.jpg |
| Prop 65 Flag | Yes |
| Title | TSP Intake Manifold; TSP Velocity Fab. Aluminum Cathedral Port Hi-Ram; Anodized |
| weight | 14.0 |
| width | 15.0 |
