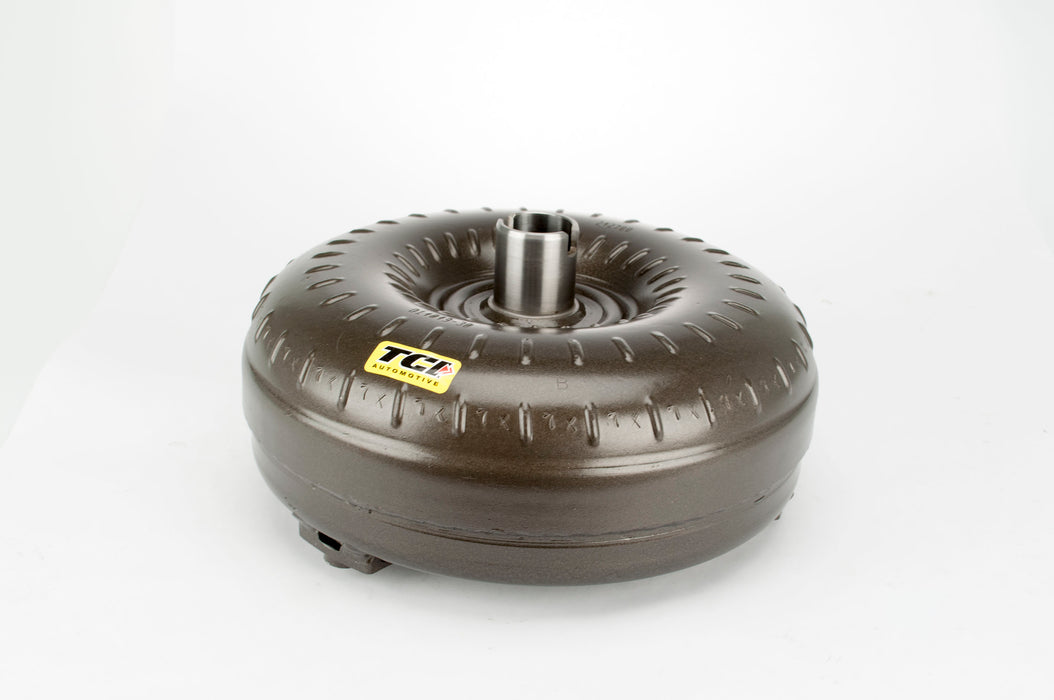

TCI Automotive 242800 Breakaway Converter for '84-'97 700R4, '93-'97 4L60E and '97-'05 Corvette.
SKU ds_DXKM_242800
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,013.60
-
Original price
$1,013.60
Original price
$1,013.60
$1,013.60
$1,013.60
-
$1,013.60
Current price
$1,013.60
Availability:
Only 3 left!
Description
The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Cam Duration | 265 to 280 Degrees |
| California Proposition 65 | Warning: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description_ASC | 12" Converter. Features Lock-Up Compatibility. See 242962 for Breakaway with Anti-balloon Plate. See 243107 for Lock-Up Breakaway Converter with 10" diameter. For more accurate stall range, be sure to contact TCI Support with your vehicle's specifications. TCI techs will need to know your vehicle's weight, engine displacement, power adders, rear gear ratio, along with tire diameter. |
| Description_DEF | Automatic Transmission Torque Converter |
| Description_DES | Breakaway Converter for '84-'97 700R4, '93-'97 4L60E and '97-'05 Corvette. |
| Description_EXT | This Breakaway Converter is designed specifically for '84-'97 700R4, '93-'97 4L60E and '97-'05 Corvette. Provides 2200 to 2400 Stall behind Small Blocks and 2400 to 2600 Stall behind Big Blocks. |
| Description_INV | Breakaway Converter 700R |
| Description_MKT | The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing. |
| Engine Characteristics | Fair Idle, Mild Modifications |
| Expected Stall Speed with Big Block | 2400 to 2600 RPM |
| Expected Stall Speed with Small Block | 2200 to 2400 RPM |
| height | 8.0 |
| length | 14.0 |
| Lock Up Type | Yes |
| LTL | N |
| Rear Gear Ratio | 3.00 to 3.73 |
| Title | Breakaway Converter for '84-'97 700R4, '93-'97 4L60E and '97-'05 Corvette. |
| Torque Converter Series | Breakaway |
| weight | 45.0 |
| width | 14.0 |
