Rough Country 90222 4 Inch Jeep Long Arm Suspension Lift Kit 93-98 Grand Cherokee ZJ Rough Country
SKU ds_DHTP_90222
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,024.95
Original price
$3,024.95
-
Original price
$3,024.95
Original price
$3,024.95
Current price
$2,818.80
$2,818.80
-
$2,818.80
Current price
$2,818.80
Availability:
Out of stock
Description
Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity.
The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized.
Features:
- Aggressive appearance
- Increased ground clearance
- HD 0.25 inch thick crossmember
- Lower control arms feature high clearance design
- Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
- Extreme travel long arms keep optimum alignment and give optimum articulation
- X-Flex control arm features:
- Clevite brand OEM style rubber bushings
- Flex joints feature a massive 2.5 Inch diameter body and 1.25 inch thread
- Fully greasable
- Upper joints pivot up to 20 degrees
- Lower joints pivot up to 35 degrees
Notes:
- Does Not fit AWD models.
- Transfer case skid plate Will Not fit models equipped with 249 transfer case.
- Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
- Models equipped with a CV style front driveshaft may result in driveshaft vibration.
- If this occurs, replacing the driveshaft, axle yoke and, or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
- CV Driveshaft Example
Details:
- Sold As Kit
- Material Forged Steel
- Drive 4WD
- Lift Height 4.0 inch
- Mount Style Bolt On
- Thickness 0.25 inch

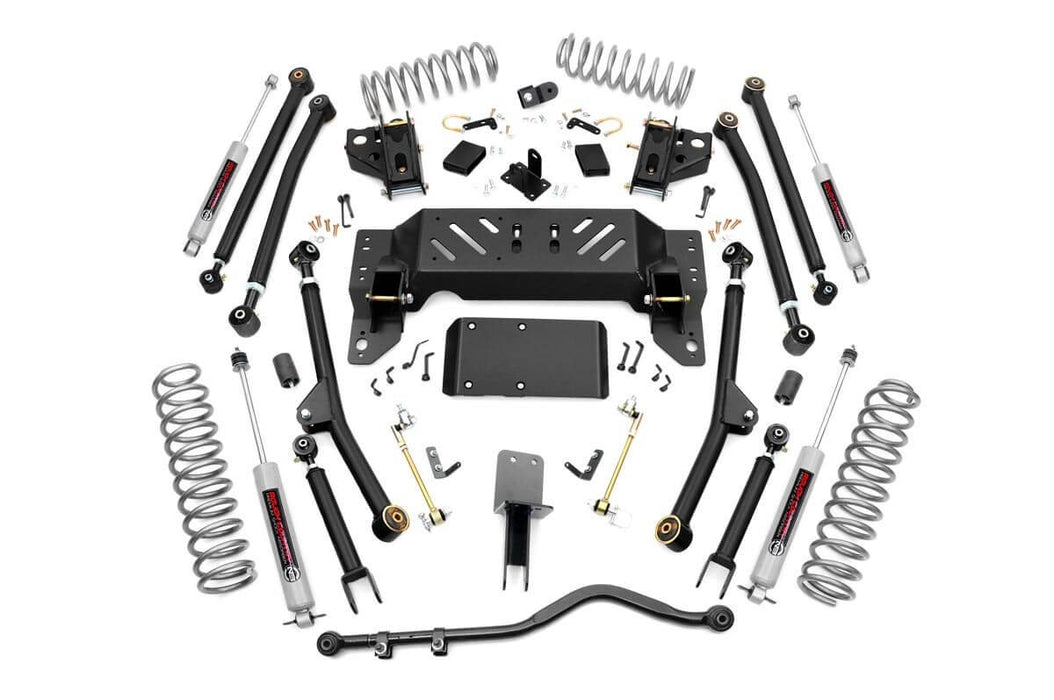

- Front Components Lifted coil springs Adjustable upper control arms Adjustable lower control arms Crossmember Transfer case skid plate Sway-bar quick disconnects Forged Adjustable track bar Track bar bracket 3 Inch Bumpstops Hardware
- Rear Components Lifted coil springs Adjustable upper control arms Adjustable lower control arms Long arm frame brackets Track bar bracket Bumpstop brackets Brake line brackets Hardware
Resources
Installation InstructionsSpecifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/rough%20country%20asap.jpg |
| Description_ASC | 1993-1998:4WD:Jeep:Grand Cherokee |
| Description_ASC | Does NOT fit AWD models. Transfer case skid plate will NOT fit models equipped with 249 transfer case. Exhaust will have to be cut and rerouted to make sure it is away from the moving components. Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration. CV Driveshaft Example |
| Description_ASC | Manufacturer: Rough Country Suspension Systems; Part Number: 90222; Weight (Lbs): 313.67; Install Time (Hours): 8-9; Wheel Backspacing (Inches): 3.625; Recommended Tire Size: 31-by-10.50 |
| Description_ASM | 1993-1998:4WD:Jeep:Grand Cherokee |
| Description_ASM | Jeep: 93-98 Grand Cherokee ZJ 4WD/2WD |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 4-inch X-Series Long Arm Suspension Lift System |
| Description_DES | X-Series Long Arm Suspension Lift Kit w/Shocks |
| Description_EXT | 4 Inch Lift Kit - Long Arm - Jeep Grand Cherokee ZJ 4WD (1993-1998) |
| Description_EXT | Contents: Coil springs, Adj Lwr control arms, Adj Up control arms, 1/2" thick crossmbr, transfer case skid plate, quick discon, 3" bumpstops, forged Adj track bar, track bar drop brkt; Coil springs, Adj Lwr control arms, Adj Up control arms |
| Description_EXT | X-Series Long Arm Suspension Lift Kit w/Shocks; 4 in. Lift; |
| Description_FAB | 25" thick crossmember |
| Description_FAB | Aggressive Appearance |
| Description_FAB | Clevite Brand Orem Style Rubber Bushings. |
| Description_FAB | Flex Joints Feature A Massive 2.5 Diameter Body And 1.25 Thread. |
| Description_FAB | For Unsurpassed Strength And Durability |
| Description_FAB | Front Adjustable Track Bar Is Made Of Forged Solid Steel |
| Description_FAB | Fully Greaseable. |
| Description_FAB | Had 0.25 Thick Crossmember |
| Description_FAB | Increased Ground Clearance |
| Description_FAB | Keep Optimum Alignment And Give Optimum Articulation |
| Description_FAB | Lower Control Arms Feature High Clearance Design |
| Description_FAB | Upper joints pivot up to 20 degrees |
| Description_FAB | X-flex Control Arm Features: |
| Description_INV | Rough Country Suspension Lift Kit |
| Description_MKT | Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity. The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized. |
| Description_MKT | Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicles crucial center of gravity. The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized. |
| Description_SHO | LftKt-Suspw/Shock |
| Description_SHO | Suspension Lift Kit |
| drive | 4WD |
| height | 5.5 |
| Install Time | 8-9 hours |
| installation_time | 8-9 hours |
| last_update | 2023-04-18 13:58:02 |
| length | 34.75 |
| lift_height | 4.0 inch |
| material_l | Forged Steel |
| mount_style | Bolt On |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Rear Kit Components | Lifted coil springs, Adjustable upper control arms, Adjustable lower control arms, Long arm frame brackets, Track bar bracket, Bumpstop brackets, Brake line brackets, Hardware |
| sold_as | Kit |
| Thickness | 0.25 inch |
| Title | 4 Inch Lift Kit - Long Arm - Jeep Grand Cherokee ZJ 4WD (1993-1998) |
| Title | Rough Country 4-inch X-Series Long Arm Suspension Lift System |
| Universal | No |
| vehicle_type | Jeep |
| weight | 22.22 |
| width | 6.75 |
