Rough Country 69330V 3.5 Inch Jeep Suspension Lift Kit Vertex Control Arm Drop 07-18 Wrangler JK Rough Country
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Get the smoothest-riding, best-handling Jeep JK Lift Kit on the market with Rough Country's 3.5in Control Arm Drop Kit! This all-inclusive kit comes with everything you need for a total transformation of your Jeep that promotes impressive driveability and a smooth on or off-road ride quality!
This kit features a set of front and rear lifted coil springs that offer enough ground clearance to run 35x12.50 tires and Rough Country's premium N3 Shocks for a silky smooth ride.
These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality.
With a durable 18mm spring-loaded piston rod, fortified seals, and a faster-cooling 54mm shock body, Rough Country's N3 Shocks offer a premium driving experience.
This kit also features control arm drop brackets, engineered to relocate your factory control arms to the optimum geometry for absolutely incredible handling and driveability you won't find in other setups. Includes Rough Country's Lifetime Replacement Guarantee!
Features:
- Easy bolt-on installation
- Increased ground clearance
- Control arm drop brackets promote optimum geometry for smooth handling and ride quality
- Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.
- Factory tuned coil springs are based on the stock spring rate
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-Charged
- Remote Reservoir with Steel Braided Reservoir Line
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- Specifically Tuned for Each Application
- 3-Stage Seal System
- CNC-Machined Billet Aluminum Accents
- Zinc Plate Finish with Double Clear Coat
- Incredible >400 Hour Salt Spray Rating
- 3-year Manufacturer's Warranty
Notes:
Does Not fit 4-door (Unlimited) models. 2012-2018 models Require exhaust modifications to clear the front driveshaft. (#1030) On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft.
Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.
Details:
- Sold As Kit
- Doors 2 Door
- Drive 4WD
- Max Tire 35.0 inch
- Lift Height 3.5 inch
- Mount Style Bolt On

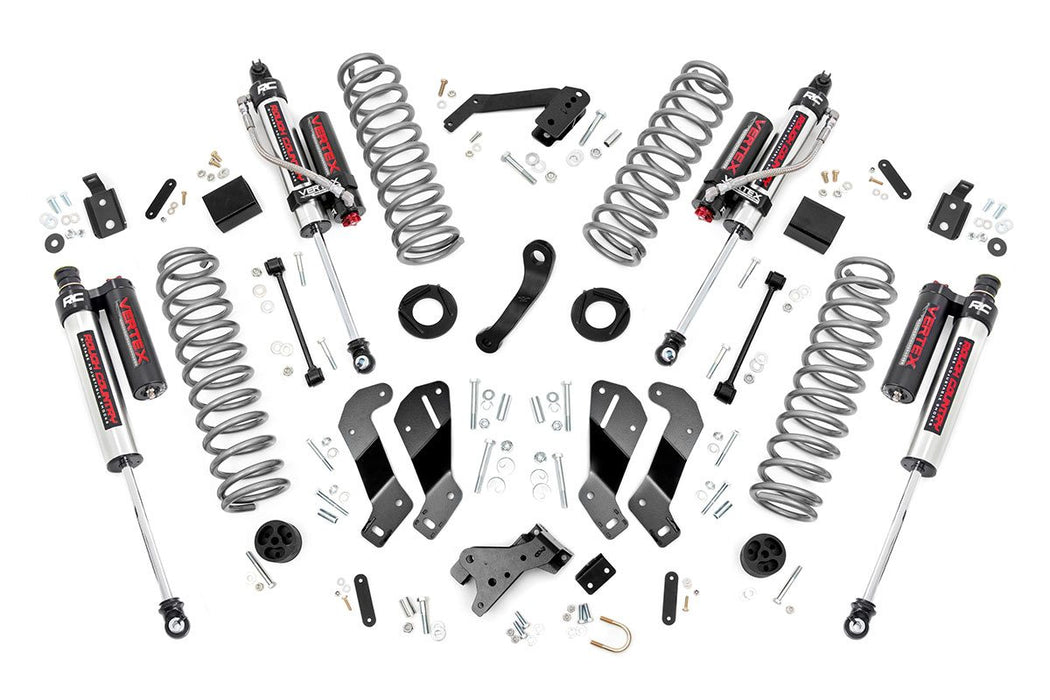

- Front Components Lifted coil springs Control arm drop brackets Track bar drop bracket Pitman arm Brake line relocation brackets Hardware
- Rear Components Lifted coil springs Coil correction plates Track bar drop bracket Extended sway-bar links Brake line relocation brackets Hardware
Resources
Installation InstructionsSpecifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/rough%20country%20asap.jpg |
| Description_ASC | 2007-2018:4WD:Jeep:Wrangler JK (2 Door) |
| Description_ASC | Does NOT fit 4-door (Unlimited) models. 2012-2018 models require exhaust modifications to clear the front driveshaft. (#1030) On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed. |
| Description_ASC | FRONT: Lifted coil springs, Control arm drop brackets, Track bar drop bracket, Pitman arm, Brake line relocation brackets, Hardware; REAR: Lifted coil springs, Coil correction plates, Track bar drop bracket, Extended sway-bar links, Brake line relocation brackets, Hardware; SHOCKS: (4) Premium N3 Series |
| Description_ASM | 2007-2018 4WD Jeep Wrangler JK; 2-door models ONLY |
| Description_ASM | 2007-2018:4WD:Jeep:Wrangler JK (2 Door) |
| Description_DEF | Suspension Lift Kit |
| Description_DES | Suspension Lift Kit w/Shocks |
| Description_EXT | 3.5 Inch Lift Kit - Vertex - Jeep Wrangler JK 4WD (2007-2018) |
| Description_EXT | Suspension Lift Kit w/Shocks; 3.5 in.; Vortex Reservoir; Control Arm Drop; Easy Bolt-On installation; Premium N3 Series Shocks; |
| Description_FAB | Allowing Them To Function More Efficiently |
| Description_FAB | Coil Correction Plates Correct The Rear Coil Angle By 10 Degrees |
| Description_FAB | Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently |
| Description_FAB | Control Arm Drop Brackets Promote Optimum Geometry |
| Description_FAB | Easy Bolt-On Installation |
| Description_FAB | Factory Tuned Coil Springs Are Based On The Stock Spring Rate |
| Description_FAB | For Smooth Handling And Ride Quality |
| Description_FAB | Incl. Application Valved N3 Series Shock Absorbers |
| Description_FAB | Increased Ground Clearance |
| Description_FAB | Offer The Best In Balanced Performance For On And Off-road Use |
| Description_FAB | Vertex Reservoir Shocks |
| Description_FAB | Zinc Plate Finish with Double Clear Coat |
| Description_MKT | Get the smoothest-riding, best-handling Jeep JK Lift Kit on the market with Rough Country's 3.5in Control Arm Drop Kit! This all-inclusive kit comes with everything you need for a total transformation of your Jeep that promotes impressive driveability and a smooth on or off-road ride quality!This kit features a set of front and rear lifted coil springs that offer enough ground clearance to run 35x12.50 tires and Rough Country's premium N3 Shocks for a silky smooth ride. These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod, fortified seals, and a faster-cooling 54mm shock body, Rough Country's N3 Shocks offer a premium driving experience. This kit also features control arm drop brackets, engineered to relocate your factory control arms to the optimum geometry for absolutely incredible handling and driveability you won't find in other setups.Includes Rough Country's Lifetime Replacement Guarantee! |
| Description_MKT | Get the smoothest-riding, best-handling Jeep JK Lift Kit on the market with Rough Countrys 3.5in Control Arm Drop Kit! This all-inclusive kit comes with everything you need for a total transformation of your Jeep that promotes impressive driveability and a smooth on or off-road ride quality!This kit features a set of front and rear lifted coil springs that offer enough ground clearance to run 35x12.50 tires and Rough Countrys premium N3 Shocks for a silky smooth ride. These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod, fortified seals, and a faster-cooling 54mm shock body, Rough Countrys N3 Shocks offer a premium driving experience. This kit also features control arm drop brackets, engineered to relocate your factory control arms to the optimum geometry for absolutely incredible handling and driveability you wont find in other setups.Includes Rough Countrys Lifetime Replacement Guarantee! |
| Description_SHO | LftKt-Suspw/Shock |
| doors | 2 Door |
| drive | 4WD |
| height | 4.5 |
| Install Time | 4-5 hours |
| installation_time | 4-5 hours |
| last_update | 2023-04-18 14:00:42 |
| length | 33.5 |
| Lift/Drop Height | 3.5 in. |
| lift_height | 3.5 inch |
| max_tire | 35.0 inch |
| mount_style | Bolt On |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Rear Kit Components | Lifted coil springs, Coil correction plates, Track bar drop bracket, Extended sway-bar links, Brake line relocation brackets, Hardware |
| sold_as | Kit |
| Title | 3.5 Inch Lift Kit - Vertex - Jeep Wrangler JK 4WD (2007-2018) |
| Title | 3.5in Jeep Suspension Lift Kit Control Arm Drop (07-18 Wrangler JK) |
| Universal | No |
| vehicle_type | Jeep |
| WARNING CA Proposition 65 | No |
| Warranty | Lifetime Replacement Guarantee |
| weight | 17.5 |
| width | 9.5 |
