Rough Country 37830 5.0 Inch Dodge Radius Arm Suspension Lift Kit w/AISIN Transmission (19-20 Ram 3500 4WD Diesel) Rough Country
SKU ds_DHTP_37830
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,448.14
Original price
$2,448.14
-
Original price
$2,448.14
Original price
$2,448.14
Current price
$2,074.71
$2,074.71
-
$2,074.71
Current price
$2,074.71
Availability:
Out of stock
Description
Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Radius Arm Lift Kit. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most.
The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.
These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.
Features:
- 5.0 Inch Dodge Radius Arm Suspension Lift Kit w/ AISIN Transmission (19-20 Ram 3500 4WD Diesel)
- Increased ground clearance
- Track bar bracket keeps the front axle properly centered
- Radius Arms offer a more factory-like angle and feature a durable, Clevite Rubber Bushings for maximum vibration absorption
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
- Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
- Does Not fit Power Wagon models
- Does Not fit air ride models
- Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
- Only fits Diesel models
- Requires minor cutting.
- On vehicles equipped with a two piece driveshaft and carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Resources
Installation InstructionsSpecifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/rough%20country%20asap.jpg |
| Description_ASC | 2019-2021:4WD:Ram:3500 |
| Description_ASC | Requires removal of Transfer case for clocking ring install for correct front driveline geometry. Does NOT Fit "Power Wagon" models Does NOT Fit air ride models Rear wheels may require additional dually wheel spacers to run 12.50in wide tire ONLY fits Diesel models Requires minor cutting. On vehicles equipped with a two piece driveshaft and carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing. Does NOT Fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission. |
| Description_ASC | Requires removal of Transfer case for clocking ring install for correct front driveline geometry. Does NOT fit 'Power Wagon' models Does NOT fit air ride models Rear wheels may require additional dually wheel spacers to run 12.50in wide tire ONLY fits Diesel models Requires minor cutting. On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing. Does Not fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission. |
| Description_ASM | 2019-2022:4WD:Ram:3500 |
| Description_ASM | 2019-2023:4WD:Ram:3500 |
| Description_ASM | Requires removal of Transfer case for clocking ring install for correct front driveline geometry. Does NOT fit "Power Wagon" models Does NOT fit air ride models Rear wheels may require additional dually wheel spacers to run 12.50in wide tire ONLY fits Diesel models Requires minor cutting. On vehicles equipped with a two piece driveshaft and carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing. Does NOT fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | Suspension Lift Kit |
| Description_EXT | 5 Inch Lift Kit - Diesel -AISIN - Ram 3500 4WD (2019-2023) |

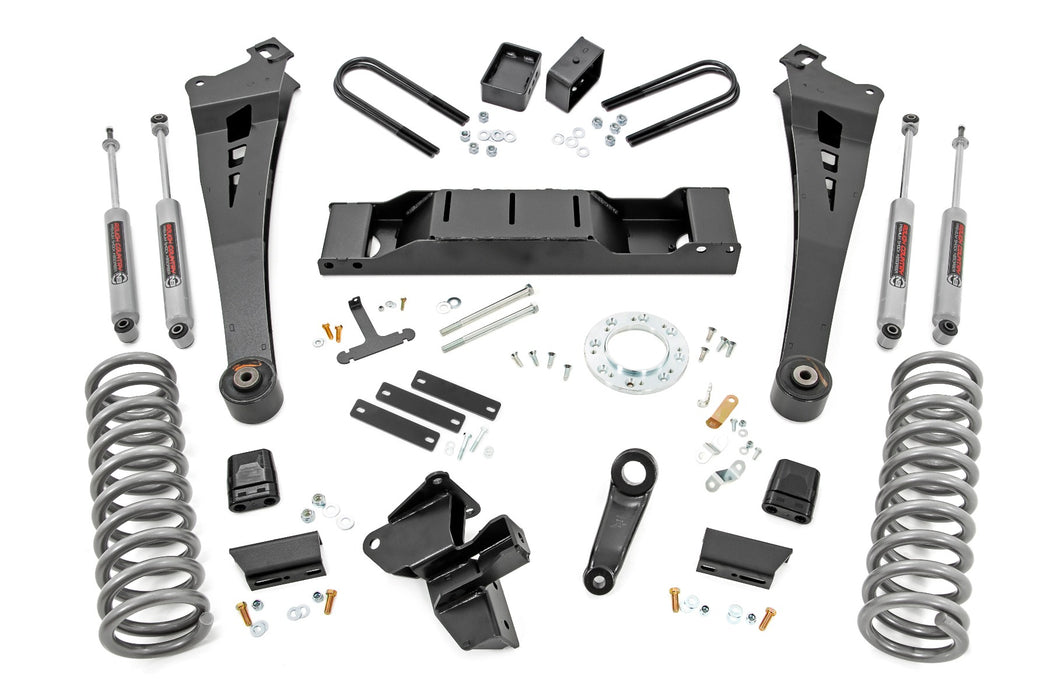

| Description_EXT | Lifted Coil springs Radius arms Track Bar bracket Transmission crossmember clocking ring Sway-bar brackets Pitman arm Carrier bearing shims Hardware; Rear lift blocks U-bolts Track bar bracket Sway-bar links Hardware |
| Description_EXT | Suspension Lift Kit; 5 in. Lift; Radius Arm; w/AISIN Transmission; |
| Description_FAB | Clevite Rubber Bushing For Maximum Vibration Absorption |
| Description_FAB | Incl. Application Valved N3 Series Shock Absorbers |
| Description_FAB | Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off,road use |
| Description_FAB | Increased Ground Clearance |
| Description_FAB | Increased ground clearance; Track bar bracket keeps the front axle properly centered; Radius Arms offer a more factory like angle and feature a durable, Clevite Rubber Bushings for maximum vibration absorption |
| Description_FAB | Radius Arms Offer A More Factory-like Angle And Feature A Durable |
| Description_FAB | Track Bar Bracket Keeps The Front Axle Properly Centered |
| Description_INV | Rough Country Suspension Lift Kit |
| Description_MKT | Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Lift Kit for dually models. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from! When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram. |
| Description_MKT | Compliment your RAM 3500s aggressive, good looks with Rough Countrys 5-inch Lift Kit for dually models. RAM Trucks come with a wealth of impressive features right from the factory. Rough Countrys new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where its needed most. The result is a lifted beast with a mean profile and lush ride-quality thatll make other RAM owners wonder where you got yours from! When changing a vehicles suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Countrys 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram. |
| Description_SHO | Lift Kit-Suspension |
| Description_SHO | Suspension Lift Kit |
| drive | 4WD |
| fuel_type | Diesel |
| height | 6.25 |
| installation_time | 6-8 hours |
| last_update | 2023-04-18 14:13:59 |
| length | 35.0 |
| Lift/Drop Height | 5 in. |
| lift_height | 5.0 inch |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| WARNING CA Proposition 65 | No |
| weight | 37.85 |
| width | 10.5 |
