Rough Country 19457 3.5 Inch GM Suspension Lift Kit w/Upper Control Arms Vertex w/V2 Shocks (07-16 1500 PU 4WD) Rough Country
SKU ds_DHTP_19457
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,133.38
-
Original price
$3,133.38
Original price
$3,133.38
$3,133.38
$3,133.38
-
$3,133.38
Current price
$3,133.38
Availability:
Out of stock
Description
This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality.
With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design.
Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
Features:
- 3.5 Inch GM Suspension Lift Kit w/Upper Control Arms Vertex w/V2 Shocks (07-16 1500 PU 4WD)
- Increased ground clearance.
- Can be returned to stock height!
- Differential drops maintain proper axle angle.
- Control arms include POM ball joints for greater range of motion and easier installation.
- Ball joints are pre-installed to ease installation.
- Rear fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
- Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
- This kit fits models with both cast steel or aluminum factory control arms
- Does Not fit models with factory stamped steel control arms
- Requires cutting and grinding
- New lift block replaces the factory equipped block.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
- Does Not fit AWD models.
- Does Not fit 2007 Classic/old body style models.
- Does Not fit GMC Denali models with Magnetic Ride Control.
- Retain your factory wheels with our 0.25 inch wheel spacers (part number 1065).
Resources
Installation InstructionsSpecifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/rough%20country%20asap.jpg |
| Description_ASC | 2007-2016:4WD:Chevy:Silverado 1500;2007-2016:4WD:GMC:Sierra 1500 |
| Description_ASC | Requires minor cutting and grinding New lift block replaces the factory equipped block. If truck is equipped with a mass damper on the front differential, the damper must be removed. Does NOT fit AWD models. Does NOT fit 2007 "Classic" models. Does NOT fit models with stock Stamped Steel control arms. Retain your factory wheels with our 0.25" wheel spacers (#1065). |
| Description_ASC | Requires minor cutting and grinding New lift block replaces the factory equipped block. If truck is equipped with a mass damper on the front differential, the damper must be removed. Does NOT fit AWD models. Does NOT fit 2007 Classic models. Does NOT fit models with stock Stamped Steel control arms. Retain your factory wheels with our 0.25in wheel spacers (#1065). |
| Description_ASM | 2007-2016:4WD:Chevy:Silverado 15002007-2016:4WD:GMC:Sierra 1500 |
| Description_ASM | 2007-2016:4WD:Chevy:Silverado 1500;2007-2016:4WD:GMC:Sierra 1500 |
| Description_ASM | Requires minor cutting and grinding New lift block replaces the factory equipped block. If truck is equipped with a mass damper on the front differential, the damper must be removed. Does NOT fit AWD models. Does NOT fit 2007 Classic models. Does NOT fit models with stock Stamped Steel control arms. Retain your factory wheels with our 0.25in wheel spacers (#1065). |
| Description_DEF | Suspension Lift Kit |
| Description_DES | Suspension Lift Kit w/Shock |
| Description_EXT | 3.5 Inch Lift Kit - Forged UCA - Vertex/V2 - Chevy/GMC 1500 (07-16) |
| Description_EXT | Suspension Lift Kit w/Shock; 3.5 in. Lift; Incl. Upper Control Arms; Vertex; w/V2 Shocks; |

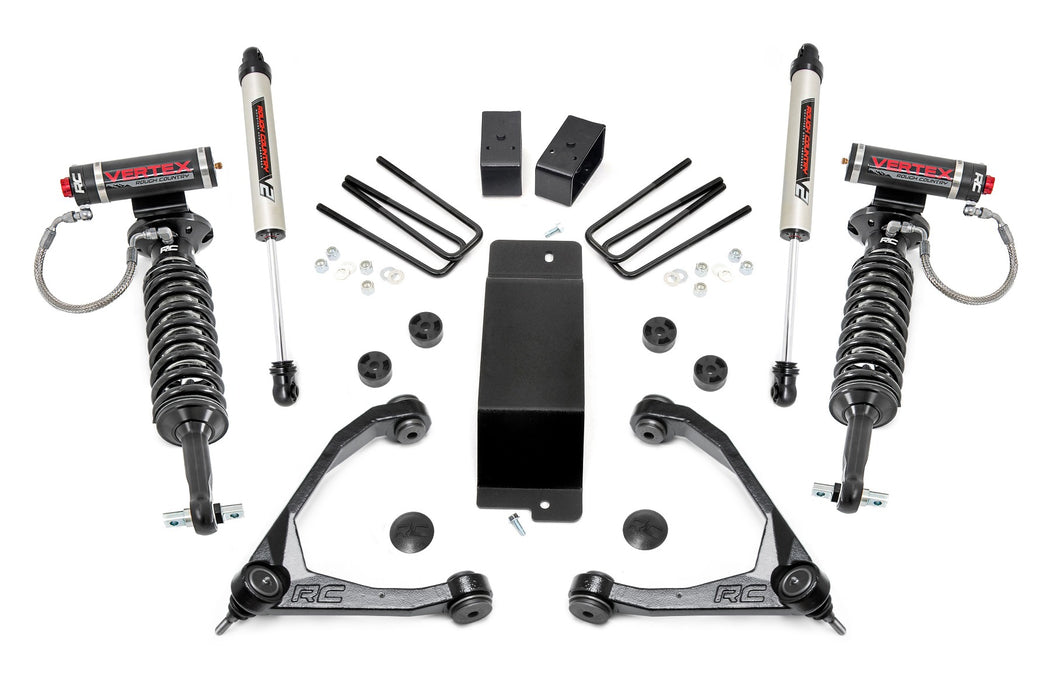

| Description_EXT | Vertex adjustable coilovers Forged upper control arms Upper MOOG ball joints Differential drop spacers Differential skid plate Hardware; 3in fabricated lift blocks U-bolts Hardware |
| Description_FAB | Ball Joints Are Pre-installed To Ease Installation |
| Description_FAB | Can Be Returned To Stock Height |
| Description_FAB | Control Arms Incl Pom Ball Joints |
| Description_FAB | Differential Drops Maintain Proper Axle Angle |
| Description_FAB | Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks; Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use |
| Description_FAB | Features Application Valved N3 Series Shock Absorbers |
| Description_FAB | Increased Ground Clearance |
| Description_FAB | Rear Fabricated Lift Blocks Are Stronger |
| Description_INV | Rough Country Suspension Lift Kit |
| Description_MKT | This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium Vertex adjustable shocks! This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. This kit also includes Rough Country's Performance Vertex coilovers for improved tire contact with the road and increased stability and performance. These struts are engineered to fit perfectly on each intended application, and feature a pre-installed coil spring for easy installation without the need for strut disassembly. Simply remove your factory strut and replace with this easy, convenient system. The result is an increased ride height that mimics the factory responsiveness and handling of the OE strut. |
| Description_MKT | This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium Vertex adjustable shocks!This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. This kit also includes Rough Country's Performance Vertex coilovers for improved tire contact with the road and increased stability and performance.These struts are engineered to fit perfectly on each intended application, and feature a pre-installed coil spring for easy installation without the need for strut disassembly. Simply remove your factory strut and replace with this easy, convenient system. The result is an increased ride height that mimics the factory responsiveness and handling of the OE strut. |
| Description_MKT | This all-inclusive kit comes with several fantastic features - all at a price thatll leave plenty of room for new tires and wheels! This kit includes Rough Countrys premium Vertex adjustable shocks!This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. This kit also includes Rough Countrys Performance Vertex coilovers for improved tire contact with the road and increased stability and performance.These struts are engineered to fit perfectly on each intended application, and feature a pre-installed coil spring for easy installation without the need for strut disassembly. Simply remove your factory strut and replace with this easy, convenient system. The result is an increased ride height that mimics the factory responsiveness and handling of the OE strut. |
| Description_SHO | LftKt-Suspw/Shock |
| Description_SHO | Suspension Lift Kit |
| drive | 4WD |
| height | 8.5 |
| Install Time | 4-5 hours |
| installation_time | 4-5 hours |
| last_update | 2023-04-18 14:14:02 |
| length | 32.3 |
| Lift/Drop Height | 3.5 in. |
| lift_height | 3.5 inch |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Rear Kit Components | 3in fabricated lift blocks U-bolts Hardware |
| Series | Vertex|V2 |
| sold_as | Kit |
| Tire & Wheel Size Combinations | 2007-2016:4WD:Chevy:Silverado 1500;2007-2016:4WD:GMC:Sierra 1500 |
| Title | 3.5 Inch Lift Kit - Forged UCA - Vertex/V2 - Chevy/GMC 1500 (07-16) |
| Title | 3.5in GM Suspension Lift Kit w/ Upper Control Arms; Vertex w/ V2 Shocks (07-16 1500 PU 4WD) |
| Universal | No |
| vehicle_type | Truck/SUV |
| WARNING CA Proposition 65 | No |
| weight | 37.4 |
| width | 11.8 |
