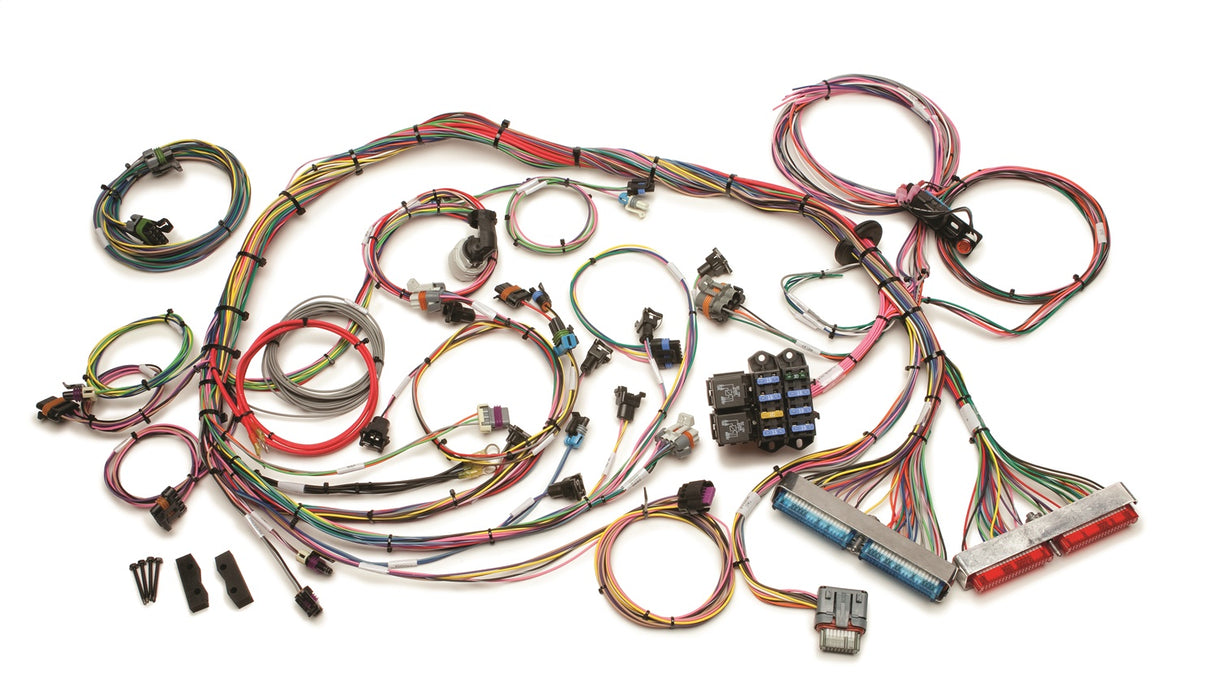

Painless Wiring 60522 Fuel Injection Wiring Harness
SKU ds_DHDT_60522
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,065.36
-
Original price
$1,065.36
Original price
$1,065.36
$1,065.36
$1,065.36
-
$1,065.36
Current price
$1,065.36
Availability:
Only 3 left!
Description
This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E automatic or T56 manual transmission. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. The Fuse Block Protects The Following Circuits: DLC B+, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM and Malfunction Indicator Lamp, ECM B+, Transmission. This harness includes connections for the following components: Alternator , Brake Switch, Cam Position Sensor, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Gear Indicator Switch, Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Intake Air Temperature Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor, ECM, Reverse Lockout Solenoid , Skip Shift Light , Skip Shift Solenoid , Starter ,Tachometer, Throttle Position Sensor, Transmission, VATS, Vehicle Speed Sensor. VSS Output for Speedometer.
Specifications
| Description_ASC | 1997-2004 GM LS1 Throttle by Wire Harness Std. length |
| Description_DES | Fuel Injection Wiring Harness |
| Description_EXT | Fuel Injection Wiring Harness; Throttle By Wire; Standard Length; 8 Fuses w/2 Ignition/1 Fuel Pump Relay; |
| Description_FAB | Comprehensive Instructions And Tech Support |
| Description_FAB | Drive By Wire Throttle Body Applications |
| Description_FAB | Factory Style Connectors For All Required Sensors |
| Description_FAB | Guaranteed For Life |
| Description_FAB | Includes Ground Activation Wires For 2 Cooling Fans |
| Description_FAB | Includes VSS Output Wire For Speedometer |
| Description_FAB | Will Control 4L60E/4L80E Transmission |
| Description_LAB | Proposition 65 |
| Description_MKT | This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E automatic or T56 manual transmission. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. The Fuse Block Protects The Following Circuits: DLC B+, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM and Malfunction Indicator Lamp, ECM B+, Transmission. This harness includes connections for the following components: Alternator , Brake Switch, Cam Position Sensor, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Gear Indicator Switch, Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Intake Air Temperature Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor, ECM, Reverse Lockout Solenoid , Skip Shift Light , Skip Shift Solenoid , Starter ,Tachometer, Throttle Position Sensor, Transmission, VATS, Vehicle Speed Sensor. VSS Output for Speedometer. |
| Description_SHO | FuelInjWireHrns |
| height | 5.25 |
| length | 14.5 |
| LTL | N |
| weight | 9.25 |
| width | 10.25 |
