Oracle Lighting V5241-001 9007 VSeries LED Headlight Bulb Conversion Kit, 6000K
SKU ds_FQCV_V5241-001
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $21.39
Original price
$272.13
Original price
$272.13
-
Original price
$272.13
Original price
$272.13
Current price
$250.74
$250.74
-
$250.74
Current price
$250.74
Description

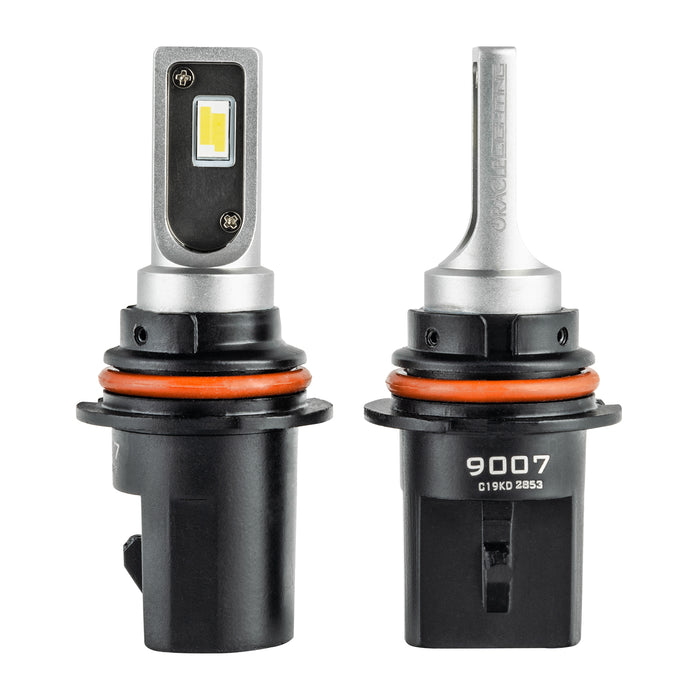

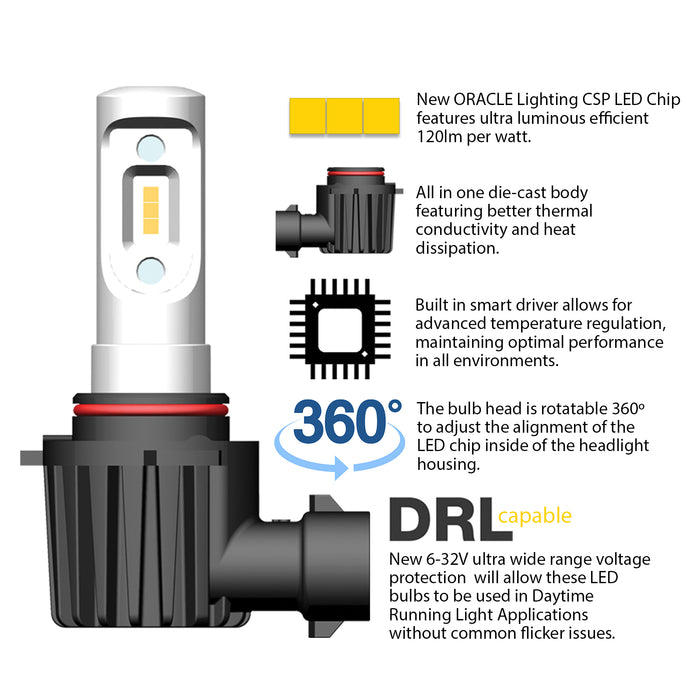

The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened.
Specifications
| Add-On | N/A |
| Brightness | 3,600 Lumens |
| Bulb Type | 9007 |
| Description_ASM | Universal |
| Description_DEF | Headlight Bulb Set |
| Description_DES | 9007 VSeries LED Headlight Bulb Conversion Kit, 6000K |
| Description_EXT | The new all-in-one diecast body design is direct replacement to factory bulb. Thus no additional wiring or external drivers needed to install. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. |
| Description_FAB | Physically matches original bulb for OEM fitment and easy DIY installation |
| Description_INV | Oracle - Bulbs - V5241-001 |
| Description_MKT | The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened. |
| Description_SHO | Bulbs |
| DRL Compatible | Yes |
| height | 5.0 |
| Kelvin Temperature | 6000K |
| length | 3.0 |
| LTL | N |
| Power Draw | 17W |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 - Warning | Warning - Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No | Yes |
| Title | V5241-001 - Headlight Bulb Set |
| Voltage | 6-32V DC |
| weight | 1.0 |
| width | 5.0 |
