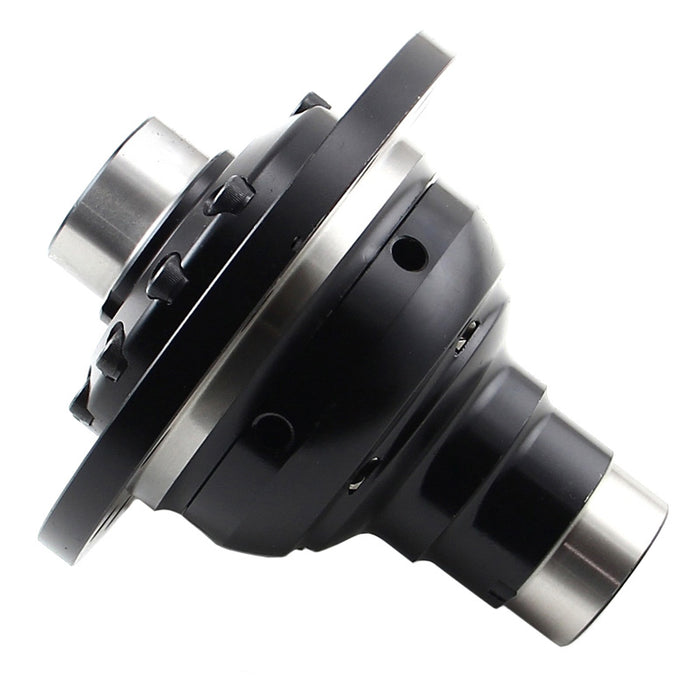

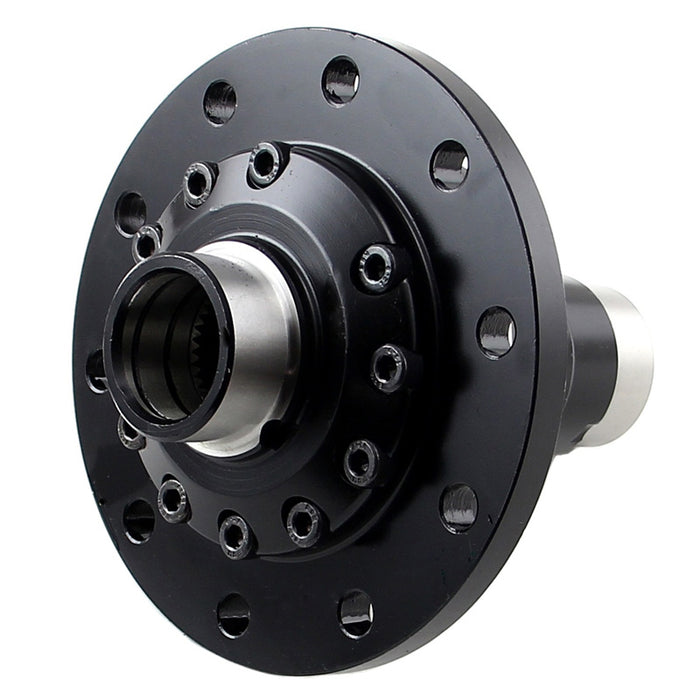

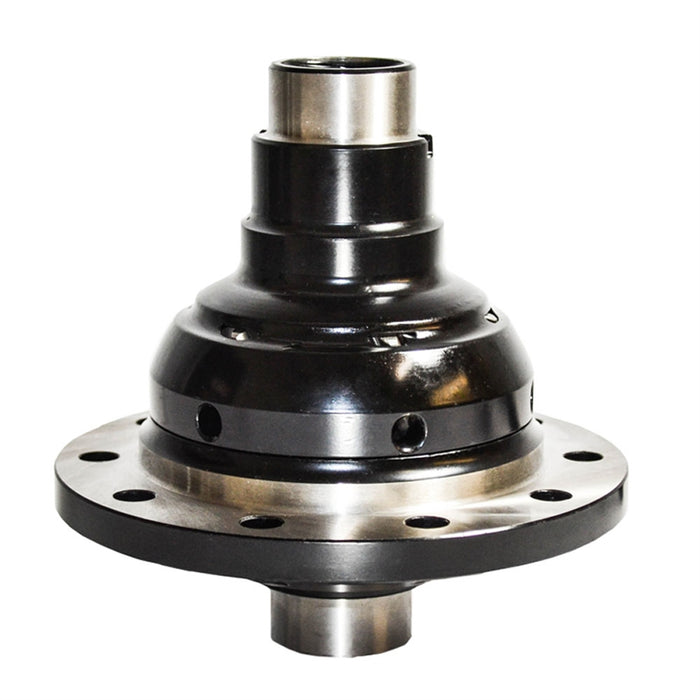

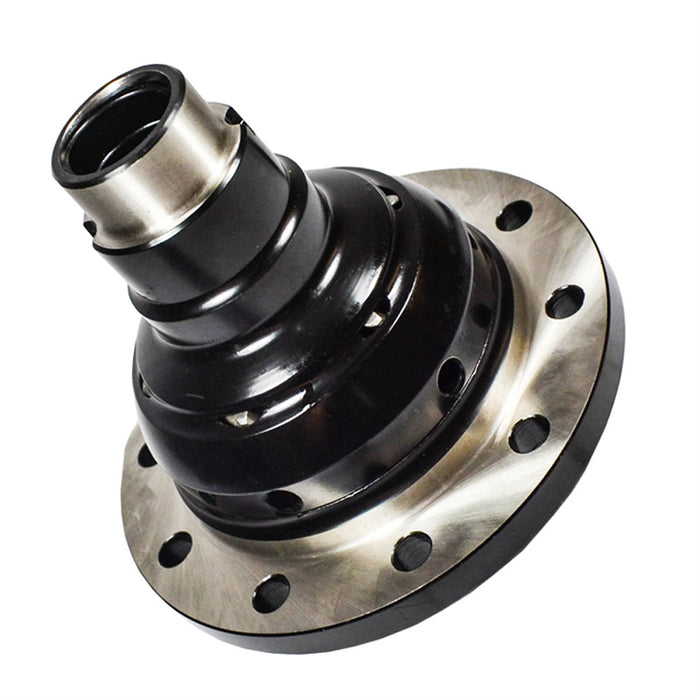

Nitro Gear & Axle TORS-F9-35 Ford 9 Inch Nitro Worm Gear Posi 35 Spline Nitro Gear & Axle
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
You'll want to check out this article on Overland Journal/Expedition Portal about the benefits of installing a Nitro locker.
The Nitro Helical Worm Gear is a torque-sensitive mechanical limited-slip differential that uses worm gears and spur gears to dispense and distinguish input power between two drive wheels or front and back axles.
This is a completely separate design from the common beveled spider gear designs seen in most of the automotive industry.
Just like any LSD, the Nitro Helical Worm Gear functions as a standard or open differential under normal driving conditions, allowing one wheel to spin faster or slower as necessary.
When a wheel experiences a loss of traction, the gear separation forces start to take effect and distributes the torque to the high-traction wheel by increasing the helical-shaped gears mesh force until wheel spin is reduced or entirely stopped. Once the vehicle exits the low traction condition, the differential resumes normal operation.
What's nice about the operation of a Nitro Helical Worm Gear LSD, is its characteristics; smooth, quiet and automatic. This LSD will engage without any driver awareness or require any action.
It also has no wearable components and requires no maintenance, producing less time on the rack and more on the road.
Details;
- Differential: Ford 9 inch Rear
- Gear Ratio: All
- Axle Splines: 35
- Ring Gear Bolts: 10 (not included)
- Manufacturer: Nitro Gear and Axle
- Warranty: 1 Year
- Ford 9 inch 35 Spline
- Nitro Helical Worm Gear Limited-Slip Differential
Fits:
1966-1986 Ford Bronco
1968-1983 Ford E-100 1/2 Ton
1979-1988 Ford E-150 1/2 Ton
1968-1974 Ford E200 3/4 Ton
1957-1983 Ford F-100 1/2 Ton
1968-1987 Ford F-150 1/2 Ton
1957-1971 Ford Fairlane
1960-1970 Ford Falcon
1959-1974 Ford Galaxie
1975-1979 Ford Granada
1965-1979 Ford LTD
1970-1978 Ford Maverick
1965-1973 Ford Mustang
1957-1979 Ford Ranchero
1955-1979 Ford Thunderbird
1968-1976 Ford Torino / Grand Torino
1968-1971 Lincoln Mark III
1964-1977 Mercury Comet
1967-1979 Mercury Cougar
1975-1980 Mercury Grand Marquis
Specifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Nitro%202018%20SF%20BLK.png |
| height | 10.0 |
| last_update | 2023-01-01 09:20:53 |
| length | 9.5 |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| sold_as | Each |
| Universal | No |
| vehicle_type | Truck/SUV |
| weight | 25.0 |
| width | 9.75 |
