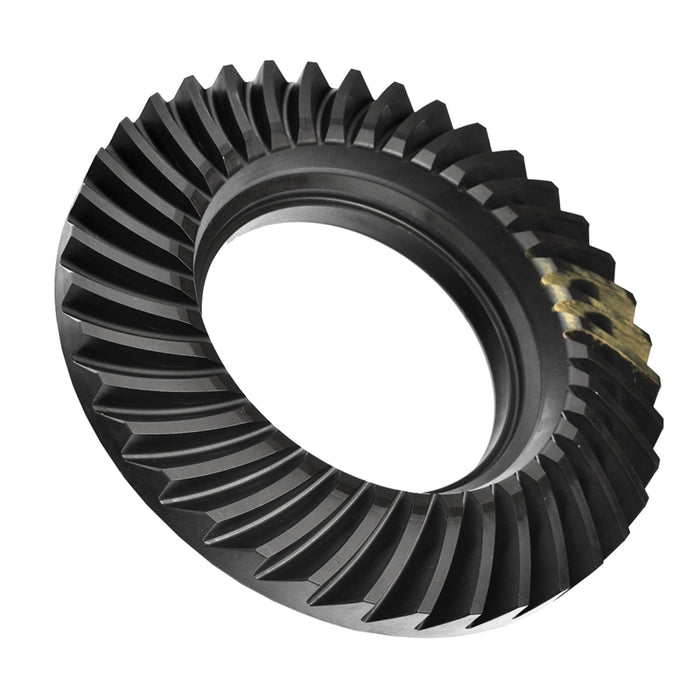

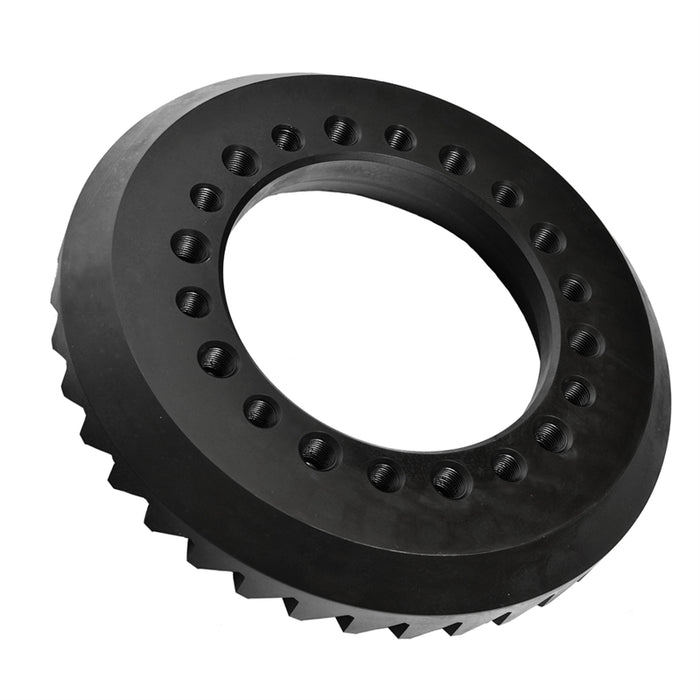

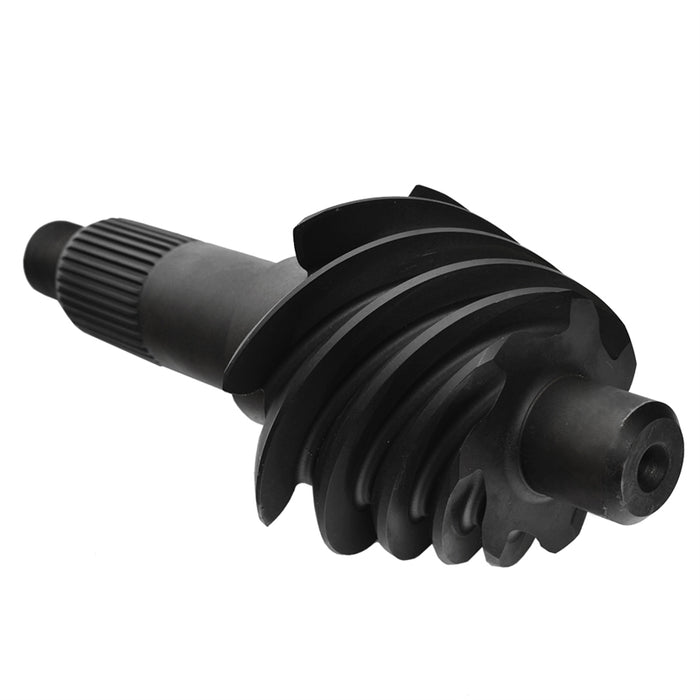

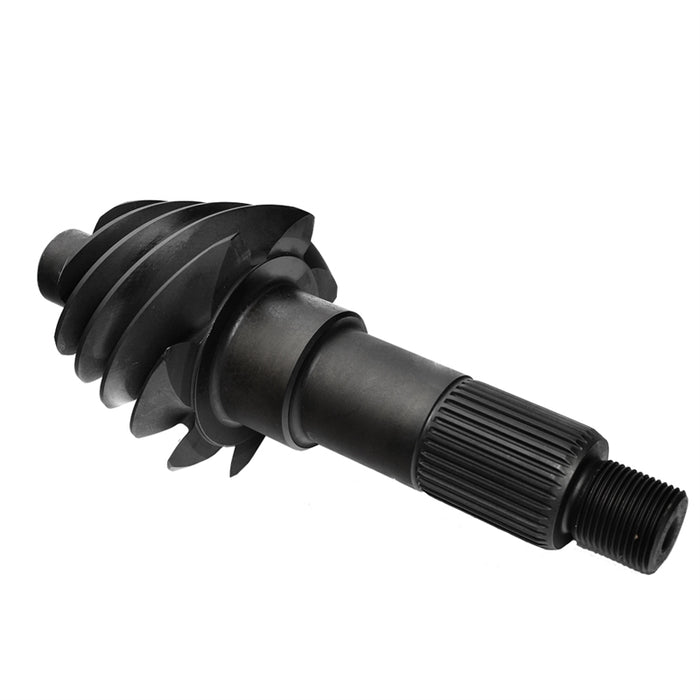

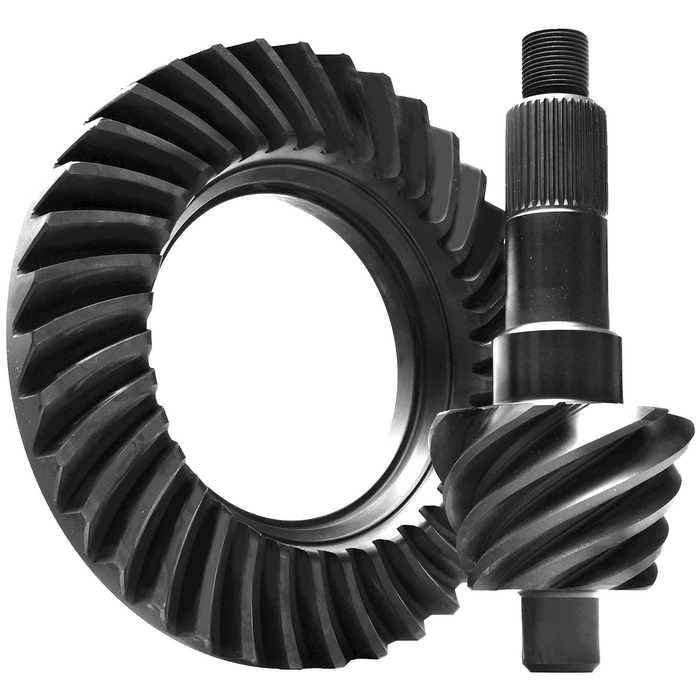

Nitro Gear & Axle F10R-514R-NG Ford 10 Inch Reverse Shot Peened 5.14 Ring and Pinion Nitro Pro Nitro Gear And Axle
SKU ds_FSJK_F10R-514R-NG
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,561.21
-
Original price
$1,561.21
Original price
$1,561.21
$1,561.21
$1,561.21
-
$1,561.21
Current price
$1,561.21
Availability:
Out of stock
Description
These 10 inch Nitro Pro Gears are manufactured from 9310 forgings for maximum strength in competition/race vehicles. These gears are not intended for daily driven vehicles as they have a shorter life span relating to their wear characteristics.
Tech notes:
- Works with Gear Works High Pinion 10 inch and Mega Hi9
- 9.5/10 inch Nitro Pro Gears generally require an aftermarket housing with sufficient clearance for the larger diameter ring gear.
- An aftermarket yoke will be required as these gears use a larger 35 spline pinion shaft than a standard 9 inch gearset
- A different pinion support and bearings are needed to work with the larger diameter pinion shaft.
- The cut on these gears is engineered for maximum strength and often these gears will run with significant noise compared with a traditional 9 inch gearset. This is normal for these gears as they are intended for competition use.
- Warranty: Pro Gears are intended for Racing Fits and do not have a warranty as a result.
Details:
- Differential: Ford 10 Inch
- Gear Ratio: 5.14
- Tooth Count: 36/7
- Pinion Splines: 35
- Ring Gear Bolts: 10 - Dual Drilled
Specifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Nitro%202018%20SF%20BLK.png |
| color_l | Black |
| height | 5.5 |
| last_update | 2023-02-22 13:58:20 |
| last_update | 2023-04-26 04:12:27 |
| length | 15.5 |
| LTL | N |
| material_l | 9310 Steel |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| ratio | 5.14 Ratio |
| sold_as | Set |
| Universal | No |
| vehicle_type | Truck/SUV |
| weight | 25.0 |
| width | 11.0 |
