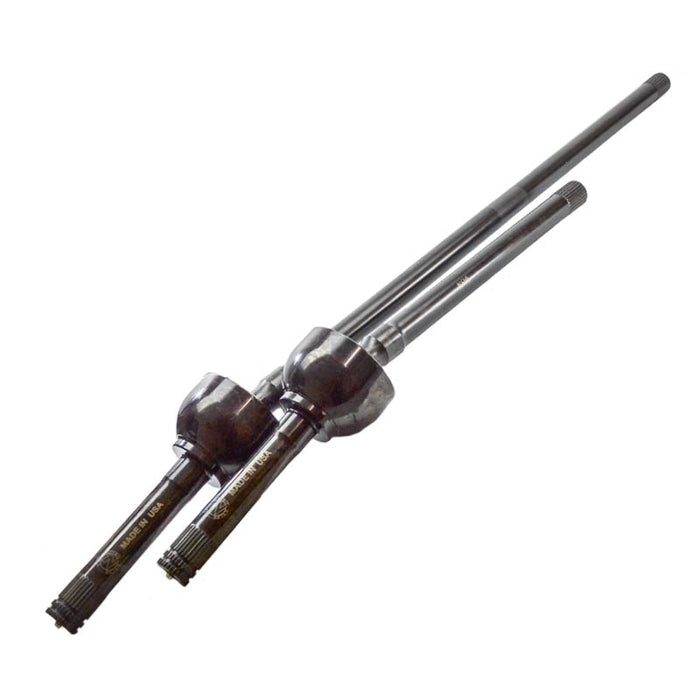

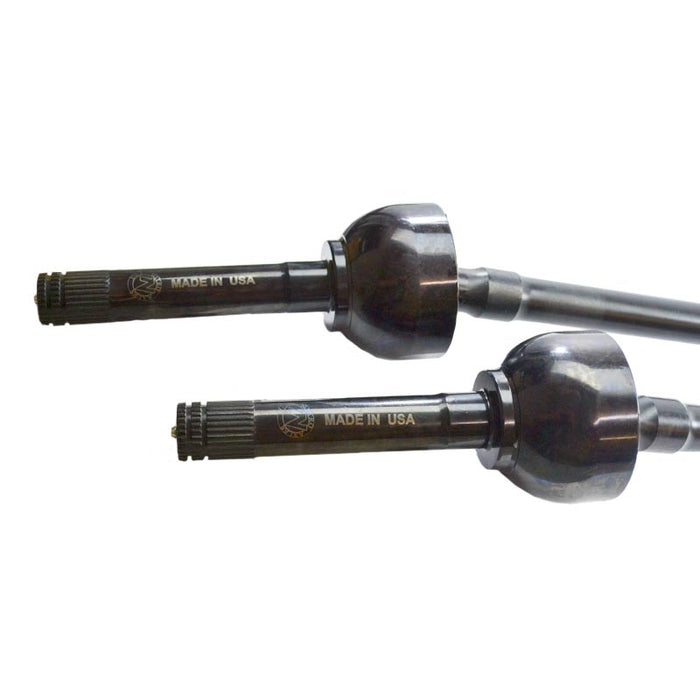

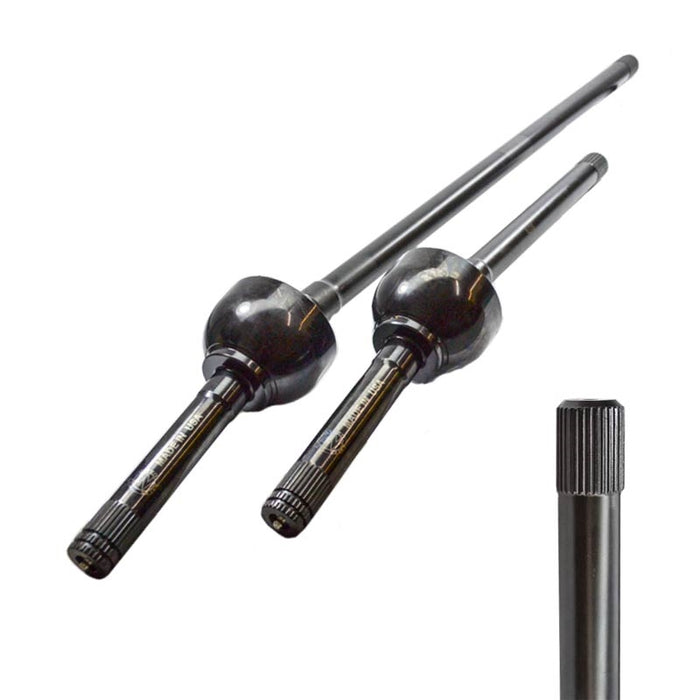

Nitro Gear & Axle AXTBIRF-80KIT Toyota Land Cruiser Axle Kit 80 Series 30/24big/30 Spline Front Chromoly Nitro Gear and Axle
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Nitro 80 Series Heavy Duty Chromoly Birfield 30/30 Kits are designed to offer a significant increase in strength over the OEM CV joints, yet remain compatible with OEM components and at fraction of the cost. This kit is a complete solution to upgrade from your worn OEM CV joints and axles. A great addition if you have fitted larger tires, added accessories and use your Land Cruiser off-road. Because they are specially formulated for strength these joints are able to withstand increased shock loading, they just will not outlast standard replacement joints, but they will outlast the competitions chromoly Birfield joints due to the harder bearings and cage which provide more wear resistance. These HD axles boast high-strength chromoly material featuring State of the art machining, heat-treating and polishing processes for uniformity and increased strength. Fully compatible with factory or aftermarket carriers and lockers.
Details:
- Toyota Land Cruiser, 80 Series, 30/24(Big) Spline, Front Outer, Nitro 4340 Chromoly Birfield Axle Kit
- Made From 4340 Chromoly Steel
- Harder bearings and cage than competing brands
- Fits ABS and Non-ABS Models
- Dual snap-ring grooves for drive flange or manual hubs
- Compatible with OEM and aftermarket carriers and lockers
- Differential: Toyota
- Inner Axle Spline: 30
- CV Splines: BIG 24
- Axle Type: Birfield Outer
- Manufacturer: Nitro Gear and Axle
- Warranty: Lifetime
- Sold As A Kit (Both Sides)
Kit includes:
- Birfield Joints x2
- RH Inner axles x1
- LH Inner Axle x1
Tech Note:
- 1991-1994 Models require the stronger TOY43421-60040 1995-1997 type drive flanges
- Will work with manual hubs, but may require trimming end
- Dual snap-ring grooves for drive flange or manual hubs
- Fits both ABS and Non-ABS vehicles
- Birfield Repair Kit AXREBCVJ
Fits Vehicles:
- 1991-1997 Toyota Land Cruiser 80 Series FZJ80, HDJ80, HDJ81, HZJ80
- 1991-2007 Toyota Burbuja and Autana (Venezuela built 80 Series Landcruiser)
- 1998-2007 Toyota Land Cruiser 105 Series FZJ105, HZJ105
Specifications
| axle_type | Birfield Assemblies |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Nitro%202018%20SF%20BLK.png |
| height | 8.75 |
| Includes | Birfield Joints x2, RH Inner axles x1, LH Inner Axle x1 |
| last_update | 2023-02-22 15:04:01 |
| length | 38.0 |
| Location | Front |
| LTL | N |
| material_l | 4340 Chromoly Steel |
| mfg_label | Axle Kits |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| Warranty | Lifetime |
| weight | 40.0 |
| width | 8.38 |
