MSD 89612 Universal Relay
by MSD
SKU ds_BCCX_89612
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$106.38
-
Original price
$106.38
Original price
$106.38
$106.38
$106.38
-
$106.38
Current price
$106.38
Availability:
Out of stock
Description

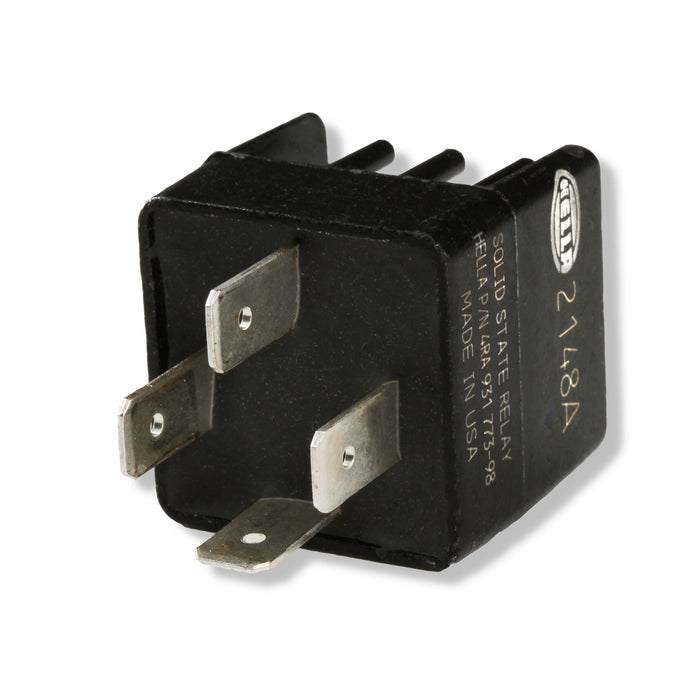

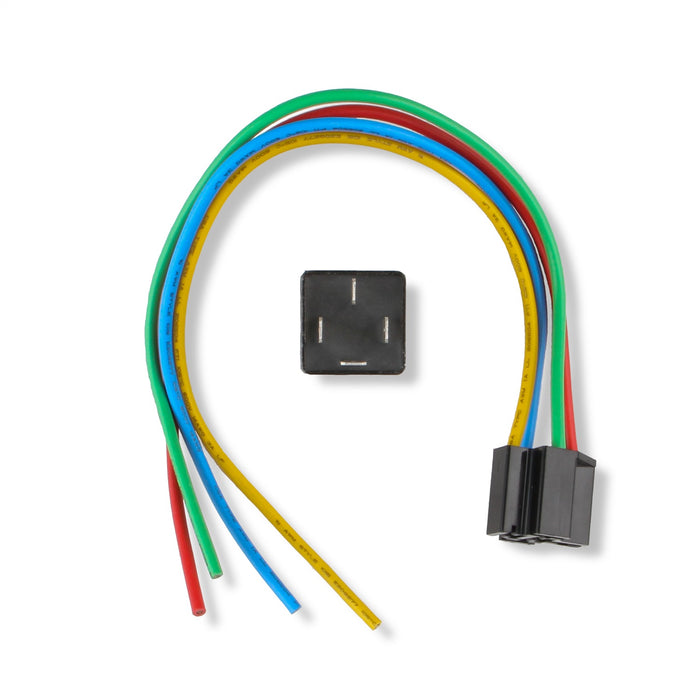

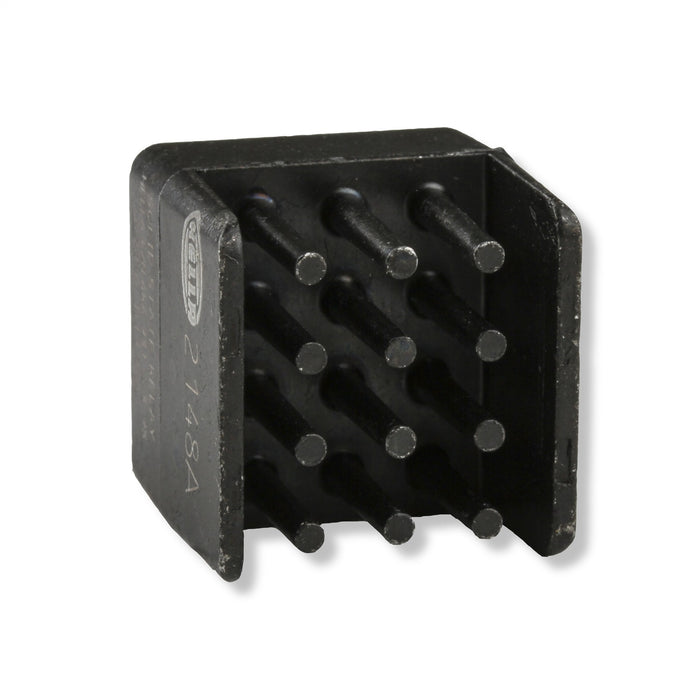

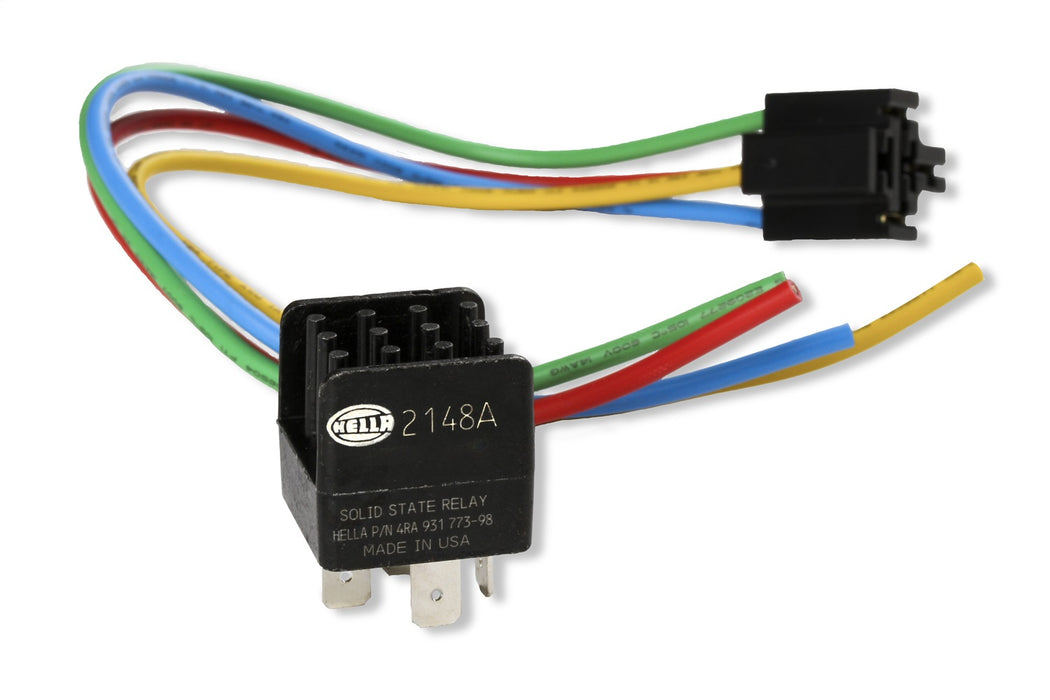

MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire. The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture.
Specifications
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Multi-Purpose Relay |
| Description_DES | Universal Relay |
| Description_EXT | Universal Relay; SPST Normally Open; High-Powered Controlled Circuit; 30 Amp Momentary/20 Amp Continuous At 12VDC; Pigtail w/11 in. L Leads; HD 14 Ga. Wire; |
| Description_FAB | Continuous Load- 20A |
| Description_FAB | Max Coil Voltage 16V |
| Description_FAB | Max Inrush Load- Overload Protected At 80A |
| Description_FAB | Mini Solid State Relay |
| Description_FAB | Nominal Voltage 12V |

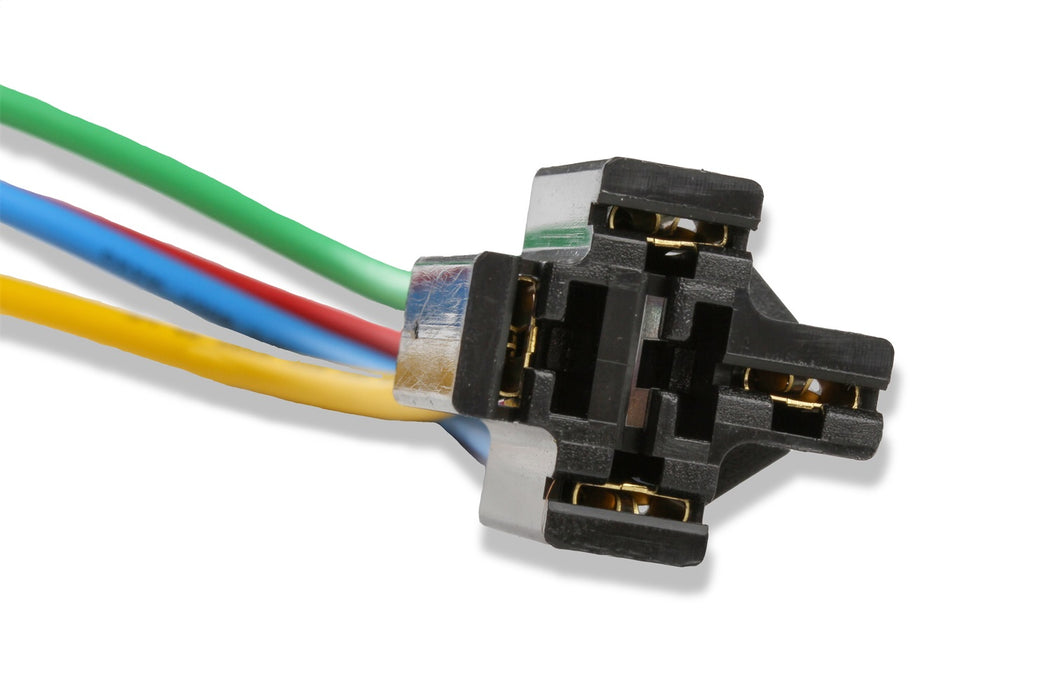

| Description_FAB | Pigtail Harness 14 AWG Wires; 11 in. Long |
| Description_FAB | SPST Normally Open |
| Description_INV | MSD Solid State N/O Relay w/Sckt Harness |
| Description_LAB | Proposition 65 |
| Description_MKT | MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11 in. long leads w/ heavy-duty 14-gauge wire. The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture. |
| Description_MKT | MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire. The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture. |
| Description_SHO | Universal Relay |
| height | 1.55 |
| length | 7.85 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 0.29 |
| width | 6.05 |
