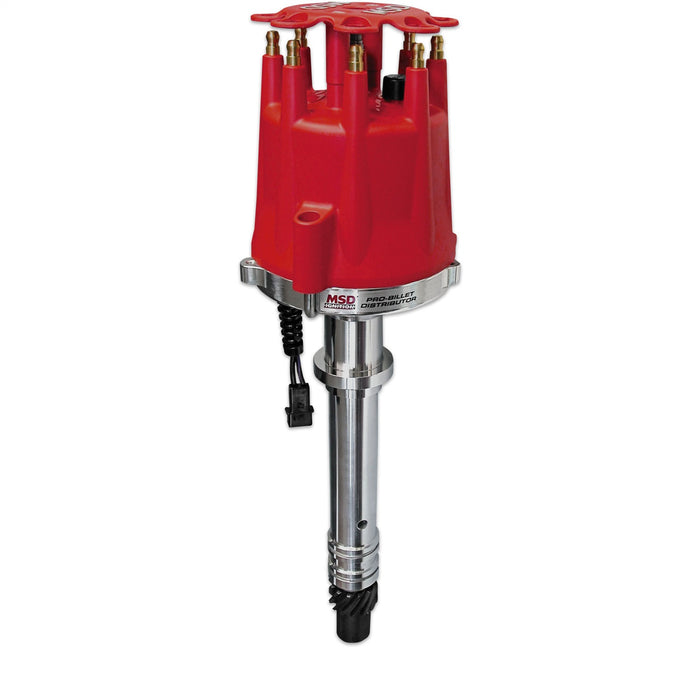

MSD 8597 Pro-Billet Distributor
by MSD
SKU ds_BCCX_8597
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$972.22
-
Original price
$972.22
Original price
$972.22
$972.22
$972.22
-
$972.22
Current price
$972.22
Availability:
Only 4 left!
Description
Starting on the inside, a 0.500 In. oversized steel shaft spins in a sealed ball bearing and sintered bushing for long endurance and accurate spark delivery throughout the entire RPM range. Mounted on top of the shaft is an easy-to-adjust chromoly mechanical advance assembly. Different advance springs and stop bushings are supplied so you can choose from 24 curves. A maintenance-free magnetic pick-up provides accurate trigger signals to your MSD Ignition control. A precision-manufactured reluctor that is connected to the shaft is responsible for triggering the pick-up. The distributor is topped off with a high quality black cap and race rotor.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASC | The Pro-Billet Standard distributor has a 2 pin magnetic pick up and requires a MSD ignition control. The Ready To Run distributor has a 3 pin connector and does not require an external ignition box. The Ready to Run model has an ignition module built in. |
| Description_DES | Pro-Billet Distributor |
| Description_EXT | Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Even-Fire; Iron Gear; |
| Description_FAB | Advance plate and weights are fine blanked from chrome moly steel |
| Description_FAB | Advance weight pins are staked and tig welded to the plate |
| Description_FAB | CNC machined billet aluminum housing and billet aluminum base |
| Description_FAB | Mech. advance assem. can be locked out for crank trigger systems |
| Description_FAB | Must Be Used w/An MSD Ignition Control |
| Description_FAB | Nylon pads ensure smooth operation of the advance weights |
| Description_FAB | O-ring seals can be installed for oil press. control (Mods only) |
| Description_FAB | QPQ coated for friction reduction |
| Description_FAB | QPQ coated polished steel shaft; guided by sealed ball bearings |
| Description_FAB | Special oil tract improves lubrication to the dist./cam gear |
| Description_FAB | Supplied w/Socket Style Distributor Cap And Rotor |
| Description_FAB | Will not accept a vacuum advance canister |
| Description_INV | Distributor; Billet; Chevy V6 Even-Fire |
| Description_LAB | Proposition 65 |
| Description_MKT | Starting on the inside, a 0.500 In. oversized steel shaft spins in a sealed ball bearing and sintered bushing for long endurance and accurate spark delivery throughout the entire RPM range. Mounted on top of the shaft is an easy-to-adjust chromoly mechanical advance assembly. Different advance springs and stop bushings are supplied so you can choose from 24 curves. A maintenance-free magnetic pick-up provides accurate trigger signals to your MSD Ignition control. A precision-manufactured reluctor that is connected to the shaft is responsible for triggering the pick-up. The distributor is topped off with a high quality black cap and race rotor. |
| Description_SHO | Distributor |
| height | 7.0 |
| length | 17.6 |
| LTL | N |
| weight | 4.3 |
| width | 7.1 |
