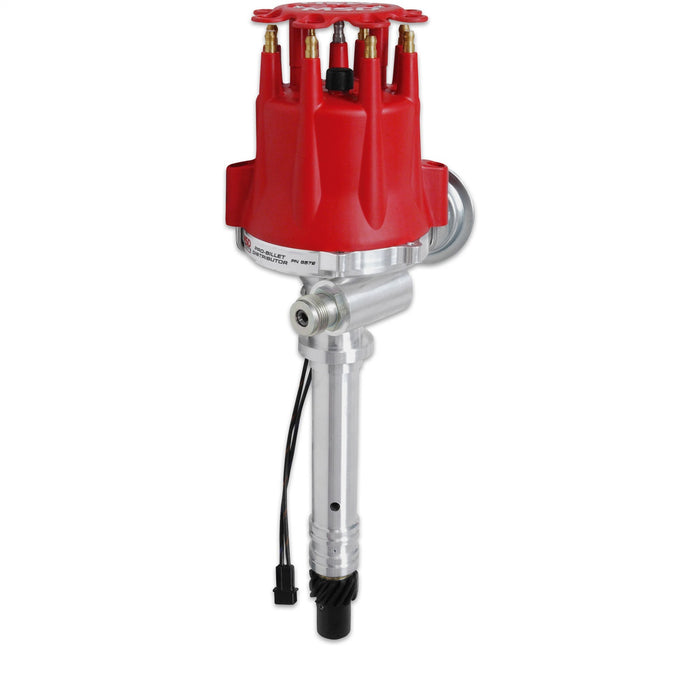

MSD 8572 Tach Drive Distributor
by MSD
SKU ds_BCCX_8572
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,104.49
-
Original price
$1,104.49
Original price
$1,104.49
$1,104.49
$1,104.49
-
$1,104.49
Current price
$1,104.49
Availability:
4+ in stock
Description
Corvette owners can now replace their worn out magna-pulse distributors with this precision pro-billet tach drive distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages. Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500 inch steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up. An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application. The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASC | The Pro-Billet Standard distributor has a 2 pin magnetic pick up and requires a MSD ignition control. The Ready To Run distributor has a 3 pin connector and does not require an external ignition box. The Ready to Run model has an ignition module built in. |
| Description_DES | Tach Drive Distributor |
| Description_EXT | Tach Drive Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Pro-Billet w/Vacuum Advance; Iron Gear; |
| Description_FAB | CARB E.O. Approved |
| Description_FAB | Same Features As PN[8571] w/The Addition Of A Vacuum Advance |
| Description_INV | Distributor;Corvette V8;Tach Drv w/Vac |
| Description_LAB | Proposition 65 |
| Description_MKT | Corvette owners can now replace their worn out magna-pulse distributors with this precision pro-billet tach drive distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages. Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500 inch steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up. An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application. The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication. |
| Description_SHO | Distributor |
| height | 6.9 |
| length | 18.2 |
| LTL | N |
| weight | 5.0 |
| width | 7.1 |
