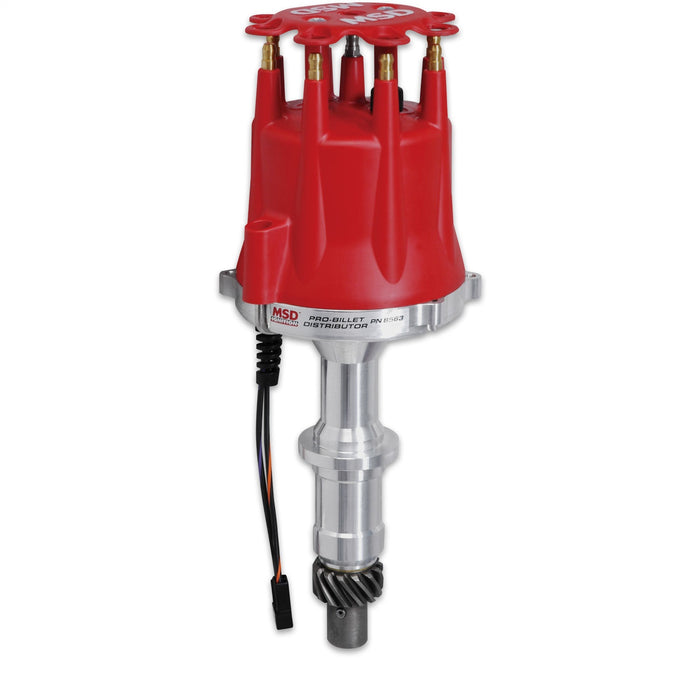

MSD 8563 Pro-Billet Distributor
by MSD
SKU ds_BCCX_8563
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$767.21
-
Original price
$767.21
Original price
$767.21
$767.21
$767.21
-
$767.21
Current price
$767.21
Availability:
4+ in stock
Description
The Pro-Billet Y-Block Distributor is built around a CNC-machined billet aluminum housing that is fit with a sealed ball bearing guide for stability and endurance. From timing accuracy, a maintenance-free magnetic pickup reliably triggers the MSD Ignition Control.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASC | The Pro-Billet Standard distributor has a 2 pin magnetic pick up and requires a MSD ignition control. The Ready To Run distributor has a 3 pin connector and does not require an external ignition box. The Ready to Run model has an ignition module built in. |
| Description_DES | Pro-Billet Distributor |
| Description_EXT | Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; w/o Vacuum Advance; Pontiac V8; Iron Gear; |
| Description_FAB | Advance plate and weights are fine blanked from chrome moly steel |
| Description_FAB | Advance weight pins are staked and tig welded to the plate |
| Description_FAB | CNC Machined Billet Alum. Housing and Billet Alum. Base |
| Description_FAB | Maintenance-free magnetic pickup and precision reluctor |
| Description_FAB | Mech. advance assem. can be locked out for crank trigger systems |
| Description_FAB | Must Be Used w/An MSD Ignition Control |
| Description_FAB | No CARB Exemption Order Number |
| Description_FAB | Nylon pads ensure smooth operation of the advance weights |
| Description_FAB | QPQ coated for friction reduction |
| Description_FAB | QPQ coated polished steel shaft; guided by sealed ball bearings |
| Description_FAB | Supplied w/HEI style distributor cap/rotor (accepts Cap-A-Dapts) |
| Description_FAB | Will not accept a vacuum advance canister |
| Description_INV | Pontiac Dist.; V8; 350; 455 |
| Description_LAB | Proposition 65 |
| Description_MKT | The Pro-Billet Y-Block Distributor is built around a CNC-machined billet aluminum housing that is fit with a sealed ball bearing guide for stability and endurance. From timing accuracy, a maintenance-free magnetic pickup reliably triggers the MSD Ignition Control. |
| Description_SHO | Distributor |
| Distributor Type | HEI/Breakerless |
| Engine Make/Size | Pontiac V8 |
| height | 6.9 |
| length | 17.6 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 4.05 |
| width | 7.2 |
