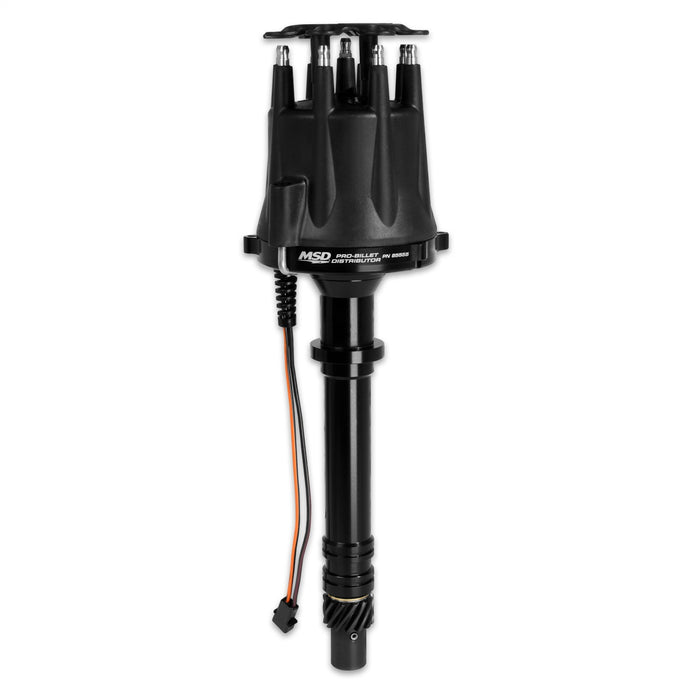

MSD 85555 Pro-Billet Distributor
by MSD
SKU ds_BCCX_85555
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $33.28
Original price
$571.93
Original price
$571.93
-
Original price
$571.93
Original price
$571.93
Current price
$538.65
$538.65
-
$538.65
Current price
$538.65
Availability:
4+ in stock
Description
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
Resources
Installation InstructionsSpecifications
| Color | Black |
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Distributor |
| Description_DES | Pro-Billet Distributor |
| Description_EXT | Pro-Billet Distributor; Fits Chevy V8 Engines; Must Be Used w/MSD 6/7/8 Series Ignitions; Black; |
| Description_FAB | Advance plate and weights are fine blanked from chrome moly steel |
| Description_FAB | Advance weight pins are staked and tig welded to the plate |
| Description_FAB | CNC machined billet aluminum housing and billet aluminum base |
| Description_FAB | Mech. advance assem. can be locked out for crank trigger systems |
| Description_FAB | Must Be Used w/An MSD Ignition Control |
| Description_FAB | Nylon pads ensure smooth operation of the advance weights |
| Description_FAB | O-ring seals can be installed for oil press. control (Mods only) |
| Description_FAB | QPQ coated for friction reduction |
| Description_FAB | QPQ coated polished steel shaft; guided by sealed ball bearings |
| Description_FAB | Special oil tract improves lubrication to the dist./cam gear |
| Description_FAB | Supplied w/HEI style distributor cap/rotor (accepts Cap-A-Dapts) |
| Description_FAB | Will Not Accept Vacuum Advance Canister |
| Description_INV | MSD Black Distr.; Chevy V8;Pro-Billet |
| Description_LAB | Proposition 65 |
| Description_MKT | The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500 in. steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition. |
| Description_MKT | The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition. |
| Description_SHO | Distributor |
| Distributor Type | Magnetic Pickup |
| Engine Make/Size | Chevy V8 |
| height | 7.0 |
| length | 18.7 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 5.38 |
| width | 6.8 |
