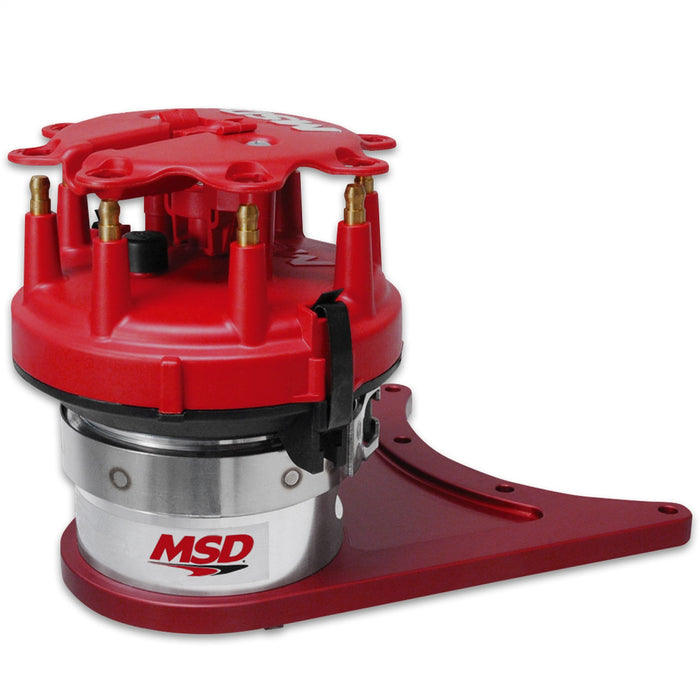

MSD 8510 Pro-Billet™ Front Drive Distributor
by MSD
SKU ds_BCCX_8510
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,143.38
-
Original price
$1,143.38
Original price
$1,143.38
$1,172.89
$1,172.89
-
$1,172.89
Current price
$1,172.89
Availability:
Out of stock
Description
MSD's Pro-Billet front drive distributor is the solution for race engines that don't have room for a standard distributor due to firewall clearance or intake combinations. The MSD front drive distributor is belt-driven from a pulley installed on the camshaft. For increased strength and durability a 9 mm belt is used which is wider than any other drive assembly. The distributor head is CNC-machined from a billet of aluminum and is secured to a strong precision bracket. This system is an extremely accurate way to distribute the spark energy from your MSD Ignition! We revised the front drive with our standard ford-style cap and rotor. This creates a downsized package for an easier fit in tight engine compartments. The front drive distributor is supplied with mounting bolts, cam pulley and drive belt. Note: must be used with a jewel or Comp Cams camshaft belt drive kit and an MSD flying magnet crank trigger.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_ASC | The Pro-Billet Standard distributor has a 2 pin magnetic pick up and requires a MSD ignition control. The Ready To Run distributor has a 3 pin connector and does not require an external ignition box. The Ready to Run model has an ignition module built in. |
| Description_DES | Pro-Billet™ Front Drive Distributor |
| Description_EXT | Pro-Billet™ Front Drive Distributor; w/Standard Size Ford Style Distributor Cap/Rotor; Incl. Belt/Cam Pulley; Chevy Small Block; |
| Description_FAB | Band clamp mount allows easy rotor phasing adjustment |
| Description_FAB | Billet aluminum bracket and lower housing for strength |
| Description_FAB | Cap and Rotor are injection molded from DuPont Rynite material |
| Description_FAB | Supplied w/Cam Gear; Hardware And Extra Wide 9mm Belt |
| Description_FAB | The Only Front Drive Distributor w/Adjustable Belt Tension |
| Description_INV | Front Mount Dist; SB Chevy; 4in. Cap |
| Description_LAB | Proposition 65 |
| Description_MKT | MSD's Pro-Billet front drive distributor is the solution for race engines that don't have room for a standard distributor due to firewall clearance or intake combinations. The MSD front drive distributor is belt-driven from a pulley installed on the camshaft. For increased strength and durability a 9 mm belt is used which is wider than any other drive assembly. The distributor head is CNC-machined from a billet of aluminum and is secured to a strong precision bracket. This system is an extremely accurate way to distribute the spark energy from your MSD Ignition! We revised the front drive with our standard ford-style cap and rotor. This creates a downsized package for an easier fit in tight engine compartments. The front drive distributor is supplied with mounting bolts, cam pulley and drive belt. Note: must be used with a jewel or Comp Cams camshaft belt drive kit and an MSD flying magnet crank trigger. |
| Description_SHO | Distributor |
| Distributor Type | Front Drive |
| Engine Make/Size | Chevy Small Block (262-400) |
| height | 9.7 |
| length | 14.1 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 4.1 |
| width | 10.6 |
