MSD 82613 HVC-II Ignition Coil
by MSD
SKU ds_BCCX_82613
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $26.74
Original price
$509.01
Original price
$509.01
-
Original price
$509.01
Original price
$509.01
Current price
$482.27
$482.27
-
$482.27
Current price
$482.27
Availability:
4+ in stock
Description

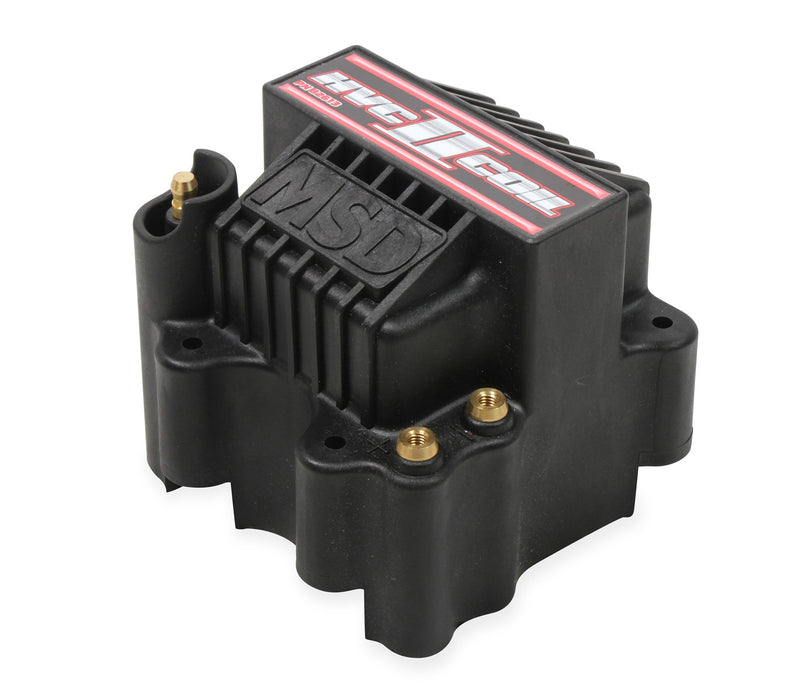

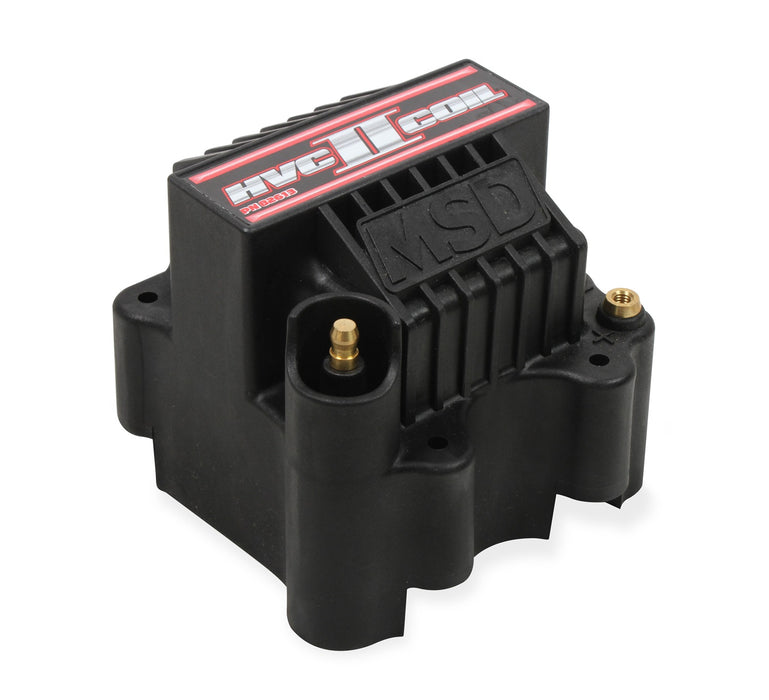

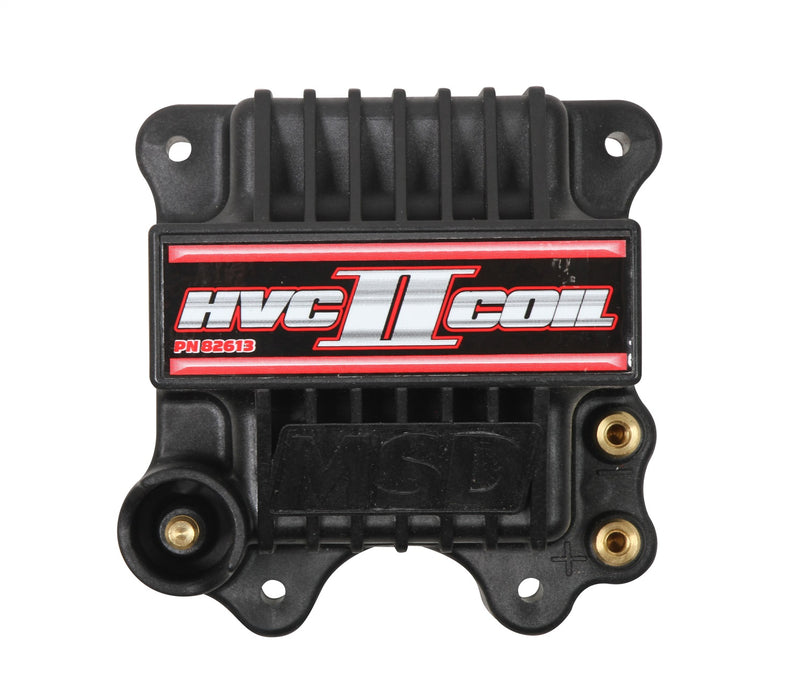

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.
Resources
Installation InstructionsSpecifications
| Color | Black |
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Coil |
| Description_DES | HVC-II Ignition Coil |

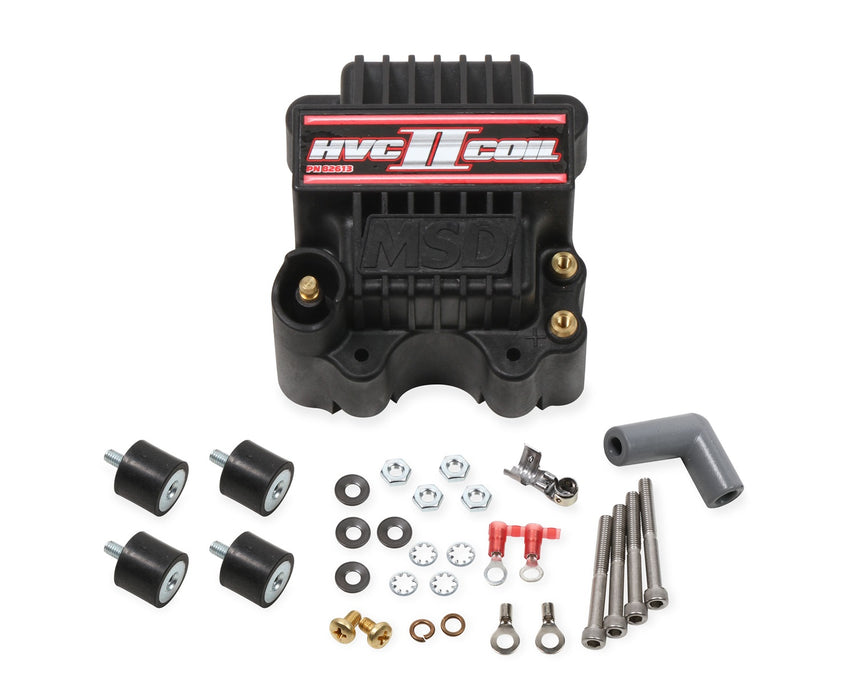

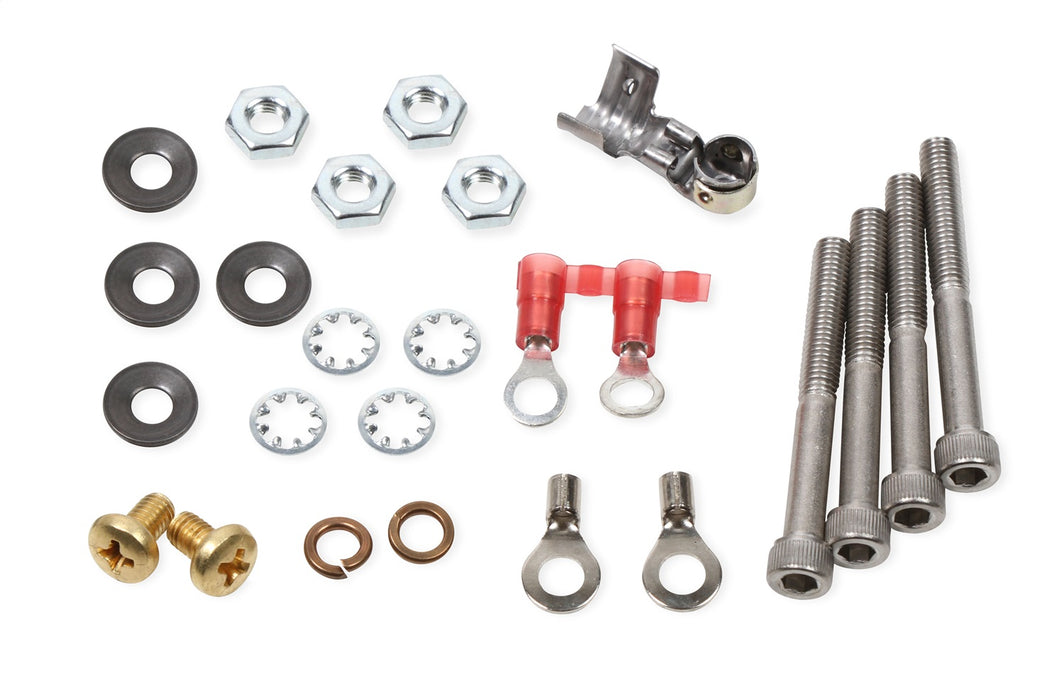

| Description_EXT | HVC-II Ignition Coil; For MSD7 / 8 Series; Incl. Coil/Mounts/Hdw; 0.250 mH Inductance; 45000 Max Volts; 2 amps Peak Current; 150uS Spark Duration; 70:1 Turns Ratio; Black; |
| Description_FAB | 70:1 Turns Ratio |
| Description_FAB | For racing applications w/MSD 7 or 8 Series Ignition Control |
| Description_FAB | Low Resistance Terminals |
| Description_FAB | Rubber Shock Mounts |
| Description_FAB | Tough Rigid Housing w/Isolated Tower |
| Description_FAB | U-Core Winding Design |
| Description_INV | Black Ignition Coil; HVC-2;7 Series Ign. |
| Description_LAB | Proposition 65 |
| Description_MKT | The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. |
| Description_SHO | Ignition Coil |
| height | 5.5 |
| Inductance | .250 mH |
| Item Weight | 3.750 lbs. |
| length | 6.1 |
| LTL | N |
| Maximum Voltage | 45000 |
| Peak Current | 2 mA |
| Primary Resistance | .016 ohms |
| Secondary Resistance | 30 ohms |
| Spark Duration | 150 uS |
| Turns Ratio | 70:1 |
| Type | Drag Race / Long Duration Use |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 3.55 |
| width | 5.5 |
