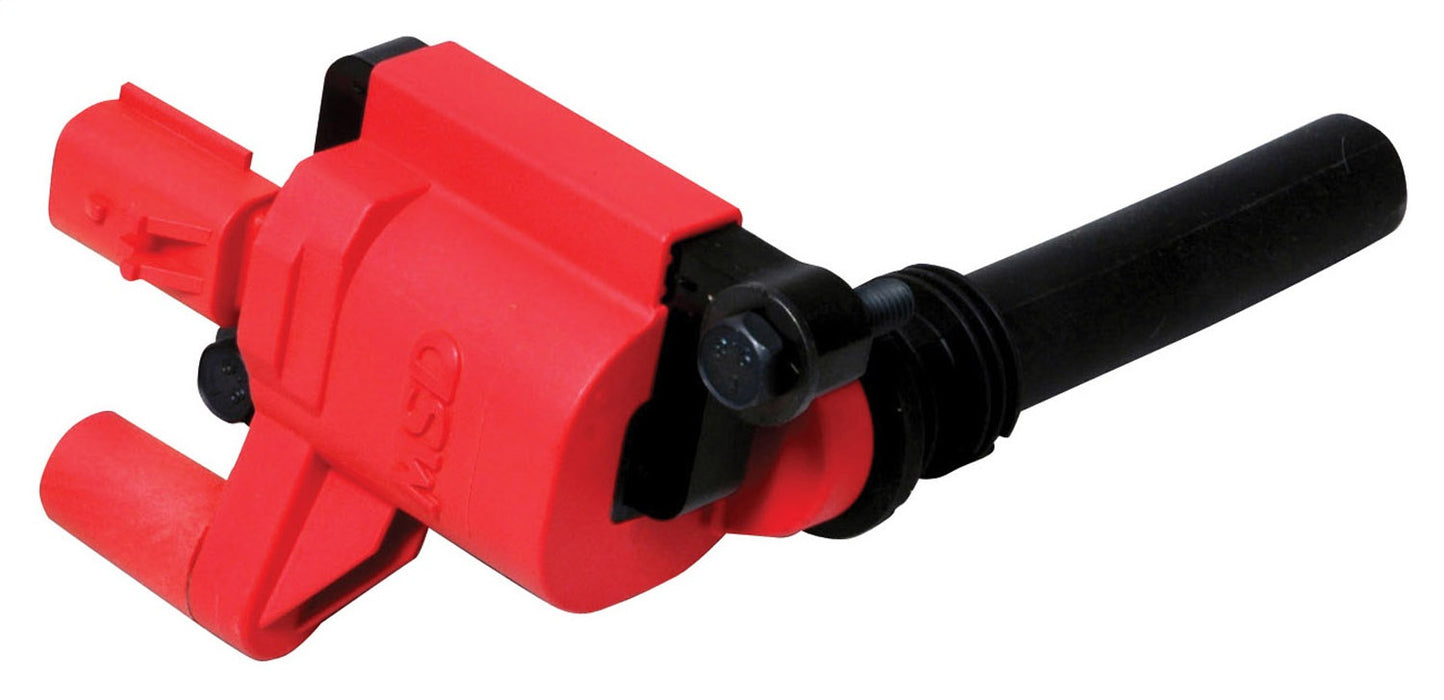

MSD 8256 Hemi Coil-On-Plug Direct Ignition Coil
by MSD
SKU ds_BCCX_8256
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$148.43
-
Original price
$148.43
Original price
$148.43
$148.43
$148.43
-
$148.43
Current price
$148.43
Availability:
Out of stock
Description
Fire up your late model hemi with a set of MSD's blaster coils. The coils are a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit.
Resources
Installation InstructionsSpecifications
| Color | Red |
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Direct Ignition Coil |
| Description_DES | Hemi Coil-On-Plug Direct Ignition Coil |
| Description_EXT | Hemi Coil-On-Plug Direct Ignition Coil; Direct Bolt-In To Factory Connectors; 30000 Max Voltage; 1150 mS Spark Duration; 62mJ Spark Energy; 63:1 Turns Ratio; Red; Single; |
| Description_FAB | Direct Bolt-In to Factory Connectors |
| Description_FAB | Energy (mJ): 62 mJ |
| Description_FAB | Improved High RPM Operation |
| Description_FAB | Inductance: 4.2 mH |
| Description_FAB | Lower Primary Resistance Produces High Voltage Output |
| Description_FAB | Maximum Voltage: 30;000 |
| Description_FAB | Patented Winding Design and Materials |
| Description_FAB | Primary Resistance: .6 ohms |
| Description_FAB | Secondary Current (mA): 72 mA |
| Description_FAB | Secondary Resistance: 5.56K ohms |
| Description_FAB | Spark Duration: 1150 mS |
| Description_FAB | Turns Ratio: 63.1 |
| Description_INV | Coil; 5.7L; HEMI; 03-05; Single |
| Description_LAB | Proposition 65 |
| Description_MKT | Fire up your late model hemi with a set of MSD's blaster coils. The coils are a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit. |
| Description_SHO | Direct Ignition Coil |
| Engine Make/Size | 5.7L HEMI; 2003 - 2005 |
| height | 2.95 |
| length | 8.9 |
| LTL | N |
| Maximum Voltage | 30000 |
| Package Quantity | Single |
| Position | N/A |
| Primary Resistance | .600 ohms |
| Secondary Resistance | 5.56K ohms |
| Spark Duration | 1150 mS |
| Spark Energy | 62 mJ per spark |
| Turns Ratio | 63:1 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 0.865 |
| width | 5.45 |
