MSD 8253 Blaster HVC-2 6 Series Ignition Coil
by MSD
SKU ds_BCCX_8253
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$517.17
-
Original price
$517.17
Original price
$517.17
$517.17
$517.17
-
$517.17
Current price
$517.17
Description

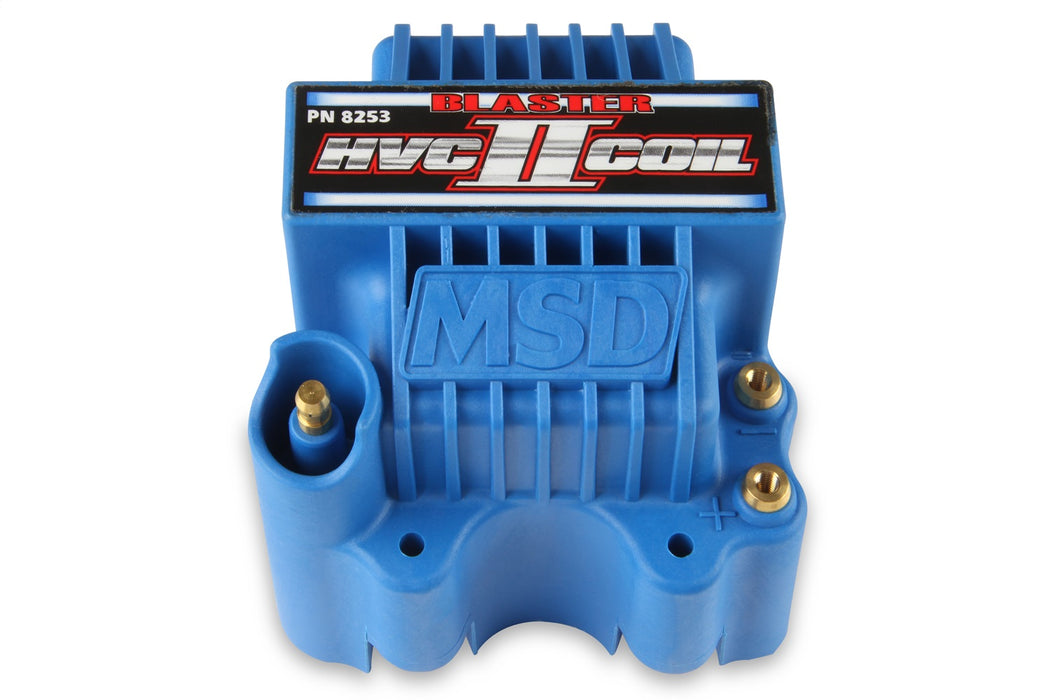

The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series ignition Controls. This coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special DuPont rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also molded from high dielectric rynite material. The brass primary terminals are spaced far apart and the secondary tower is well protected for increased spark isolation. The housing is completely coated with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Coil |
| Description_DES | Blaster HVC-2 6 Series Ignition Coil |
| Description_EXT | Blaster HVC-2 6 Series Ignition Coil; 3.5 mH Inductance; 44000 Max Voltage; 450 mA Peak Current; 450 uS Spark Duration; 100:1 Turns Ratio; Blue; |
| Description_FAB | 100:1 Turns Ratio |
| Description_FAB | For high rpm/long duration applications using MSD 6 Series Ign. |
| Description_FAB | Lower Primary Resistance Produces High Voltage Output |
| Description_FAB | New U-core winding design produces more voltage and current |
| Description_FAB | No CARB Exemption Order Number |
| Description_FAB | Rynite housing w/isolated tower and brass primary terminals |

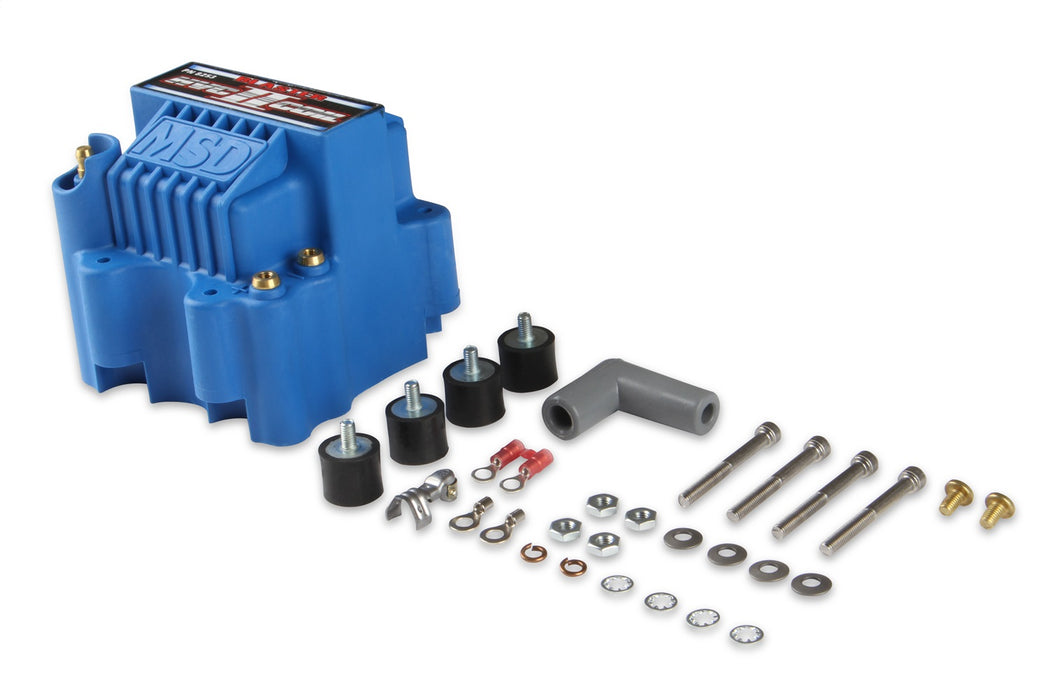

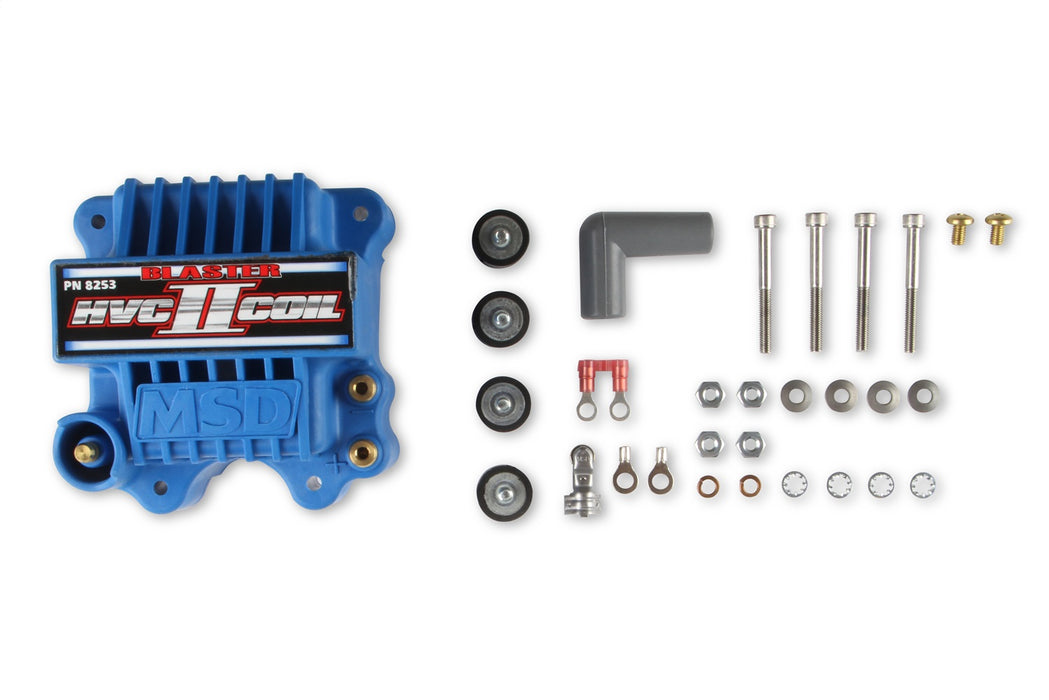

| Description_FAB | Supplied w/Rubber Shock Mounts |
| Description_FAB | Windings encased in fracture resistant compound for vibration |
| Description_INV | Ignition Coil; HVC-2; MSD 6 Series |
| Description_LAB | Proposition 65 |
| Description_MKT | The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series ignition Controls. This coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special DuPont rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also molded from high dielectric rynite material. The brass primary terminals are spaced far apart and the secondary tower is well protected for increased spark isolation. The housing is completely coated with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. |
| Description_SHO | Ignition Coil |
| height | 5.7 |
| Inductance | 3.5 mH |
| Item Weight | 3.750 lbs. |
| length | 6.25 |
| LTL | N |
| Maximum Voltage | 44000 |
| Peak Current | 450 mA |
| Primary Resistance | .160 ohms |
| Secondary Resistance | 630 ohms |
| Spark Duration | 450 uS |
| Turns Ratio | 100:1 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 4.31 |
| width | 5.45 |
