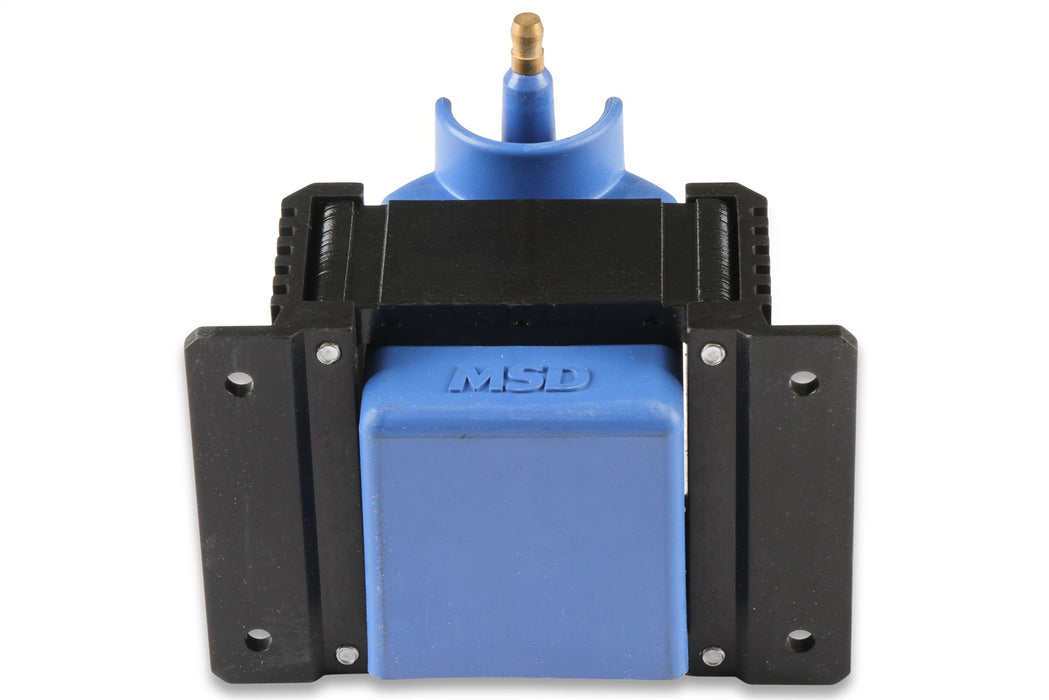

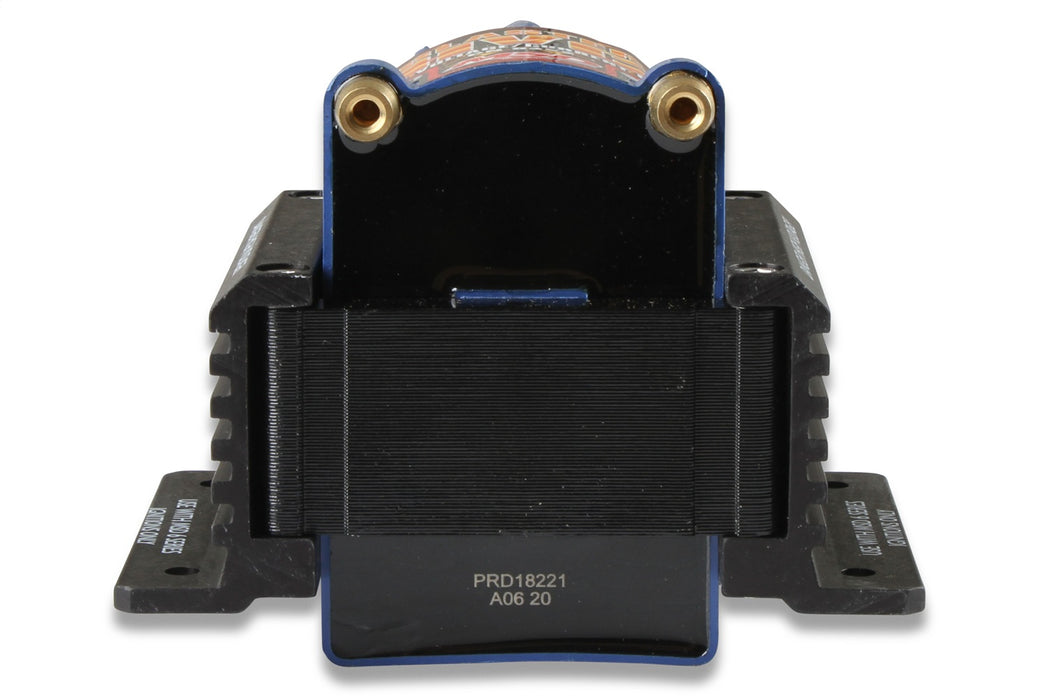

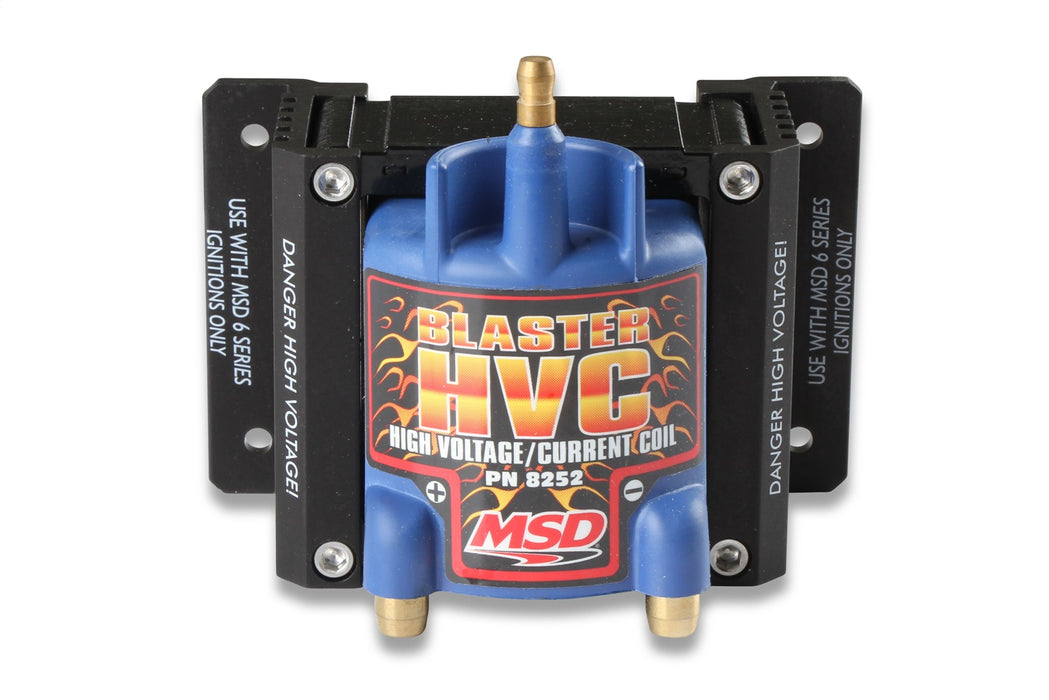

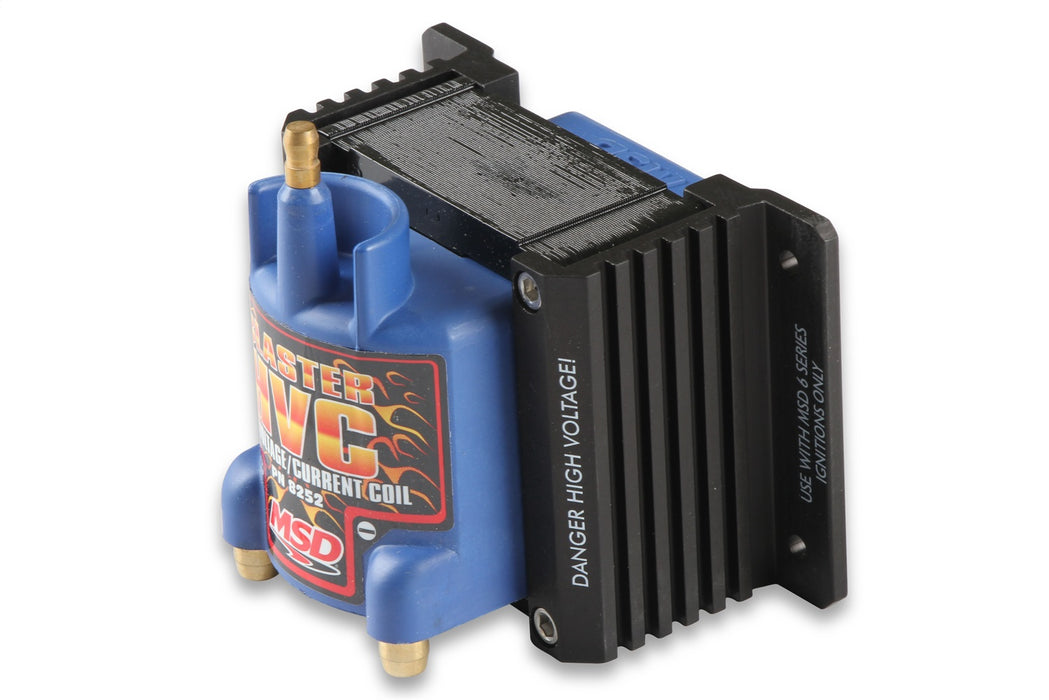

MSD 8252 Blaster HVC Ignition Coil
by MSD
SKU ds_BCCX_8252
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $6.54
Original price
$314.53
Original price
$314.53
-
Original price
$314.53
Original price
$314.53
Current price
$307.99
$307.99
-
$307.99
Current price
$307.99
Availability:
4+ in stock
Description
The blaster HVC is designed for high rpm, long duration applications such as road course and circle track racing using an MSD 6 series ignition. Works with electronic ignitions and MSD ignition Controls (ballast resistor required for points systems). Features 100:1 turn ratio and lower primary resistance produce high voltage output. Windings are encased in blue epoxy and secured with extruded brackets. Spark plug style terminal and threaded brass primary studs. Supplied with rubber shock mounts. Carb E.O. approved.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Ignition Coil |
| Description_DES | Blaster HVC Ignition Coil |
| Description_EXT | Blaster HVC Ignition Coil; For Use w/MSD 6 Series Ignition; 7 mH Inductance; 42000 Max Voltage; 300 mA Peak Current; 200 uS Spark Duration; |
| Description_FAB | 100:1 Turns Ratio |
| Description_FAB | CARB E.O. Approved |
| Description_FAB | Designed for high rpm; long duration applications |
| Description_FAB | Lower Primary Resistance Produces High Voltage Output |
| Description_FAB | Spark Plug Style Terminal and Threaded Brass Primary Studs |

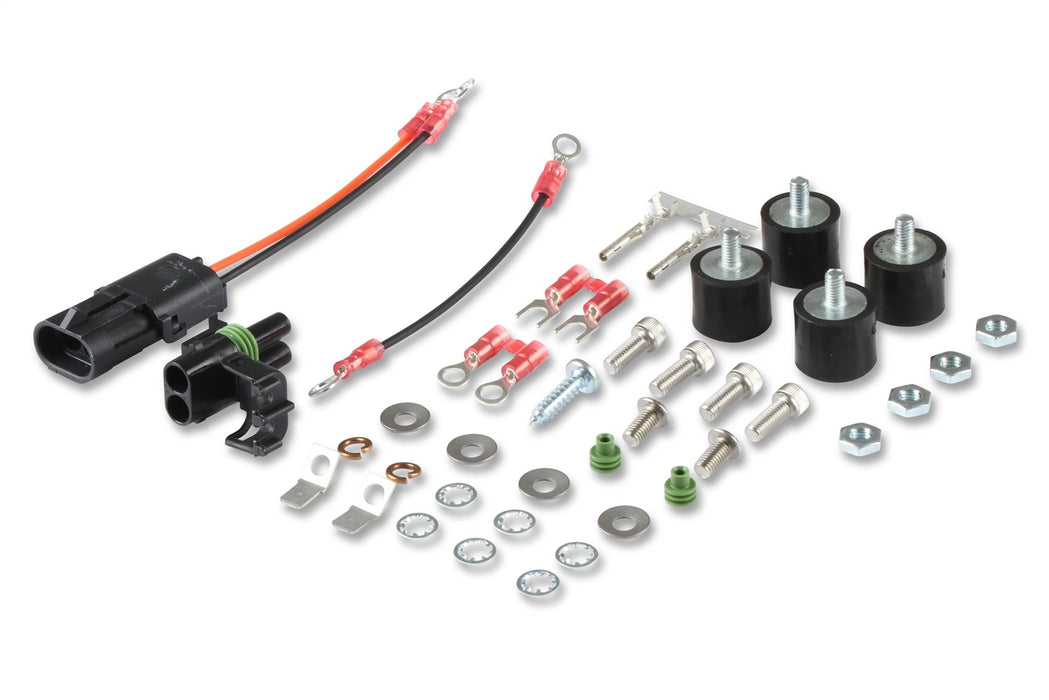

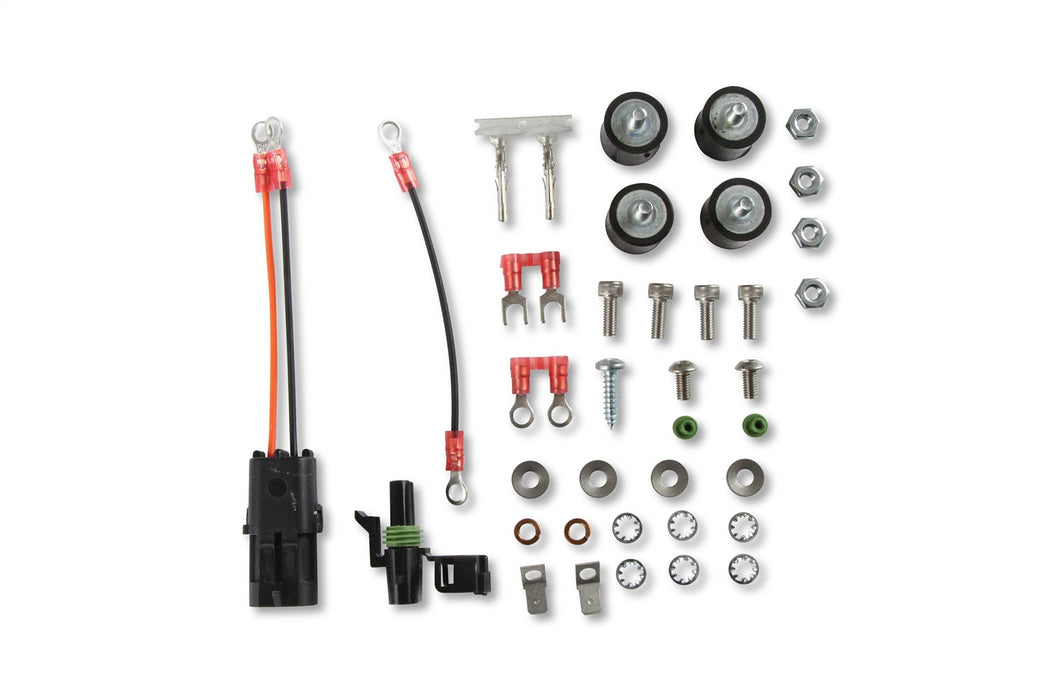

| Description_FAB | Supplied w/Rubber Shock Mounts |
| Description_FAB | Windings encased in blue epoxy and secured w/extruded brackets |
| Description_FAB | Works w/Electronic Ignitions And MSD Ignition Controls |
| Description_INV | Blaster HVC; Works w/MSD 6 Series Units |
| Description_LAB | Proposition 65 |
| Description_MKT | The blaster HVC is designed for high rpm, long duration applications such as road course and circle track racing using an MSD 6 series ignition. Works with electronic ignitions and MSD ignition Controls (ballast resistor required for points systems). Features 100:1 turn ratio and lower primary resistance produce high voltage output. Windings are encased in blue epoxy and secured with extruded brackets. Spark plug style terminal and threaded brass primary studs. Supplied with rubber shock mounts. Carb E.O. approved. |
| Description_SHO | Ignition Coil |
| height | 5.4 |
| Inductance | 7 mH |
| length | 6.1 |
| LTL | N |
| Maximum Voltage | 42000 |
| Peak Current | 300 mA |
| Primary Resistance | .020 ohms |
| Secondary Resistance | 1.38K ohms |
| Spark Duration | 200 uS |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 3.65 |
| width | 5.5 |
