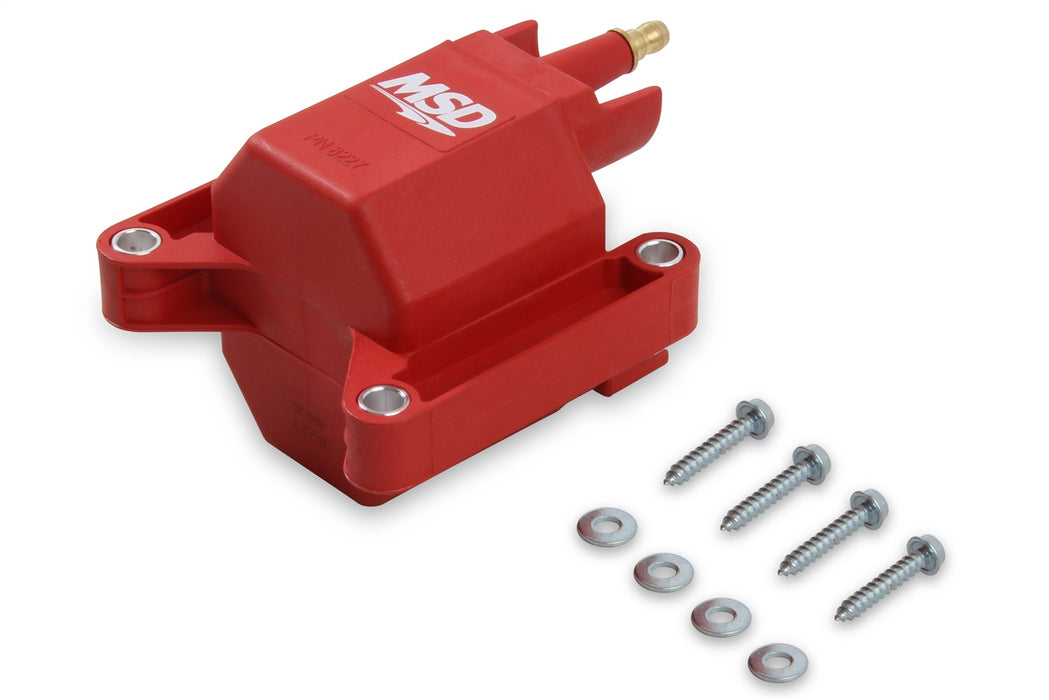

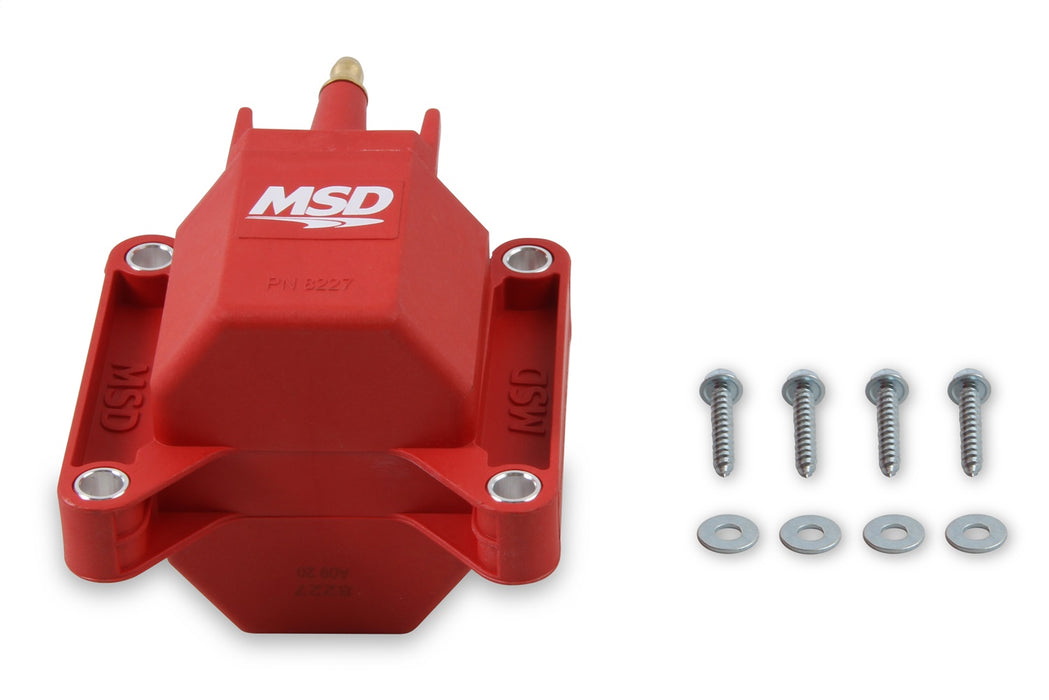

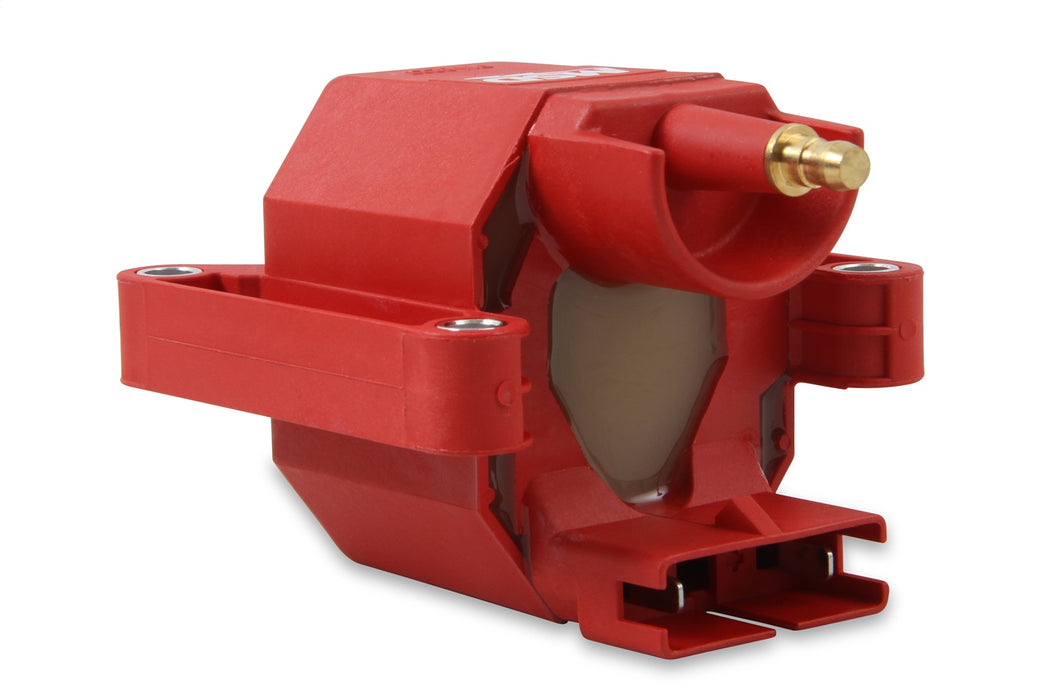

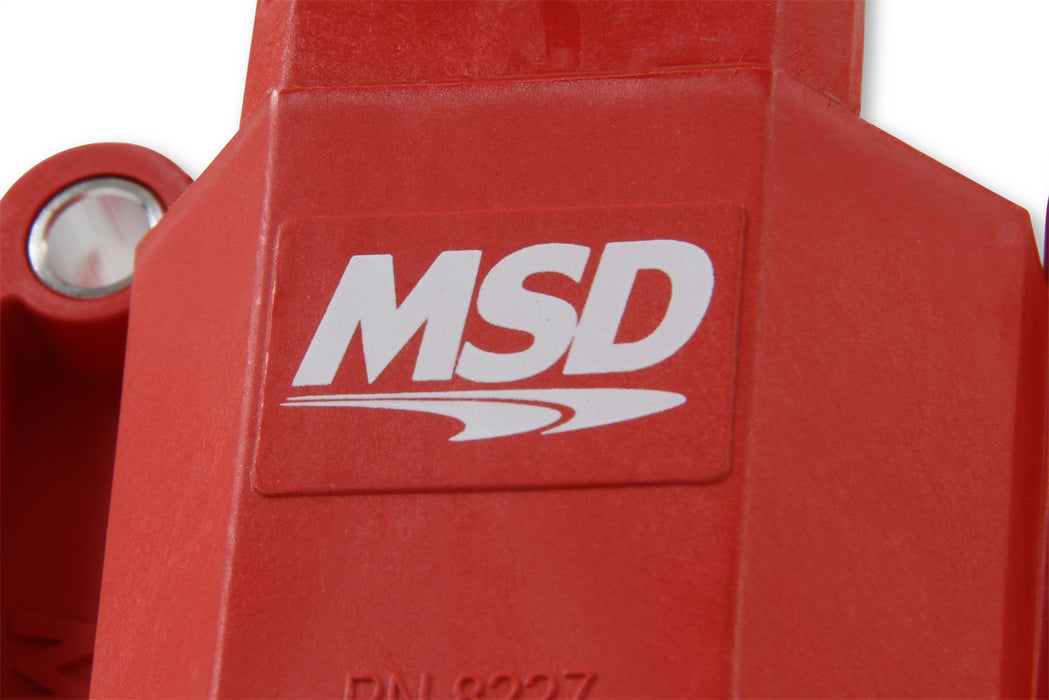

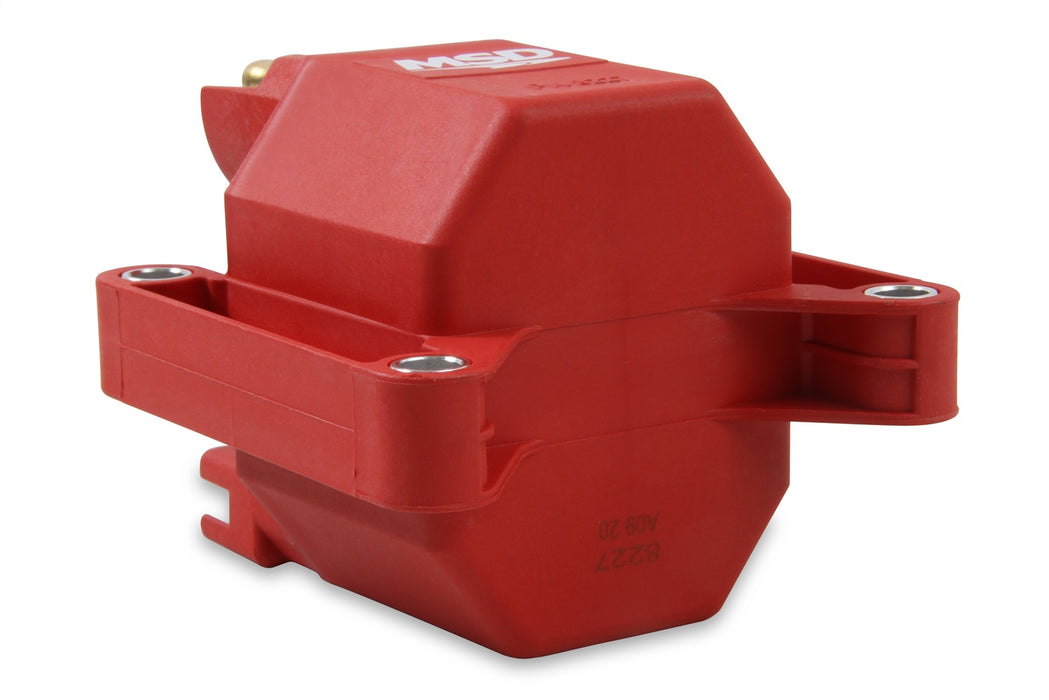

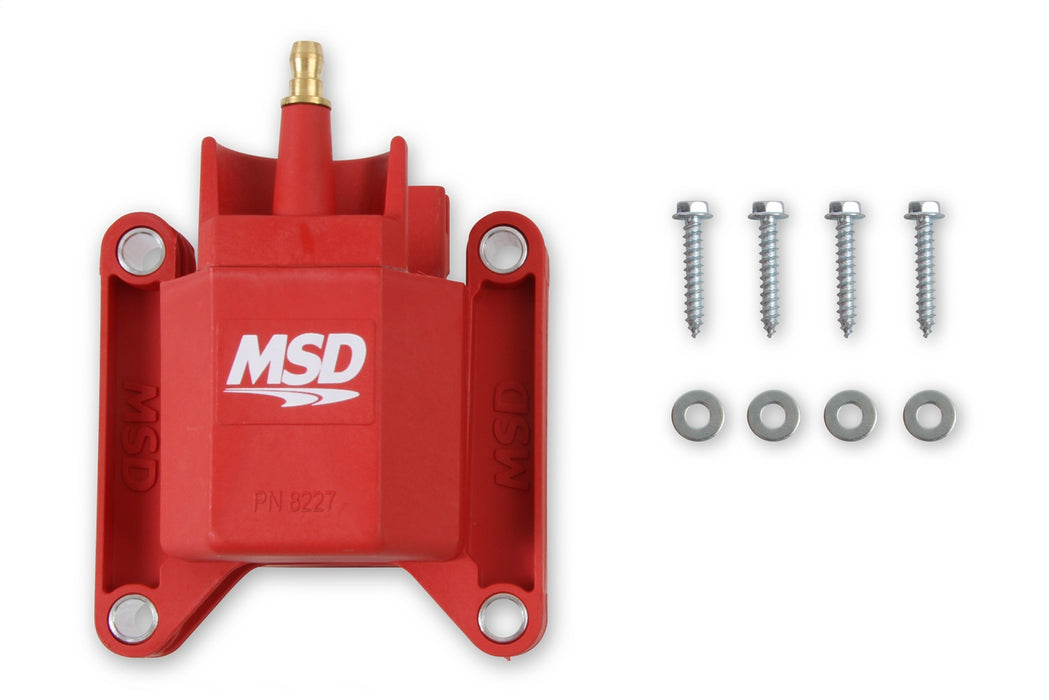

MSD 8227 Blaster TFI Ignition Coil
by MSD
SKU ds_BCCX_8227
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $1.71
Original price
$137.26
Original price
$137.26
-
Original price
$137.26
Original price
$137.26
Current price
$135.55
$135.55
-
$135.55
Current price
$135.55
Availability:
4+ in stock
Description
Top off your GM ignition system with these great new replacement coils. The GM coils have MSD performance in factory style housings. MSD designed these coils by combining our blaster coil experience with e-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The coils will work with stock ignition systems as well as MSD equipped cars and trucks. Installation tip: If you plan to install an MSD ignition with your GM dual connector coil, use PN 8876 harness for a direct plug-in installation.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Ignition Coil |
| Description_DES | Blaster TFI Ignition Coil |
| Description_EXT | Blaster TFI Ignition Coil; Direct Replacement; 5.6 mH Inductance; 44000 Max Voltage; 220 ma Peak Current; 300 uS Spark Duration; 100:1 Turns Ratio; Red; Single; |
| Description_FAB | 85:1 turns ratio |
| Description_FAB | CARB E.O. Approved |
| Description_FAB | Direct performance replacement for Ford TFI coil |
| Description_FAB | Lower Primary Resistance Produces High Voltage Output |
| Description_FAB | Works w/Stock Ignition As Well As MSD Ignitions |
| Description_INV | Coil; Ford TFI Replacement; Hi Perfo |
| Description_LAB | Proposition 65 |
| Description_MKT | Top off your GM ignition system with these great new replacement coils. The GM coils have MSD performance in factory style housings. MSD designed these coils by combining our blaster coil experience with e-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The coils will work with stock ignition systems as well as MSD equipped cars and trucks. Installation tip: If you plan to install an MSD ignition with your GM dual connector coil, use PN 8876 harness for a direct plug-in installation. |
| Description_SHO | Ignition Coil |
| height | 3.0 |
| Inductance | 5.6 mH |
| length | 8.15 |
| LTL | N |
| Maximum Voltage | 44000 |
| Peak Current | 220 mA |
| Primary Resistance | .680 ohms |
| Secondary Resistance | 4.8K ohms |
| Spark Duration | 300 uS |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 1.355 |
| width | 6.2 |
