MSD 8201 Pro Power Ignition Coil
by MSD
SKU ds_BCCX_8201
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $6.54
Original price
$314.53
Original price
$314.53
-
Original price
$314.53
Original price
$314.53
Current price
$307.99
$307.99
-
$307.99
Current price
$307.99
Availability:
4+ in stock
Description

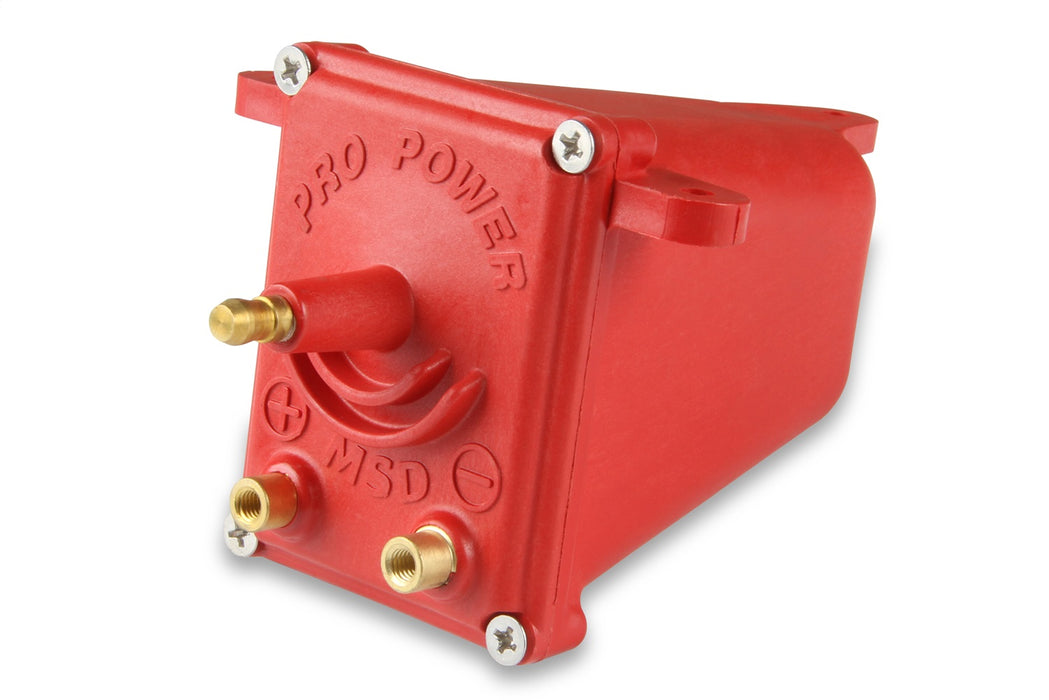

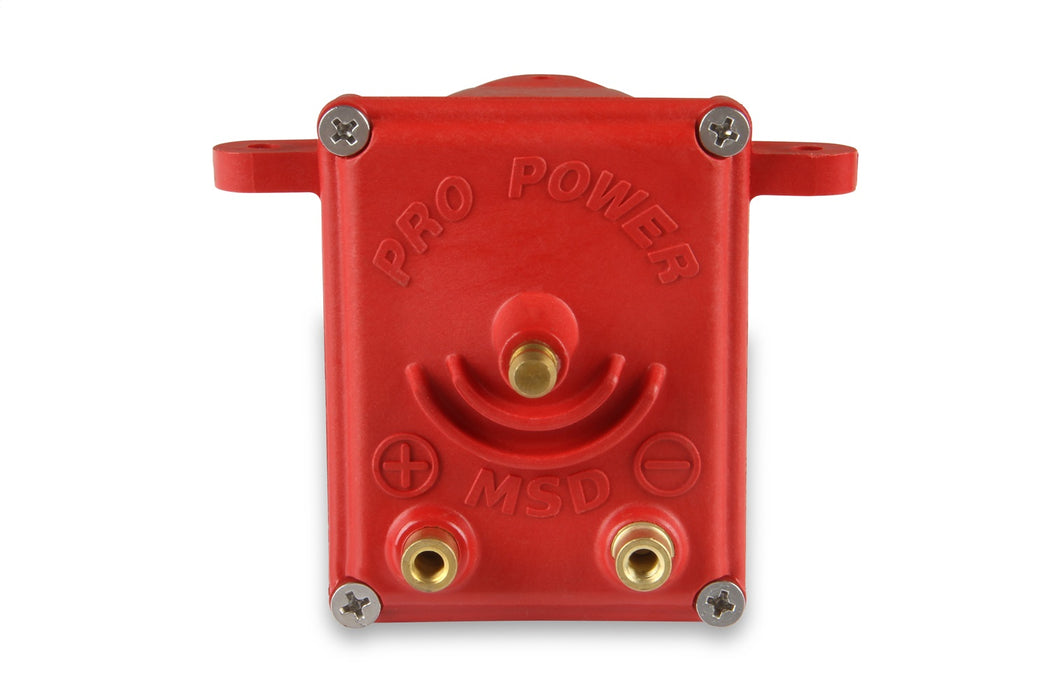

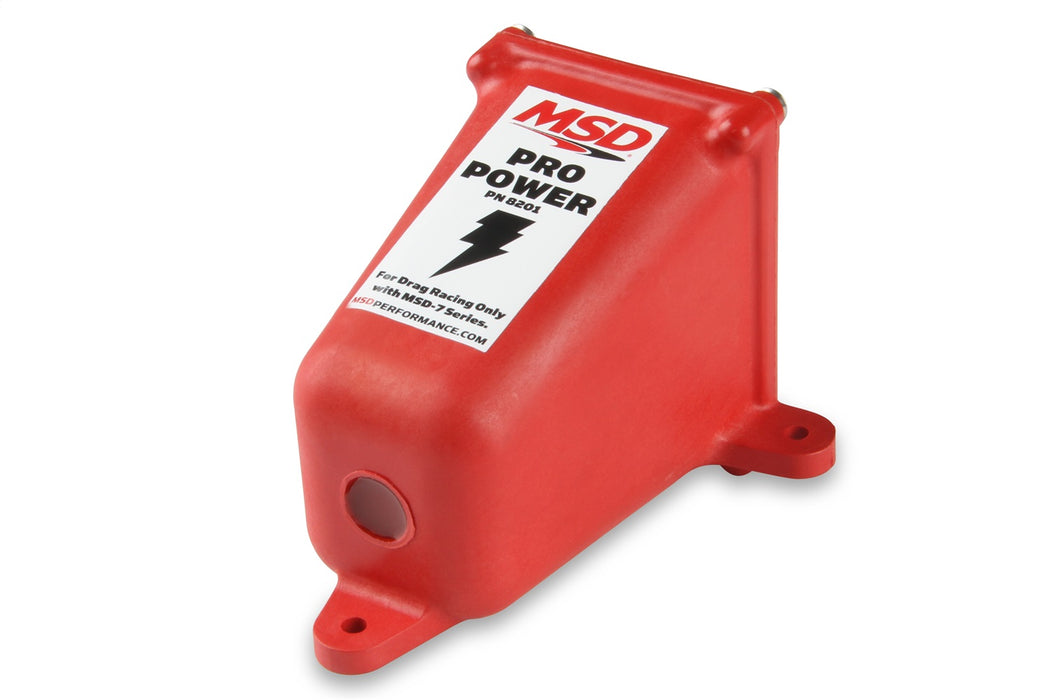

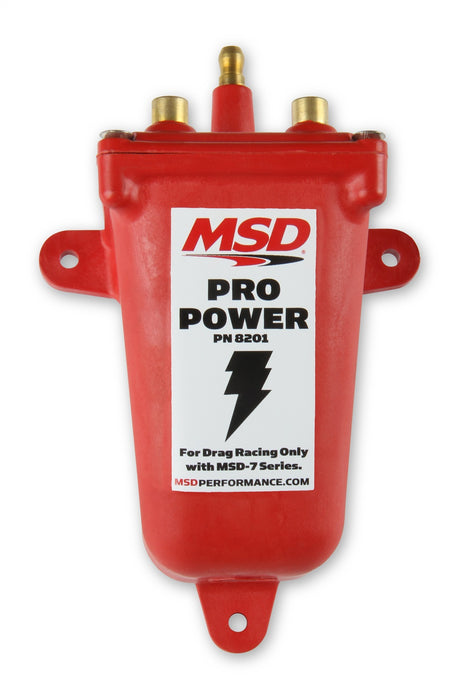

The MSD pro power coil is a great choice for short duration applications such as drag racing. The special windings of the pro power coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 series ignition control. The coil wire tower rises tall above the primary terminals and uses a spark plug style terminal for a firm connection to the coil wire. The housing is molded from a high dielectric polyester material and a ciba urethane compound adds vibration protection to the coil windings. Vibration mounts are also supplied.
Resources
Installation InstructionsSpecifications
| Color | Red |
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Coil |
| Description_DES | Pro Power Ignition Coil |
| Description_EXT | Pro Power Ignition Coil; For Use w/MSD 7 and 8 Series; Short Duration; 1 mH Inductance; 43000 Max Voltage; 800 mA Peak Current; 100:1 Turns Ratio; Red; |
| Description_FAB | Extremely low primary resistance |
| Description_FAB | For MSD 7 and 8 ignitions only; not for use on street vehicles |
| Description_FAB | High voltage coil designed for short duration applications only |
| Description_FAB | Housing Is Molded From A Durable And High Dielectric Polyester |
| Description_FAB | Primary and secondary windings are polyurethane encased |

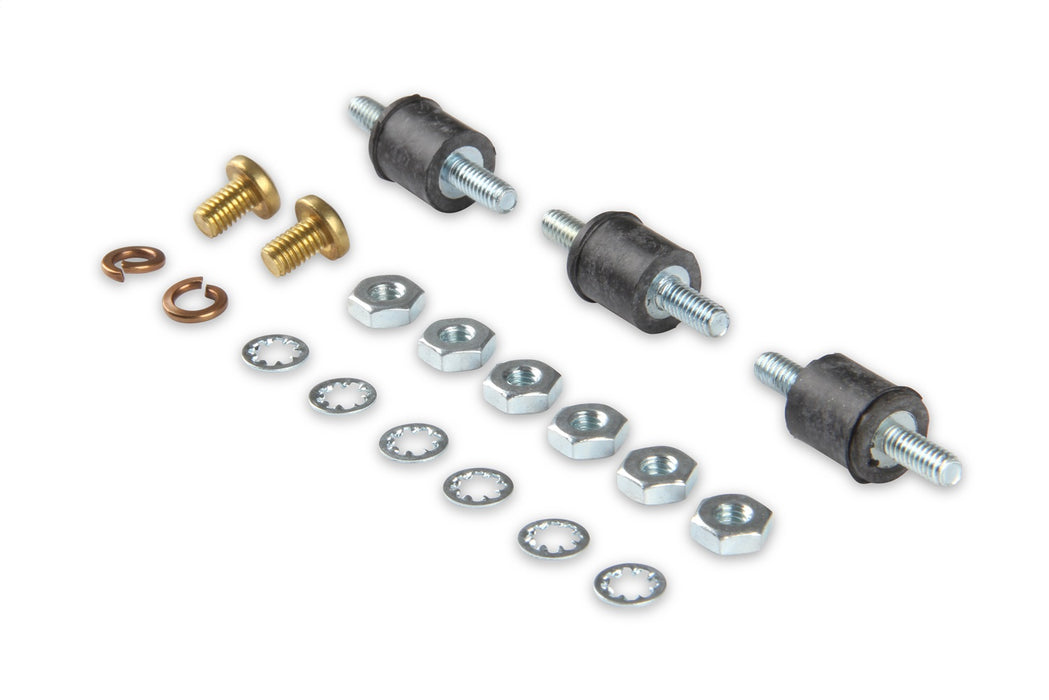

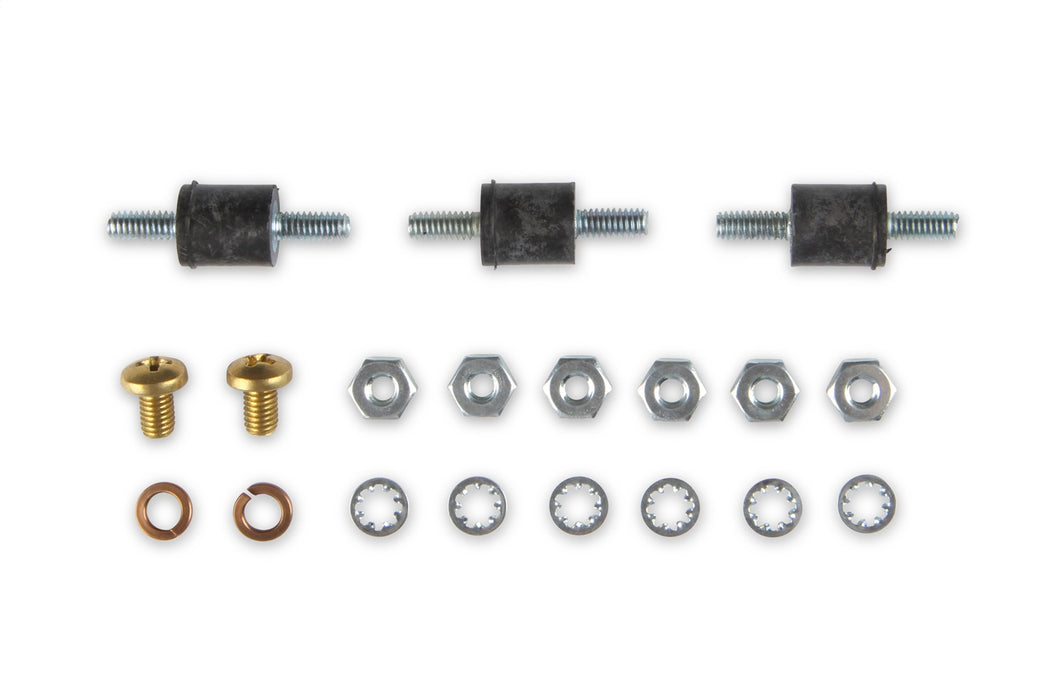

| Description_FAB | Supplied w/Rubber Shock Mounts |
| Description_INV | Pro Power Coil |
| Description_LAB | Proposition 65 |
| Description_MKT | The MSD pro power coil is a great choice for short duration applications such as drag racing. The special windings of the pro power coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 series ignition control. The coil wire tower rises tall above the primary terminals and uses a spark plug style terminal for a firm connection to the coil wire. The housing is molded from a high dielectric polyester material and a ciba urethane compound adds vibration protection to the coil windings. Vibration mounts are also supplied. |
| Description_SHO | Ignition Coil |
| height | 3.4 |
| Inductance | 1 mH |
| length | 4.7 |
| LTL | N |
| Maximum Voltage | 43000 |
| Peak Current | 800 mA |
| Primary Resistance | .030 ohms |
| Secondary Resistance | 240 ohms |
| Spark Duration | 180 uS |
| Turns Ratio | 100:1 |
| Type | Drag Race / Short Duration Use |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 1.25 |
| width | 4.1 |
