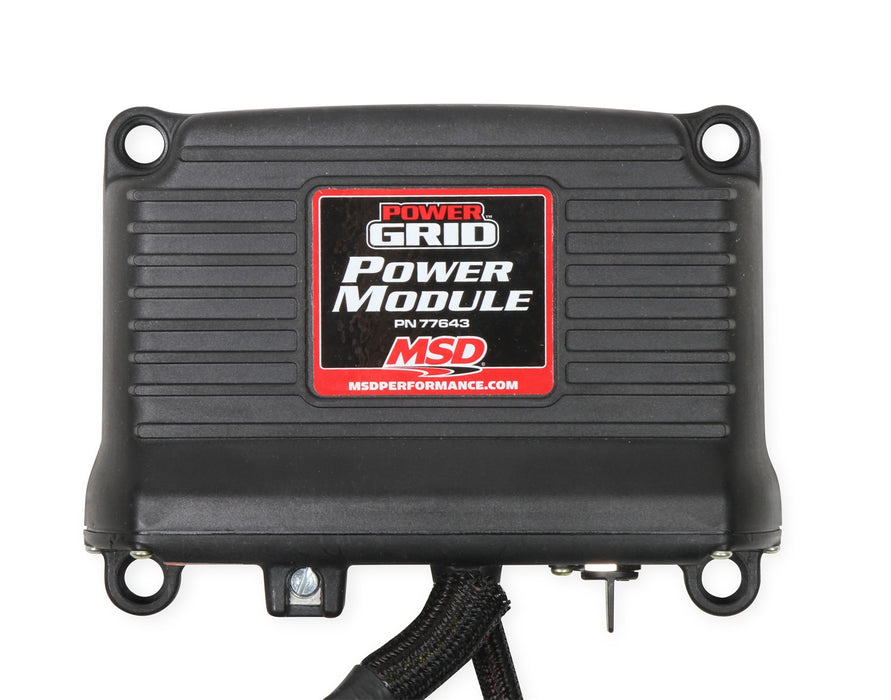

MSD 77643 Power Grid Power Module
by MSD
SKU ds_BCCX_77643
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,016.53
-
Original price
$1,016.53
Original price
$1,016.53
$1,016.53
$1,016.53
-
$1,016.53
Current price
$1,016.53
Availability:
Out of stock
Description
The Power Module has four high solid state switches that can be configured independently or in conjunction by Time, RPM and temperature switching On /OFF as well as by percentage for NOS systems. Each channel is capable of handling 20 amps of current without the use of a relay. It can be used to activate a fan, fuel pump, a NOS system, Throttle stop, the possibilities are endless. When connected to the Power Grid it will data log all the functions including Time from Launch, time or rpm of activation and deactivation.
Resources
Installation InstructionsSpecifications
| Color | Black |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | 4 Channel programable solid state relay with data acquition capability; eliminates the need for electromechanical relays; fuses and timers |
| Description_DEF | Data Acquisition Module |
| Description_DES | Power Grid Power Module |
| Description_EXT | Power Grid Power Module; Can Be Used To Activate Fan; Fuel Pump; NOS System; Throttle Stop; Data Logs All Functions When Paired w/MSD PN[7730] Power Grid; Black; |
| Description_FAB | 80 Amp Capacity; 4 Channels Rated Up To 20 Amps Each |
| Description_FAB | Built-In Overcurrent Protection - No Fuses Needed |
| Description_FAB | Can Be Used Stand Alone Or w/MSD Power Grid |
| Description_FAB | Data Acquisition Available When used w/MSD Power Grid |
| Description_FAB | Each Channel Is Controlled Via Input Wires or Software |
| Description_FAB | Takes The Place Of 4 Electromechanical Relays |
| Description_FAB | Trigger Signals Can Include Power/Ground/Temp/Time |
| Description_INV | Black; Power Grid Power Module |
| Description_LAB | Proposition 65 |
| Description_MKT | The Power Module has four high solid state switches that can be configured independently or in conjunction by Time, RPM and temperature switching On /OFF as well as by percentage for NOS systems. Each channel is capable of handling 20 amps of current without the use of a relay. It can be used to activate a fan, fuel pump, a NOS system, Throttle stop, the possibilities are endless. When connected to the Power Grid it will data log all the functions including Time from Launch, time or rpm of activation and deactivation. |
| Description_SHO | DataAcquisitionMod |
| height | 4.6 |
| length | 11.8 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 2.75 |
| width | 8.5 |
