MSD 7330 7AL-3 Series Race Multiple Spark Ignition Controller
by MSD
SKU ds_BCCX_7330
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $198.89
Original price
$1,673.03
Original price
$1,673.03
-
Original price
$1,673.03
Original price
$1,673.03
Current price
$1,474.14
$1,474.14
-
$1,474.14
Current price
$1,474.14
Availability:
4+ in stock
Description

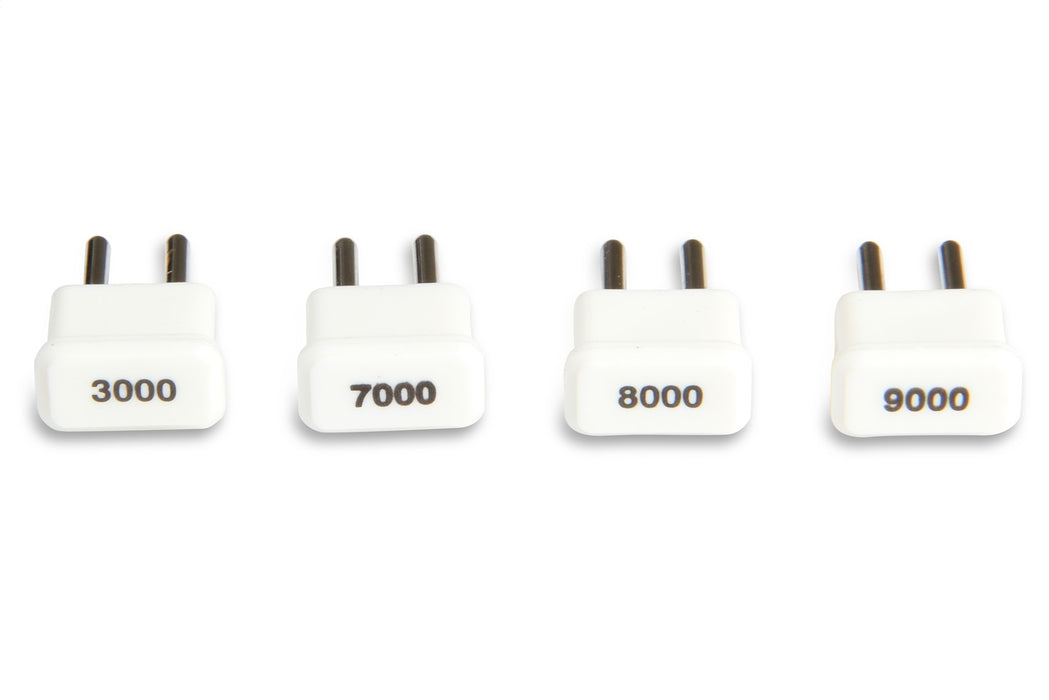

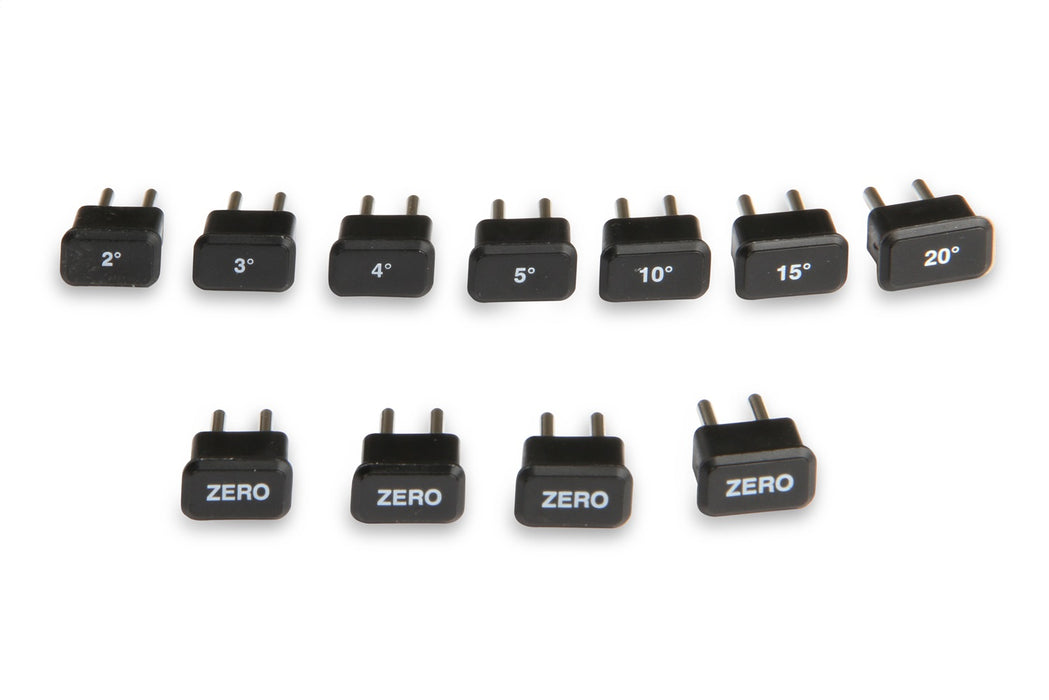

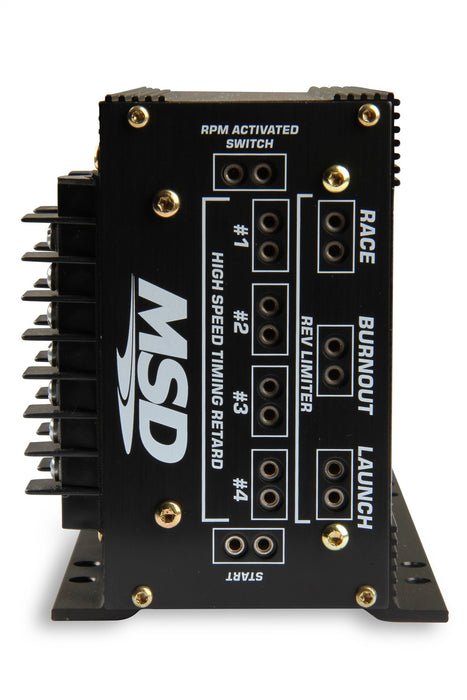

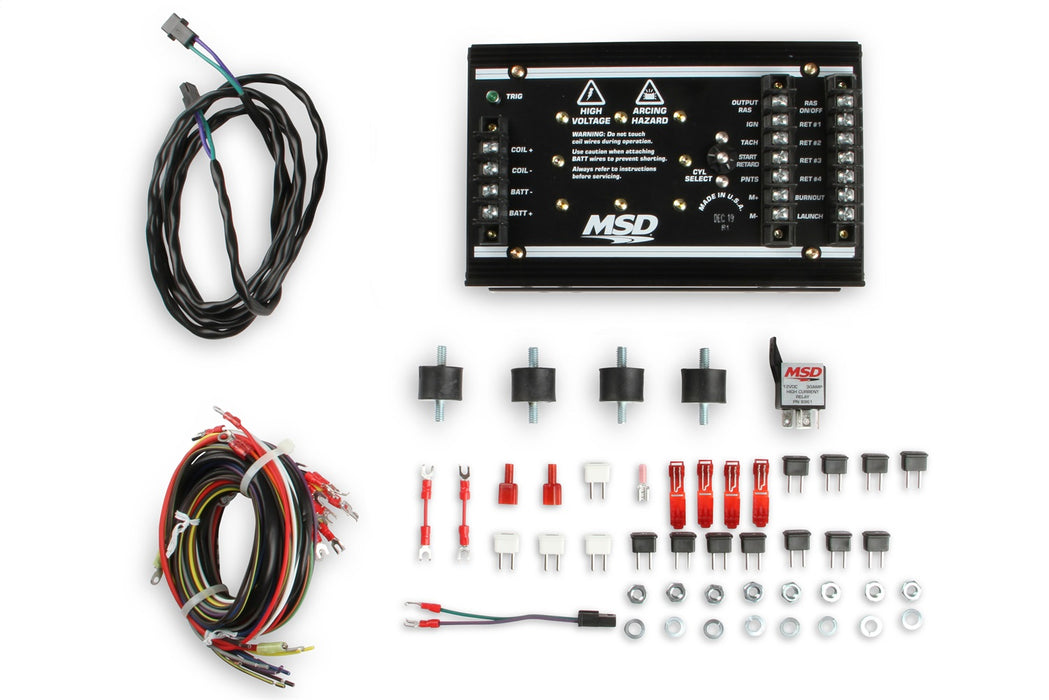

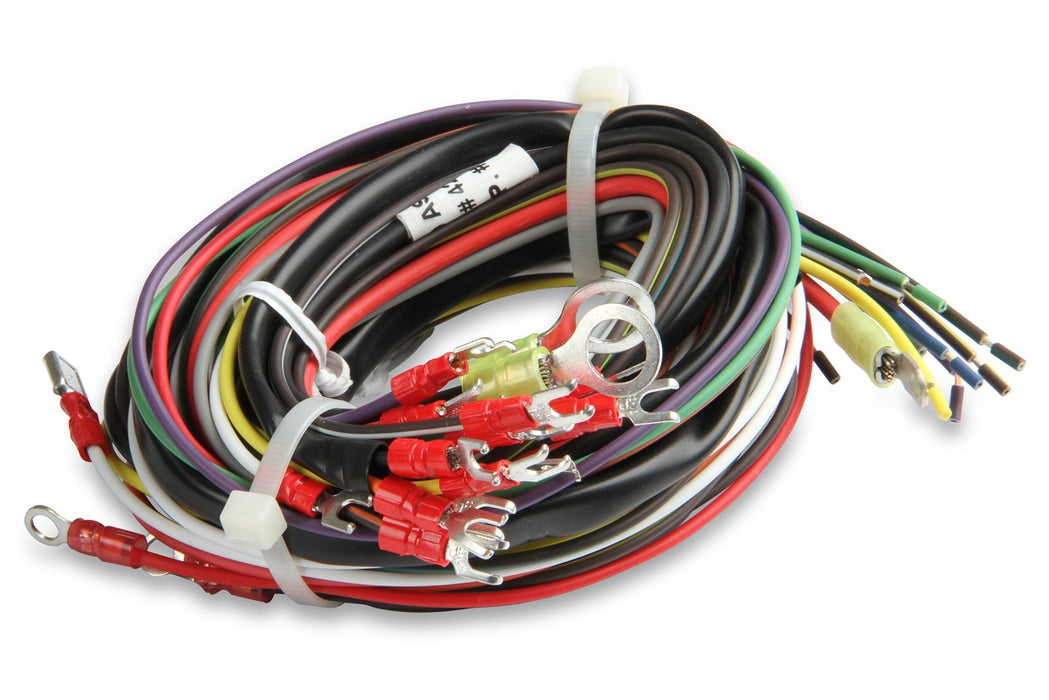

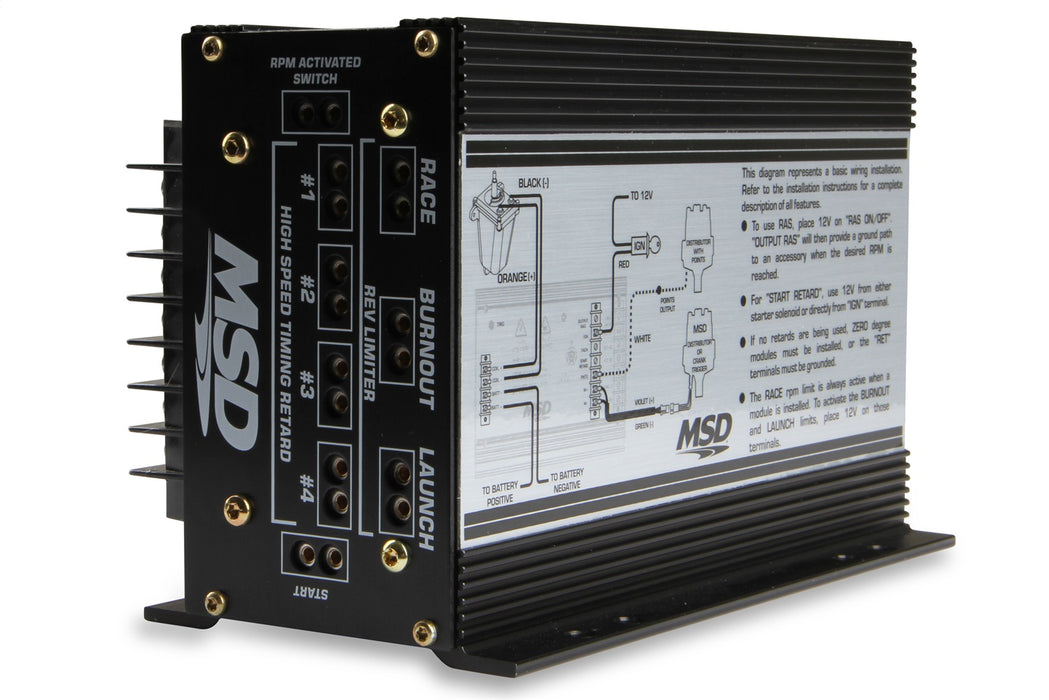

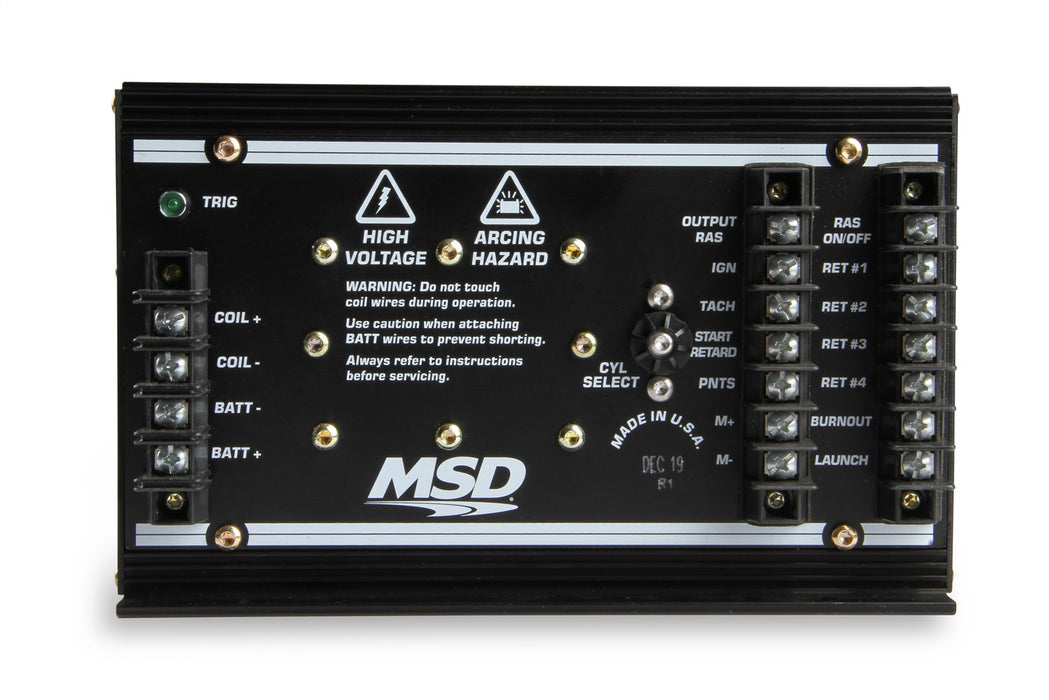

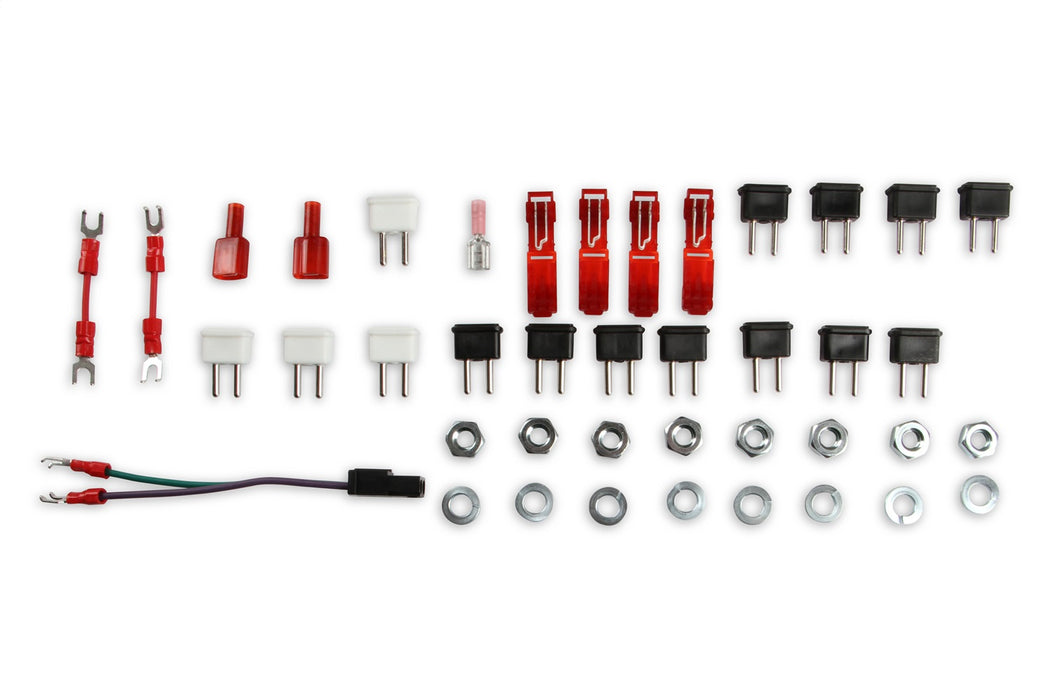

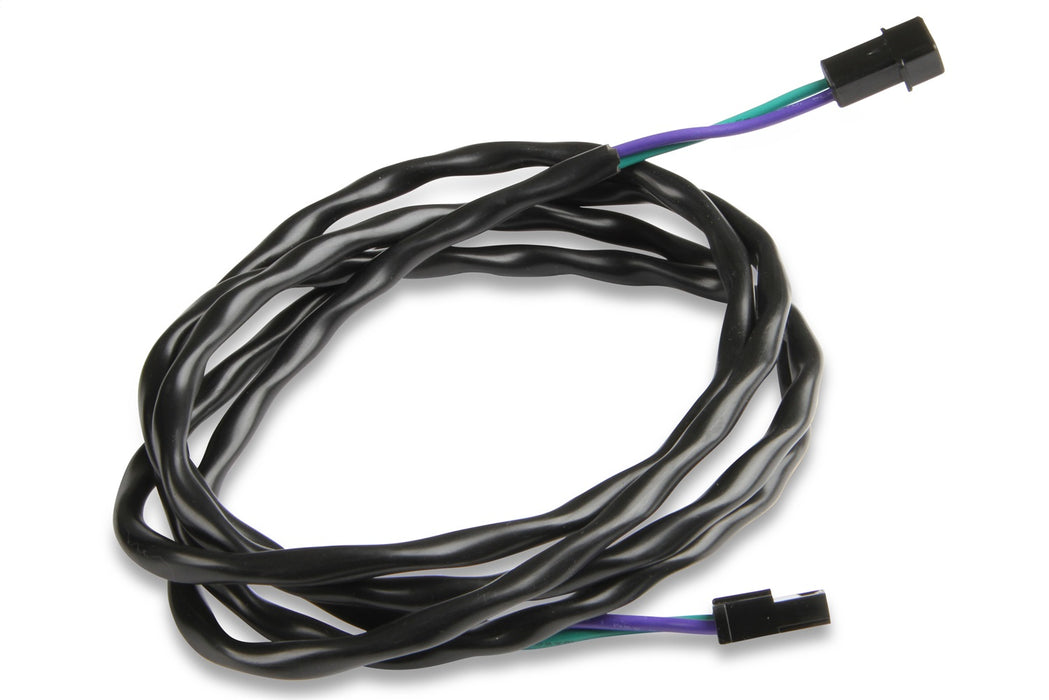

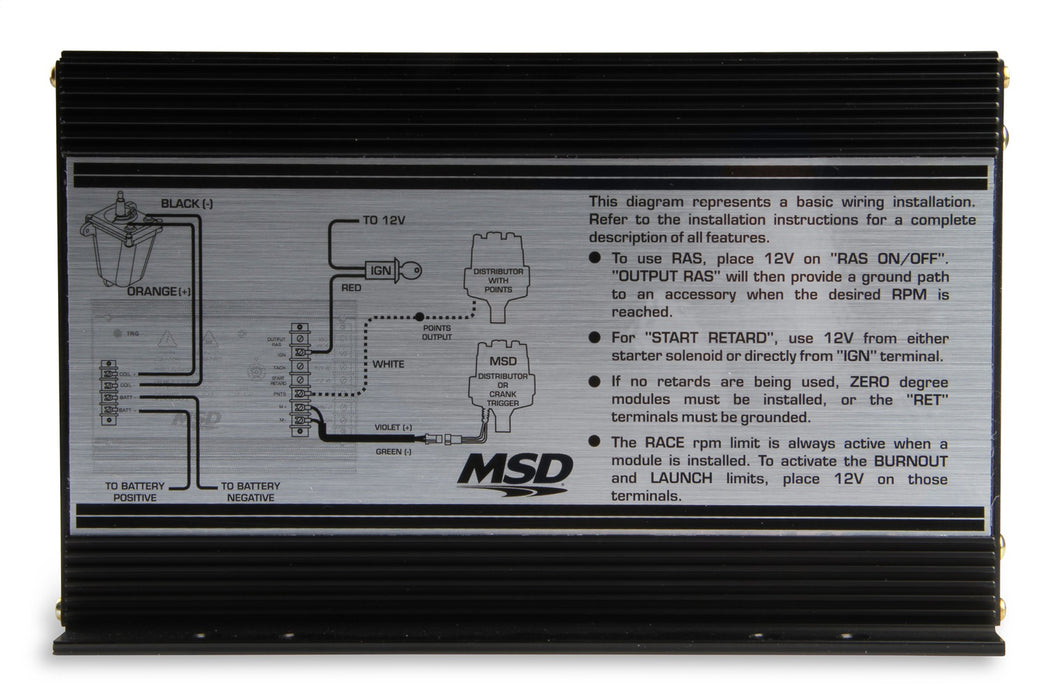

The MSD 7AL-3(TM) is based off the well proven MSD 7AL-2 plus. It features a host of the most popular drag racing accessories. A built-in three step rev control provides three different rpm limits that can be used for the burnout, hole shot and top end overrev protection. There is also a multi-step retard with four different modules that can be activated at different times. Four 0 degree modules and a 2 degrees, 3 degrees and 4 degrees module are supplied. Many race engines with crank trigger systems or locked-out distributors will benefit from the 7AL-3's built-in start retard option. during cranking the start retard will retard the timing 25 degrees allowing the engine to turn over easier. When the engine starts, the timing will automatically go back to its mechanical setting. One last option is an RPM activated switch that allows you to activate a solenoid or shift light at an adjustable rpm. When the engine hits the desired rpm the RAS circuit provides a ground to the component to activate it. Vibration mounts, wires and detailed instructions are supplied.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Control Module |
| Description_DES | 7AL-3 Series Race Multiple Spark Ignition Controller |
| Description_EXT | 7AL-3 Series Race Multiple Spark Ignition Controller; Pro Drag Race; New Adjustable Start Retard Circuit; |
| Description_FAB | 3-Step Rev Limiter |
| Description_FAB | 4-Stage Multi-Step Retard |
| Description_FAB | Adjustable Start Retard |
| Description_FAB | RPM Activated Switch |
| Description_INV | MSD 7AL-3; Pro Drag Race Ignition |
| Description_LAB | Proposition 65 |
| Description_MKT | The MSD 7AL-3(TM) is based off the well proven MSD 7AL-2 plus. It features a host of the most popular drag racing accessories. A built-in three step rev control provides three different rpm limits that can be used for the burnout, hole shot and top end overrev protection. There is also a multi-step retard with four different modules that can be activated at different times. Four 0 degree modules and a 2 degrees, 3 degrees and 4 degrees module are supplied. Many race engines with crank trigger systems or locked-out distributors will benefit from the 7AL-3's built-in start retard option. during cranking the start retard will retard the timing 25 degrees allowing the engine to turn over easier. When the engine starts, the timing will automatically go back to its mechanical setting. One last option is an RPM activated switch that allows you to activate a solenoid or shift light at an adjustable rpm. When the engine hits the desired rpm the RAS circuit provides a ground to the component to activate it. Vibration mounts, wires and detailed instructions are supplied. |
| Description_SHO | IgnCntrlModule |
| height | 4.5 |
| length | 13.0 |
| LTL | N |
| RPM | 14000 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 5.55 |
| width | 6.5 |
