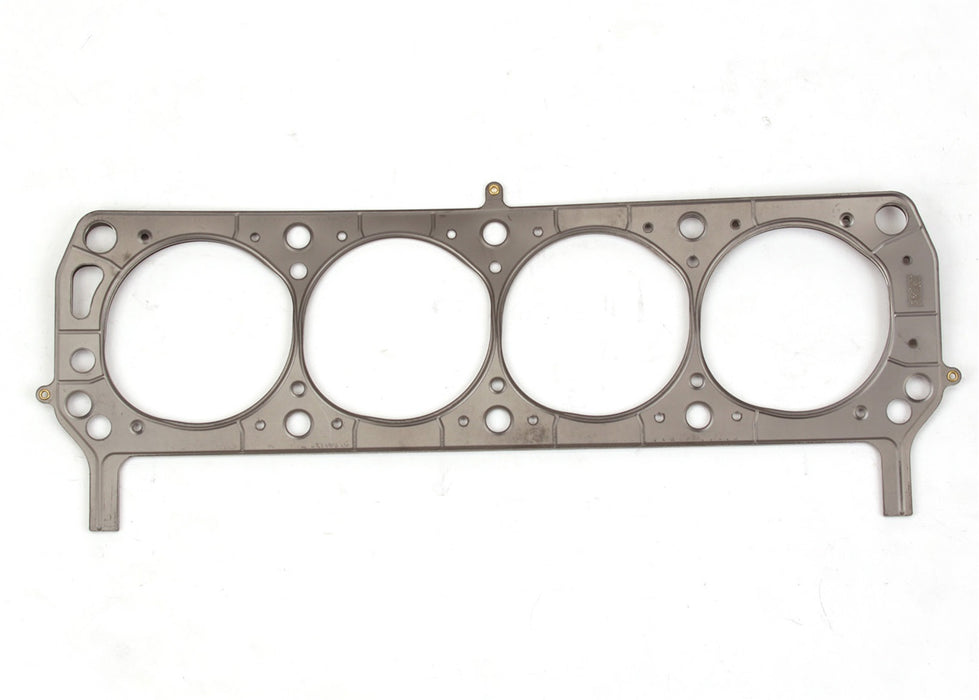

Mr Gasket 3165G MLS Head Gasket
by Mr Gasket
SKU ds_BCZG_3165G
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$197.19
-
Original price
$197.19
Original price
$197.19
$197.19
$197.19
-
$197.19
Current price
$197.19
Availability:
Out of stock
Description
Our unique head gasket embossment formation process optimizes the embossment radius reducing stress points, enhance gasket conformability, provide uniform clamp load distribution across the engine block deck, resulting in superior embossment surface contact between engine block and cylinder head. All head gasket layers/spacers go through an additional stress relieving process to significantly reduce forming induced stress. Advantages are reduced brittleness in material, increased flexibility and deformation retention. This stabilizes the gasket, resulting in reduced cylinder bore distortion and improved combustion seal around the cylinder bore (embossment profile) to seal extreme cylinder pressure found in high compression, supercharged and turbocharged engine applications. Our proprietary polymer coating ensures the micro-seal of engine coolant and oil fluids. A typical MLS head gasket requires a smoother (30Ra) surface finish than composite head gaskets. Mr. Gasket_s proprietary polymer coating will seal a surface finish twice as rough (60Ra) as a typical MLS head gasket. For high performance street, drag race and oval track use. Mr. Gasket provides a Lifetime Warranty for MLS cylinder head gaskets.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Bore Diameter | 4.100 in. |
| Compressed Thickness | 0.040 in. |
| Compression Ratio | 16:1 |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Engine Cylinder Head Gasket |
| Description_DES | MLS Head Gasket |
| Description_EXT | MLS Head Gasket; Nitrile Coated Outer Layers; Steel Inner Spacer; 4.1 in. Gasket Bore; 0.040 in. Compressed Thickness; Left Side; |
| Description_FAB | Excellent Radial Strength |
| Description_FAB | Maximum Sealing |
| Description_FAB | Reduced Bore Distortion |
| Description_FAB | Uniform Bolt Load Distribution |
| Description_INV | MLS HG FORD V8 SVO 4.100 L |
| Description_MKT | Our unique head gasket embossment formation process optimizes the embossment radius reducing stress points, enhance gasket conformability, provide uniform clamp load distribution across the engine block deck, resulting in superior embossment surface contact between engine block and cylinder head. All head gasket layers/spacers go through an additional stress relieving process to significantly reduce forming induced stress. Advantages are reduced brittleness in material, increased flexibility and deformation retention. This stabilizes the gasket, resulting in reduced cylinder bore distortion and improved combustion seal around the cylinder bore (embossment profile) to seal extreme cylinder pressure found in high compression, supercharged and turbocharged engine applications. Our proprietary polymer coating ensures the micro-seal of engine coolant and oil fluids. A typical MLS head gasket requires a smoother (30Ra) surface finish than composite head gaskets. Mr. Gasket_s proprietary polymer coating will seal a surface finish twice as rough (60Ra) as a typical MLS head gasket. For high performance street, drag race and oval track use. Mr. Gasket provides a Lifetime Warranty for MLS cylinder head gaskets. |
| Description_MKT | Our unique Multi-Layered steel head gasket embossment formation process optimizes the embossment radius, reduces stress points, enhances gasket conformability, and provides uniform clamp load distribution. This all results in superior surface contact between block and cylinder head. All head gasket layers/spacers go through an additional process to significantly reduce forming induced stress. Advantages are reduced brittleness in material, increased flexibility and deformation retention. This stabilizes the gasket, resulting in reduced cylinder bore distortion and improved combustion seal fro the extreme cylinder pressures found in high compression, supercharged and turbocharged applications. A proprietary polymer coating ensures the micro-seal of engine coolant and oil fluids.A typical MLS head gasket requires a smoother (30Ra) surface finish than composite head gaskets. Mr. Gaskets proprietary polymer coating will seal a surface finish twice as rough (60Ra) as a typical MLS head gasket. For high performance street, drag race and oval track use. Mr. Gasket provides a Limited Lifetime Warranty for MLS cylinder head gaskets. |
| Description_SHO | Head Gasket |
| Engine Make/Size | Ford Small Block Windsor |
| Gasket Line | MLS |
| height | 0.2 |
| length | 29.0 |
| LTL | N |
| Material | Multi-Layered Steel |
| Package Quantity | 1 |
| Package Type | Retail |
| Position | N/A |
| WARNING CA Proposition 65 | No |
| weight | 0.6 |
| width | 10.0 |
