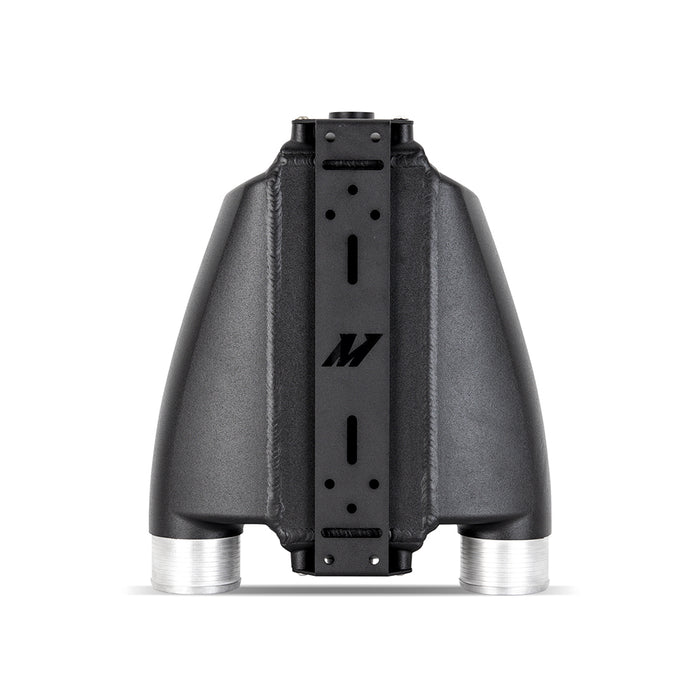

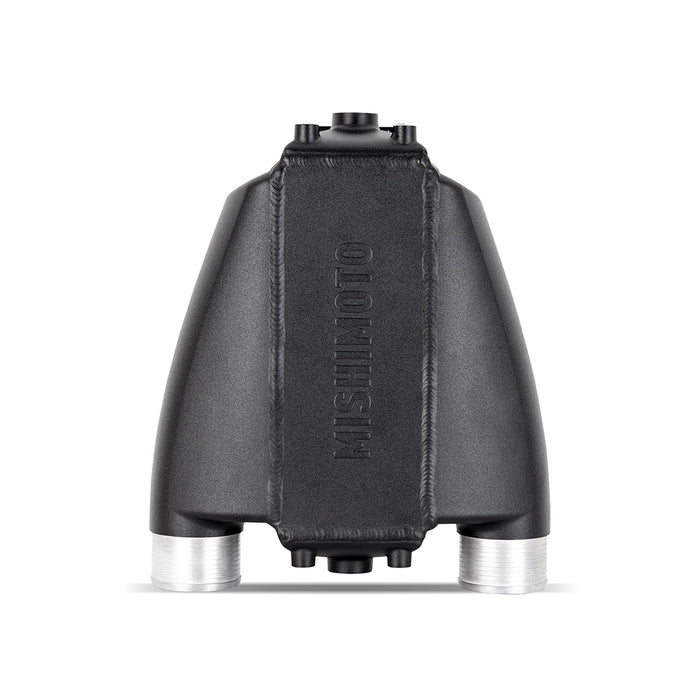

Mishimoto MMINT-A2W-SP-1 Air-to-Water Intercooler, Single-Pass Coolant, 500HP-Same Side Inlet/Outlet
by Mishimoto
SKU ds_FLDS_MMINT-A2W-SP-1
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$849.46
-
Original price
$849.46
Original price
$849.46
$849.46
$849.46
-
$849.46
Current price
$849.46
Availability:
Only 1 left!
Description
Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers. Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower. When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping. Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -16ORB coolant ports into the core and providing a sturdy 1/8" thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -16ORB Aluminum Fitting selection . Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat. As with all our products, these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty.
Specifications
| Description_DEF | Intercooler Kit |
| Description_DES | Air-to-Water Intercooler, Single-Pass Coolant, 500HP-Same Side Inlet/Outlet |
| Description_EXT | Universal Air-to-Water Intercooler, Single-Pass Coolant Flow |
| Description_FAB | -12ORB coolant ports provide leak-free line connections |
| Description_FAB | Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings |
| Description_FAB | All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure |
| Description_FAB | Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow |
| Description_FAB | Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp |
| Description_FAB | Cast-aluminum end tanks are custom engineered to yield superb airflow and durability |

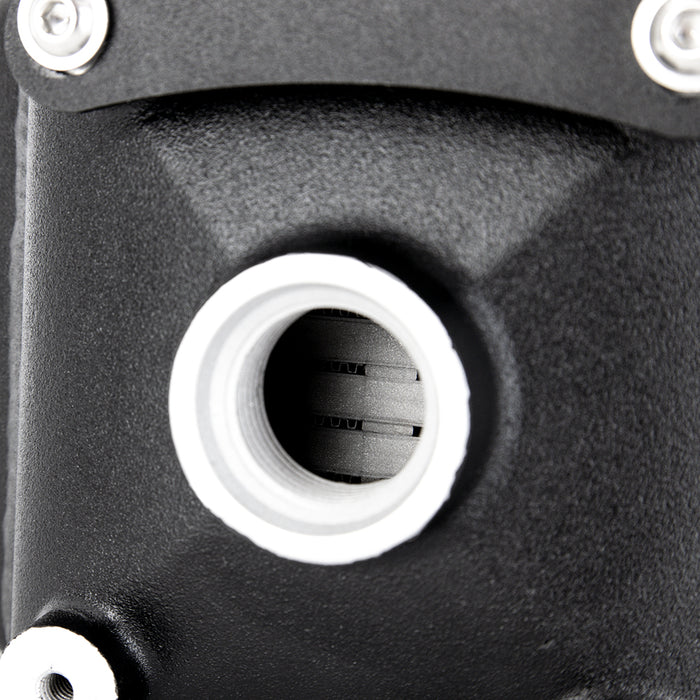

| Description_FAB | CNC-machined ribbed airflow inlet/outlet produces secure coupler connections |
| Description_FAB | Highly efficient air-to-water design delivers effective cooling in a compact package |
| Description_FAB | Includes robust 1/8" thick steel mounting bracket and hardware |
| Description_FAB | Mishimoto Lifetime Warranty |
| Description_FAB | Multiple core sizes to choose from to fit the needs of your project |
| Description_FAB | Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup |
| Description_FAB | Sleek, subtle, and durable micro-wrinkle black powder coat finish |
| Description_INV | Mishimoto MMINT-A2W-SP-1 |
| Description_MKT | Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers. Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower. When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping. Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -16ORB coolant ports into the core and providing a sturdy 1/8" thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -16ORB Aluminum Fitting selection . Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat. As with all our products, these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty. |
| Description_SHO | Intercooler Kit |
| height | 10.0 |
| length | 21.0 |
| LTL | N |
| weight | 28.0 |
| width | 18.0 |
