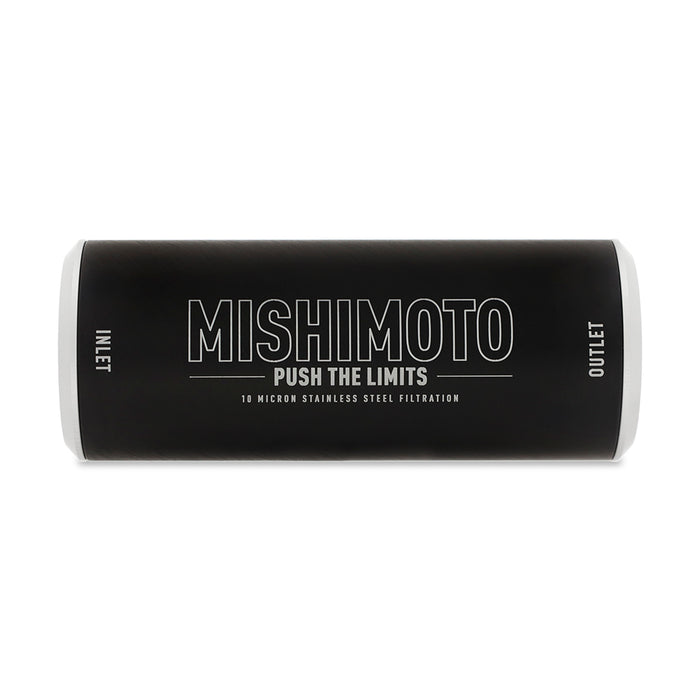

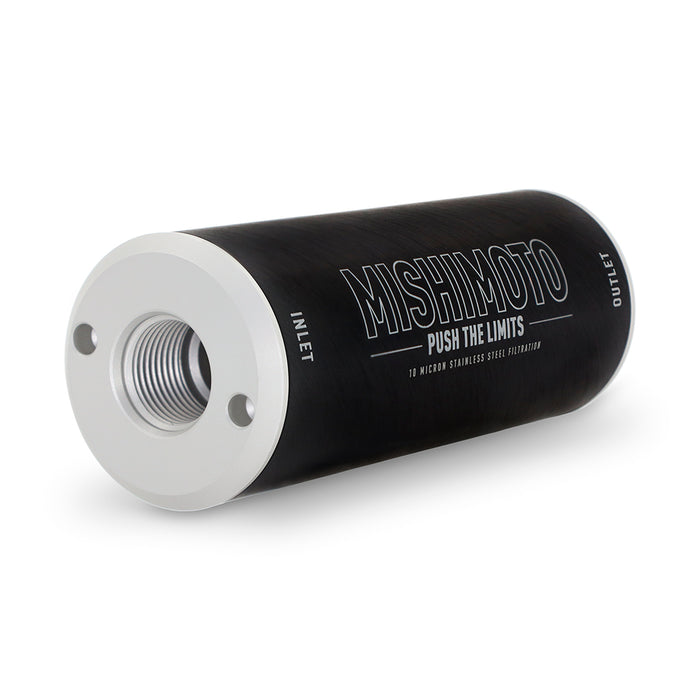

Mishimoto MMFF-SL-S010 High-Performance -10AN Fuel Filter, Slim, 10-Micron Stainless-Steel Insert
by Mishimoto
SKU ds_FLDS_MMFF-SL-S010
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$354.69
-
Original price
$354.69
Original price
$354.69
$354.69
$354.69
-
$354.69
Current price
$354.69
Availability:
Out of stock
Description
Building a high-performance vehicle is an expensive endeavor that requires meticulous planning of every square inch and when horsepower is nearing the 4-digit mark, one oversight can cause catastrophic failure. Each vehicle system needs to be running at peak performance, but no other system can cause thousands of dollars of damage faster than fuel. An undersized or clogged fuel injector, pump, or filter can cause too little fuel flow to the engine, resulting in not only a loss of power, but also excessive heat. Even short periods of high cylinder temps can lead to detonation, melted pistons, or a seized engine and thousands of dollars in repairs. The best way to prevent fueling issues is to install the best quality components from tank to injector, and our Mishimoto high-performance fuel filters fit the bill. This fuel filter utilizes a slim extruded-aluminum body that measures just over 2-inch diameter to save space and make mounting easy. The high-flow filter cartridge and -10 ORB ports to provide up to 198 GPH (750 LPH). This fuel filter features an easy to replace cartridge-style insert in your choice of cellulose paper for petroleum-based fuels or welded stainless-steel for use with alcohol-based fuels. Both our cellulose and stainless-steel filters are available with a 10-micron rating for use between the pump and fuel rail, while the stainless-steel inserts are also available with a 100-micron rating for pre-pump filtering. Our filter inserts feature high-quality Viton O-rings and are rated to withstand up to 116 PSI for reliable performance on even the most demanding vehicles. Over 60 sq. in. of filter surface area protects valuable fuel pumps and injectors while allowing minimal pressure drop.
Specifications
| Description_DEF | Fuel Filter |
| Description_DES | High-Performance -10AN Fuel Filter, Slim, 10-Micron Stainless-Steel Insert |
| Description_EXT | Mishimoto High-Performance -10AN Fuel Filter, Slim |
| Description_FAB | -10 ORB inlets ensure adequate fuel flow and low pressure drop in all situations |
| Description_FAB | 10-micron filters recommended between pump and fuel rail |
| Description_FAB | 100-micron filters recommended before fuel pump |
| Description_FAB | Available with cellulous filter for petroleum-based fuels or reusable stainless-steel filter for alcohol-based fuels |
| Description_FAB | Extruded and anodized aluminum body is lightweight and durable to withstand the rigors of racing |
| Description_FAB | Flows up to 198 GPH (750 LPH) for high-horsepower builds |
| Description_FAB | High-quality Viton O-rings prevent leaking under high pressures |
| Description_FAB | Mishimoto Lifetime Warranty |
| Description_FAB | Over 60 sq. in. of surface area reduces risk of clogging and improves filtration |
| Description_FAB | Rated to withstand up to 116 PSI working fuel pressure |
| Description_FAB | Replaceable 100 and 10-micron filters for superior protection of vital fuel system components |
| Description_FAB | Requires Mishimoto High-Performance Fuel Filter Brackets |
| Description_FAB | Slim 2.16" (55mm) diameter body for mounting versatility and light weight |
| Description_INV | Mishimoto MMFF-SL-S010 |
| Description_MKT | Building a high-performance vehicle is an expensive endeavor that requires meticulous planning of every square inch and when horsepower is nearing the 4-digit mark, one oversight can cause catastrophic failure. Each vehicle system needs to be running at peak performance, but no other system can cause thousands of dollars of damage faster than fuel. An undersized or clogged fuel injector, pump, or filter can cause too little fuel flow to the engine, resulting in not only a loss of power, but also excessive heat. Even short periods of high cylinder temps can lead to detonation, melted pistons, or a seized engine and thousands of dollars in repairs. The best way to prevent fueling issues is to install the best quality components from tank to injector, and our Mishimoto high-performance fuel filters fit the bill. This fuel filter utilizes a slim extruded-aluminum body that measures just over 2-inch diameter to save space and make mounting easy. The high-flow filter cartridge and -10 ORB ports to provide up to 198 GPH (750 LPH). This fuel filter features an easy to replace cartridge-style insert in your choice of cellulose paper for petroleum-based fuels or welded stainless-steel for use with alcohol-based fuels. Both our cellulose and stainless-steel filters are available with a 10-micron rating for use between the pump and fuel rail, while the stainless-steel inserts are also available with a 100-micron rating for pre-pump filtering. Our filter inserts feature high-quality Viton O-rings and are rated to withstand up to 116 PSI for reliable performance on even the most demanding vehicles. Over 60 sq. in. of filter surface area protects valuable fuel pumps and injectors while allowing minimal pressure drop. |
| Description_SHO | Fuel Filter |
| height | 3.0 |
| length | 8.0 |
| LTL | N |
| weight | 1.0 |
| width | 3.0 |
