Mile Marker 77-53141W 8000 LB Winch Waterproof 4.9 HP Series Wound 12V Motor W/ 92 Foot Synthetic Rope SEC8 Scout ES Mile Marker
by Mile Marker
SKU ds_BCBT_77-53141W
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$940.89
-
Original price
$940.89
Original price
$940.89
$940.89
$940.89
-
$940.89
Current price
$940.89
Description

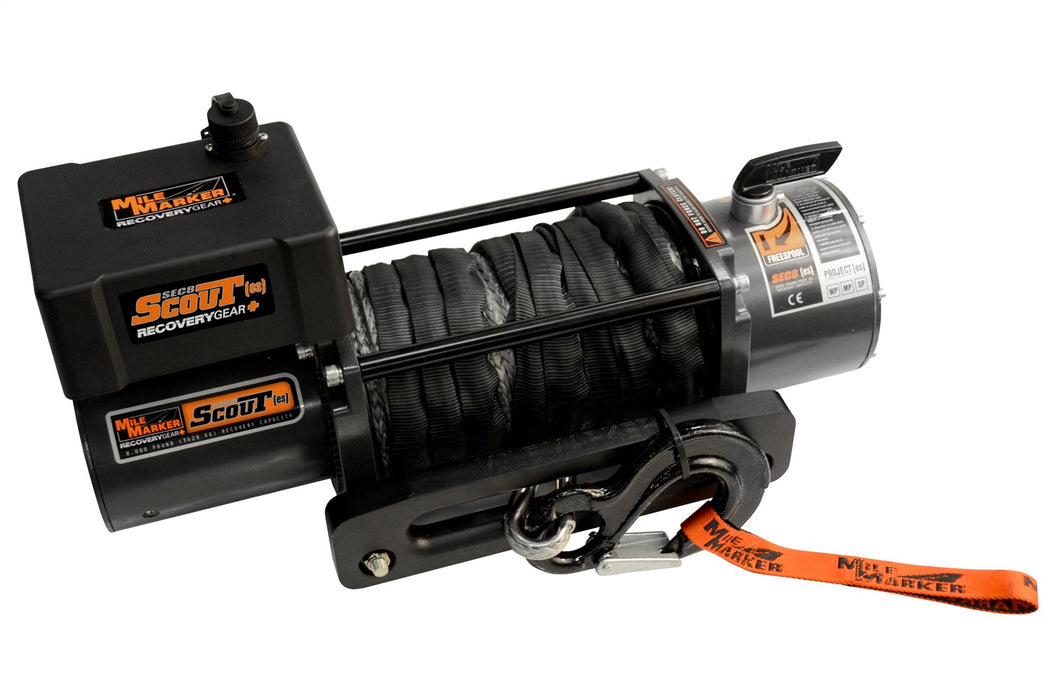

The Mile Marker SEC8 is a no-frills, down to business winch with 8,000 pounds of pulling power. Boasting blazing line speeds, a high output 4.9 HP series wound motor, and an automatic load-holding brake system, this is the essential winch for overland explorers and competition rigs seeking to quench their adventurous thirst as they traverse the globe foots harshest conditions.
Fully-sealed, submersible, water, mud, and snow proof, the SEC8 includes a 5/16 inch x 92 foot synthetic rope, an anodized aluminum hawse fairlead, stainless steel hardware, a hook, corrosive-resistant, and a handheld remote control with a 12 foot cord.
Features:
- 4.9 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless Steel Fasteners
- 92 foot Synthetic Rope
- Aluminum Hawse Fairlead
- Waterproof

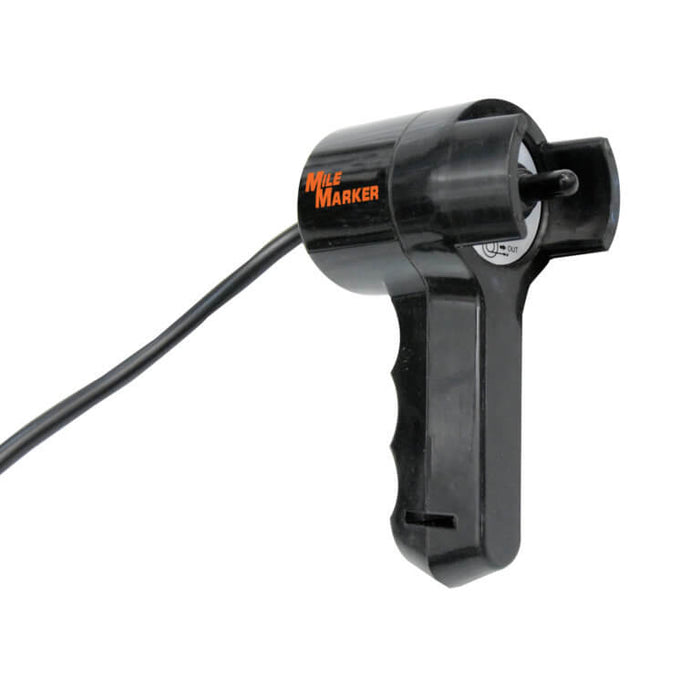

- Handheld Remote control
Specifications:
- Rated line pull 8000 lbs (3629 Kg)
- Gear Train 3 Stage Planetary
- Gear Ratio 150:1
- Motor Series Wound, 4.9 hp (3.6 kw), 12 v
- Remote Control Power-In, Power-Out Remote, 12 foot (3.7 m)
- Dimensions (LxWxH) 21.50 inch X 6.25 inch X 8.00 inch (546.1 mm X 158.8 mm X 203.2 mm)
- Synthetic Rope 5/16 inch X 92 foot (nominal 15,000 lbs, 6804 kg) (7.94 mm X 28 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 57.5 lbs. (37 kg)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 92 Foot |
| Description_DES | SEC8 Scout ES Waterproof Winch |
| Description_EXT | SEC8 Scout ES Waterproof Winch; 8000 lbs. Rated Line Pull; 12V Motor; w/Synthetic Rope; |
| Description_FAB | Automatic Load-Holding Brake |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_FAB | Waterproof - Fully Submersible |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 150:01:00 |
| gear_train | Planetary |
| height | 14.0 |
| last_update | 2022-03-06 03:54:27 |
| length | 24.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 8000 LB |
| Series | ES Series |
| sold_as | Each |
| Style | Electric Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| volts | 12 Volt |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 57.0 |
| width | 8.66 |
| winch_motor | 4.9 HP Series Wound Motor |
