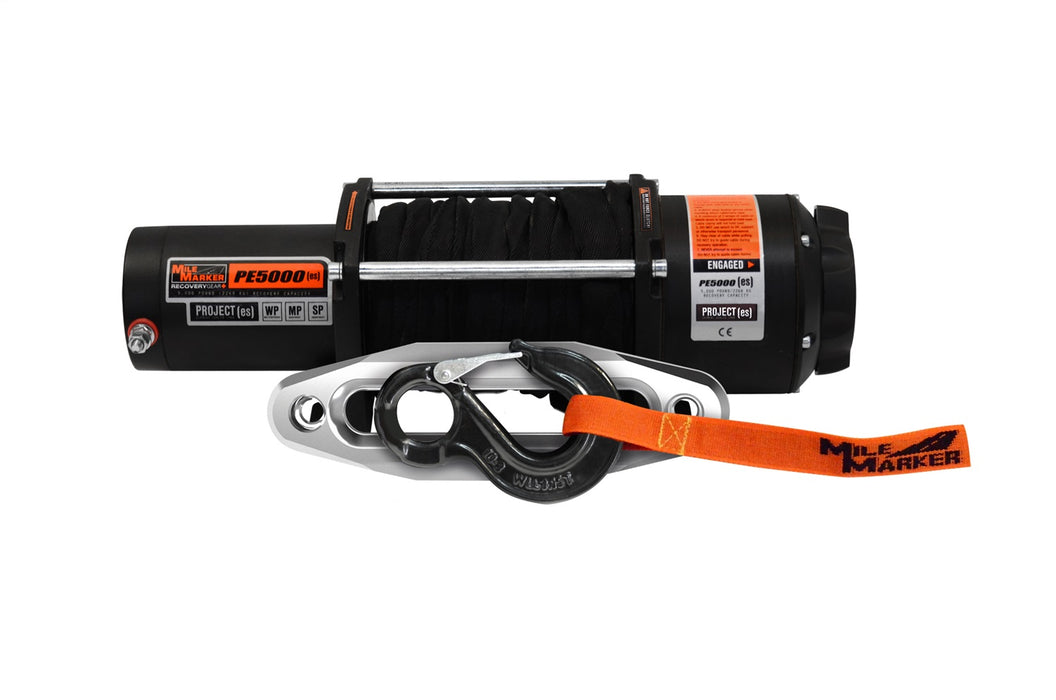

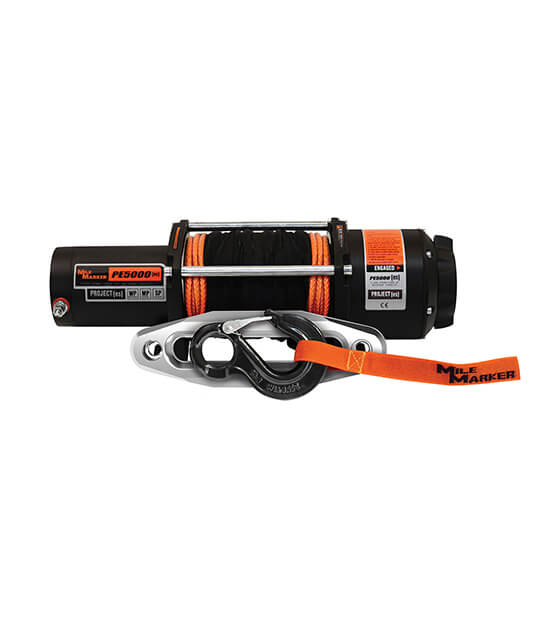

Mile Marker 77-53120W 5000 LB Winch Waterproof 12V 3.8 HP Permanent Magnet Motor w/1/4 x 50 Foot Synthetic Rope PE5000 ES Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
The PE5000 series winch is a mini-monster of UTV recovery power packed into a sleek, compact design. Featuring an all-metal, 3-stage planetary gear system, a submersible, 250-amp solenoid, and 5,000 pounds of pulling capacity, at only 19 pounds there is nowhere this winch can go.
Fully-sealed, submersible, water, mud, and snow proof, the PE5000 includes a 1/4 inch x 50 foot synthetic rope, an aluminum hawse fairlead, a hook, corrosive-resistant, and a handheld remote control for versatility and convenience.
Mile Marker Industries has been the leader in high quality, highly durable, hydraulic and electric winches, mounting systems, locking hubs, snatch blocks, shackles, tow and rigging ropes, recovery kits, vehicle accessories and more to off-road motorists for over 3 decades.
You can trust a Mile Marker product on your ride. All our military products undergo rigorous testing and each is rated for the highest break strength standard in the industry and are constructed from quality USA made materials.
When you need high quality, highly reliable, well-tested products for your ATV or 4x4, having Mile Marker on your vehicle gives you the confidence and piece of mind you want.
Getting out and enjoying life is what you live for, Mile Marker had your winch needs covered so you can keep making memories, getting the job done and taking on new adventures. Mile Marker has your back. Welcome to the Family!
Features:
- 3.8 HP Permanent Magnet Motor
- All Metal Planetary Gearing
- Submersible, 250 Amp Solenoid
- Automatic Load Holding Brake
- Center Focused Drum
- Fast Line Speeds
- 50 foot of Synthetic Rope
- Aluminum Hawse Fairlead
- Waterproof

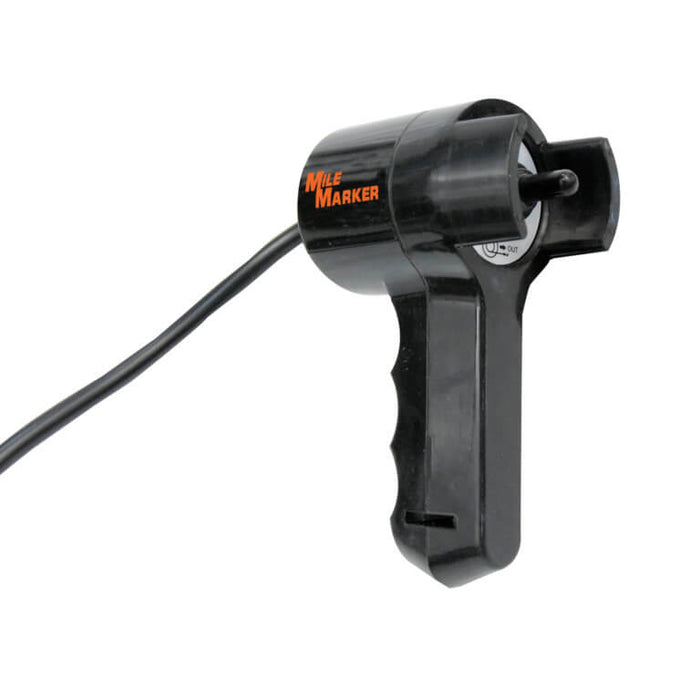

- Handheld Remote Controls
Specifications:
- Rated line pull 5000 lbs.
- Gear Train 3 Stage Planetary
- Gear Ratio 165:1
- Motor 12 Volt DC, input power 3.8hp (2.8 kw)
- Remote Control Power-In, Power-Out Remote
- Synthetic Rope 1/4 inch X 50 foot
- Drum Size 2.01 inch X 5.4 inch (51.1 mm X 137.16 mm)
- Net weight (Cable) 19 lbs. (8.6 kg)
- Bolt Pattern 4 Bolt pattern, 3 inch X 6.61 inch (79 mm X 168 mm)
- Dimensions (LxWxH) 15.62 inch X 4.61 inch X 4.72 inch (397MM X 117 mm X 120 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 50 Foot |
| Description_DES | PE5000 ES Waterproof Winch |
| Description_EXT | PE5000 ES Waterproof Winch; 5000 lbs. Rated Line Pull; 12V Winch; 3.8 HP; Permanent Magnet Motor; w/1/4 in. x 50 ft. Synthetic Rope; |
| Description_FAB | Center Focused Drum |
| Description_FAB | Fast Line Speeds |
| Description_FAB | Freespooling |
| Description_FAB | Fully Sealed |
| Description_FAB | High Output Motors |
| Description_FAB | Load Holding Brake |
| Description_FAB | Marine Grade Remote Control Connectors |
| Description_FAB | New Hause Fairlead Design |
| Description_FAB | Roller Fairlead |
| Description_FAB | Submersible 300 Amp Solenoid |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mile Marker's new UTV winch slams the raw recovery power of its full-size brothers into a sleek, compact package. This mini-monster features all-metal, planetary gear systems for unmatched reliability in a UTV recovery system. With a submersible, 300-amp solenoid, there is nowhere this winch can't go. The PE5000(es) Winch packs enough punch to take on the most daunting tasks. |
| Description_SHO | Winch |
| drum_diameter | 2.01x5.4 Inch |
| gear_ratio | 165:01:00 |
| gear_train | Planetary |
| height | 8.0 |
| last_update | 2022-03-06 03:54:29 |
| length | 14.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 5000 LB |
| Series | ES Series |
| sold_as | Each |
| Style | Electric Winch |
| Universal | Yes |
| vehicle_type | ATV/UTV|Trailer |
| volts | 12 Volt |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 19.0 |
| width | 20.5 |
| winch_motor | 3.7 HP Permanent Magnet Motor |
