Mile Marker 77-53112BW 3500 LB Winch Waterproof 12V 2.4 HP Permanent Magnet Motor w/Synthetic Rope Aluminum Fairlead PE3.5 ES Mile Marker
by Mile Marker
SKU ds_BCBT_77-53112BW
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$586.57
-
Original price
$586.57
Original price
$586.57
$586.57
$586.57
-
$586.57
Current price
$586.57
Availability:
Only 3 left!
Description

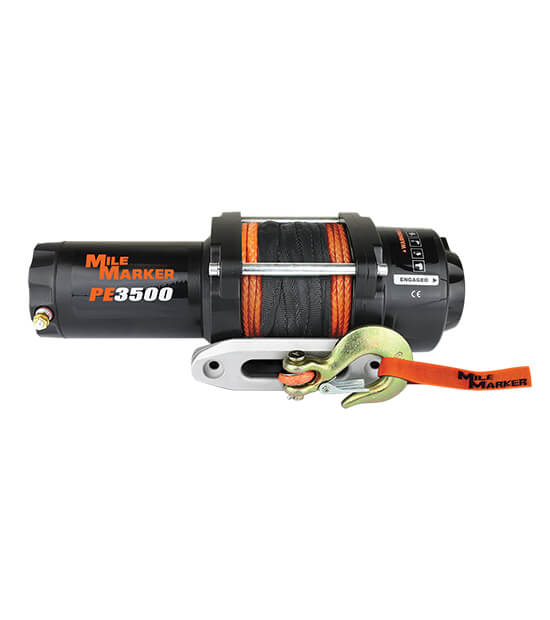

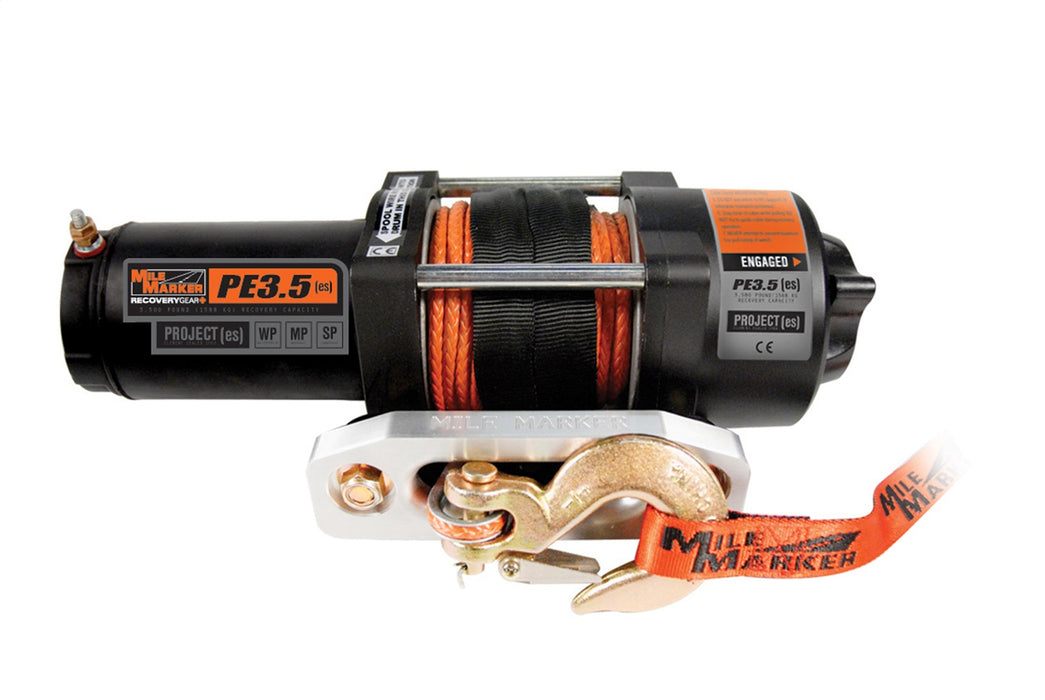

At less than 16 pounds, the Mile Marker PE3500winch for ATVs boasts top-of-the-line recovery speeds and an impressive 3500 pounds of pulling capacity.

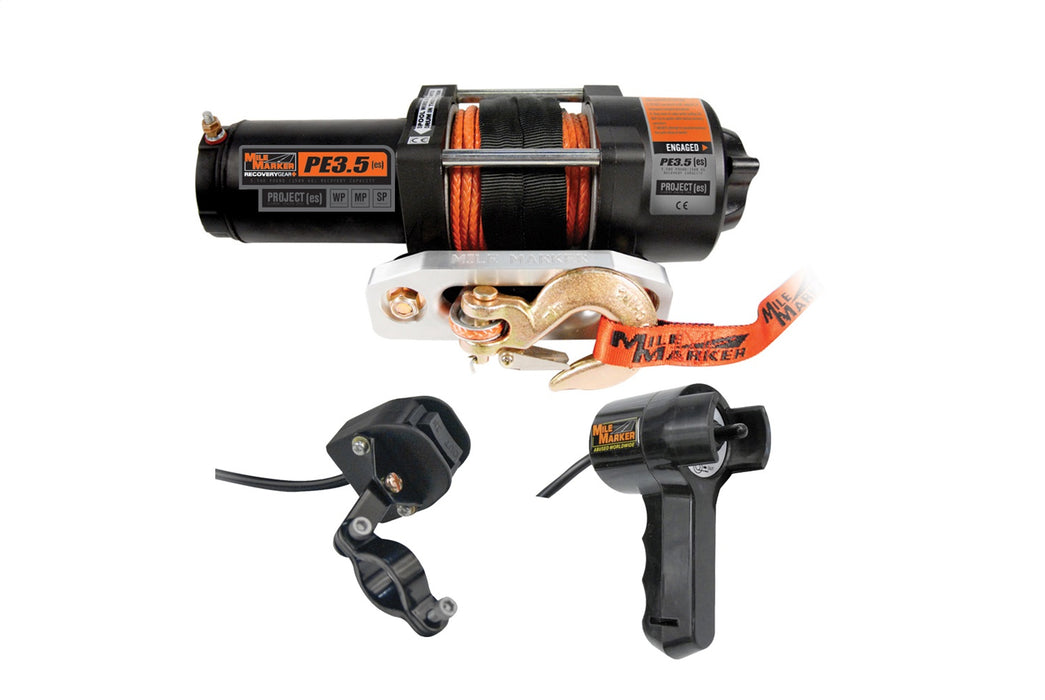

Fully-sealed, submersible, water, mud, and snow proof, the PE3500 includes a 7/32 inch x 50 foot synthetic rope, an aluminum hawse fairlead, a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience.
With the all-metal, 3-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE3500 provides the durability and reliability you can depend on in the most extreme situations.
Features:
- 2.4 HP Permanent Magnet Motor
- All Metal Planetary Gearing
- Submersible, 200 Amp Solenoid
- Automatic Load Holding Brake
- Center Focused Drum
- Fast Line Speeds
- 50 foot of Synthetic Rope
- Aluminum Hawse Fairlead
- Waterproof

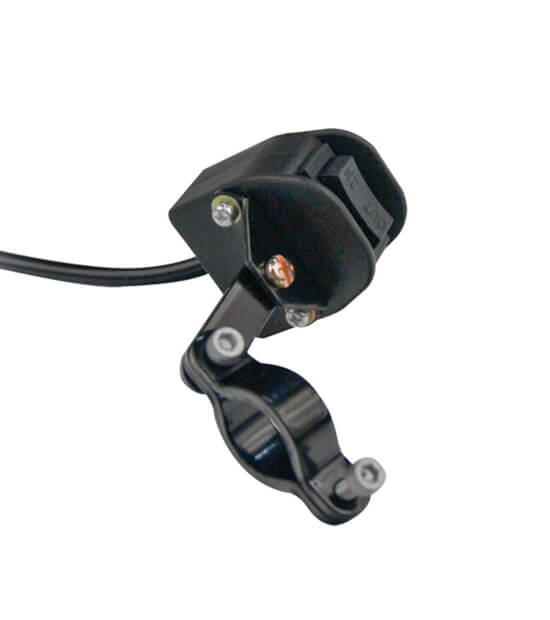

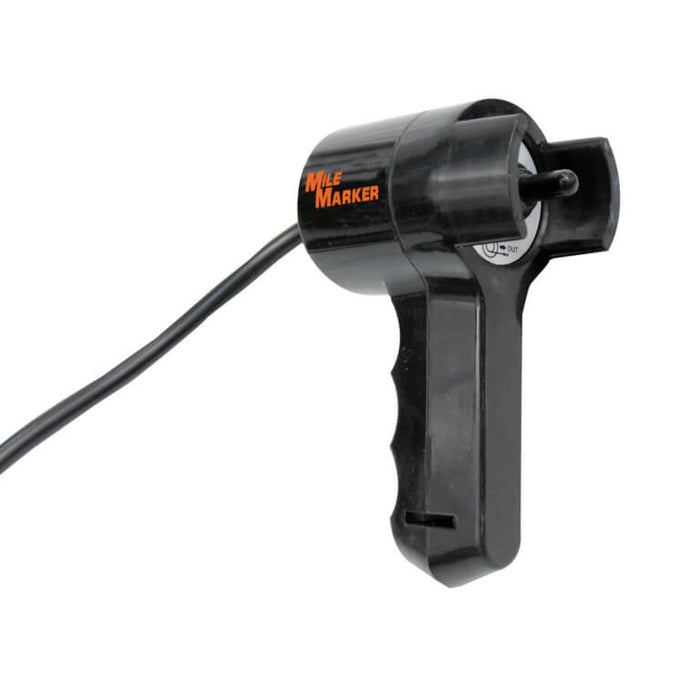

- Handheld and Handlebar Remote Controls
Specifications:
- Rated line pull 3500 lbs (1588 kg) Single Line
- Gear Train 3 Stage Planetary
- Gear Ratio 242:1
- Motor Permanent Magnet, 2.4 hp (1.5kw), 12 V DC
- Remote Control Power-In, Power-Out Remote, 12 foot (3.6 m)
- Dimensions (LxWxH) 13.0 inch X 4.1 inch X 4.2 inch (330 mm X 105 mmX 108 mm)
- Synthetic Rope 7/32 inch X 50 foot (nominal 5440 lbs, 2468 kg) (5.5 mm X 15.2 m)
- Drum Size Diameter/Length 1.5 inch X 3.15 inch (38.1 mm X 80 mm)
- Net weight 15.9 lbs (9.4 kg)
- Bolt Pattern 4 Bolt Pattern, 4.88 inch X 3 inch (124 mm X 76.2 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 50 Foot |
| Description_DES | PE3.5 ES Waterproof Winch |
| Description_EXT | PE3.5 ES Waterproof Winch; 3500 lbs. Rated Line Pull; 12V Motor; w/Synthetic Rope/Aluminum Fairlead; |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Permanent Magnetic Motor |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 1.5x3.15 Inch |
| gear_ratio | 242:01:00 |
| gear_train | Planetary |
| height | 5.0 |
| last_update | 2022-03-06 03:54:29 |
| length | 13.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 3500 LB |
| Rated Single Line Pull (lbs.) | 3500 |
| Series | ES Series |
| sold_as | Each |
| Style | Electric Winch |
| Type | ATV |
| Universal | Yes |
| vehicle_type | ATV/UTV|Trailer |
| Voltage | 12 DC |
| volts | 12 Volt |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 29.0 |
| width | 5.0 |
| winch_motor | 2.4 HP Permanent Magnet Motor |
