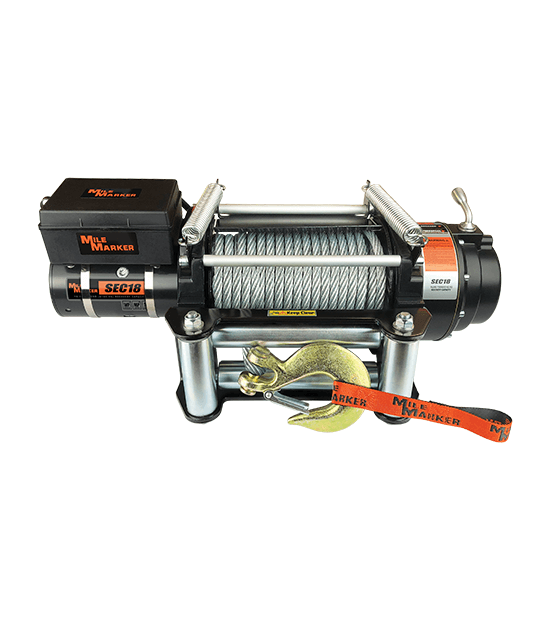

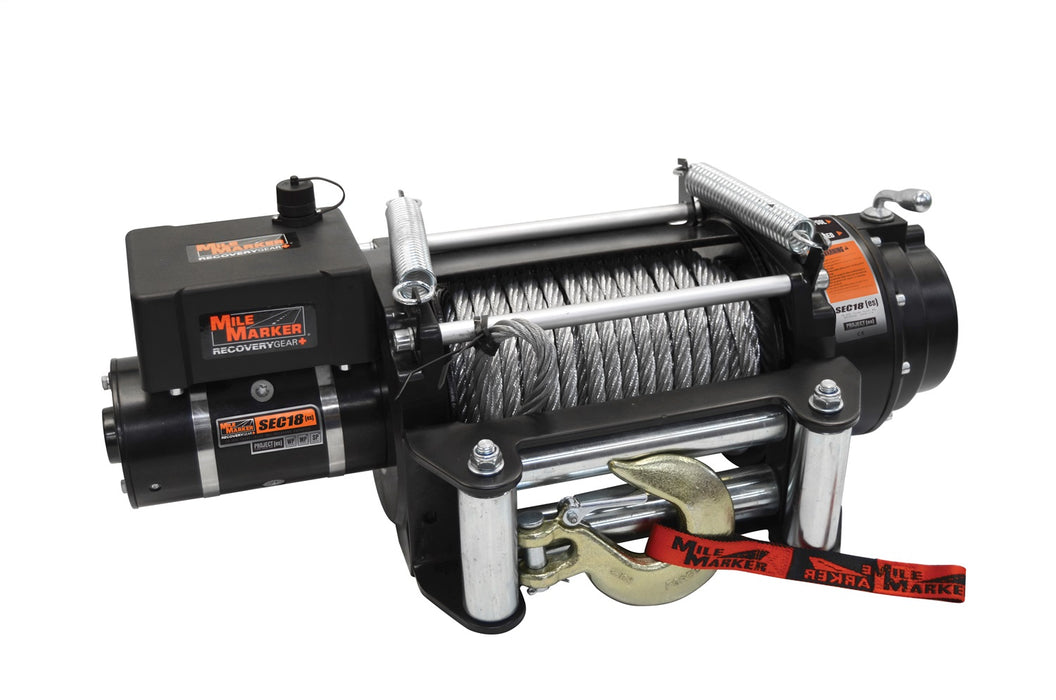

Mile Marker 77-50280W 18000 LB Winch 7.7 HP Series Wound Motor 79 Foot Steel Cable SEC18 ES Premium Mile Marker
by Mile Marker
SKU ds_BCBT_77-50280W
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,306.82
-
Original price
$2,306.82
Original price
$2,306.82
$2,306.82
$2,306.82
-
$2,306.82
Current price
$2,306.82
Availability:
Only 2 left!
Description
Strongest Electric Winch, The SEC18 pulls 18,000 pounds of recovery power. This industrial grade winch is perfect for your tow truck, fire truck, utility vehicle, or industrial DC. Our SEC18 is lightweight for its strength and features fast line speeds.
Mile Marker's most powerful winch to date: SEC18. With 18,000 lbs. of pulling and recovery power, this electric winch can be utilized in many applications, from tow trucks to industrial DC due to its relatively light weight and wide range of flow accommodations. The SEC18 features fast line speeds and is completely sealed.
Features:
- 7.7 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless Steel
- Fasteners
- 79 foot Steel Cable
- Roller Fairlead
- Waterproof

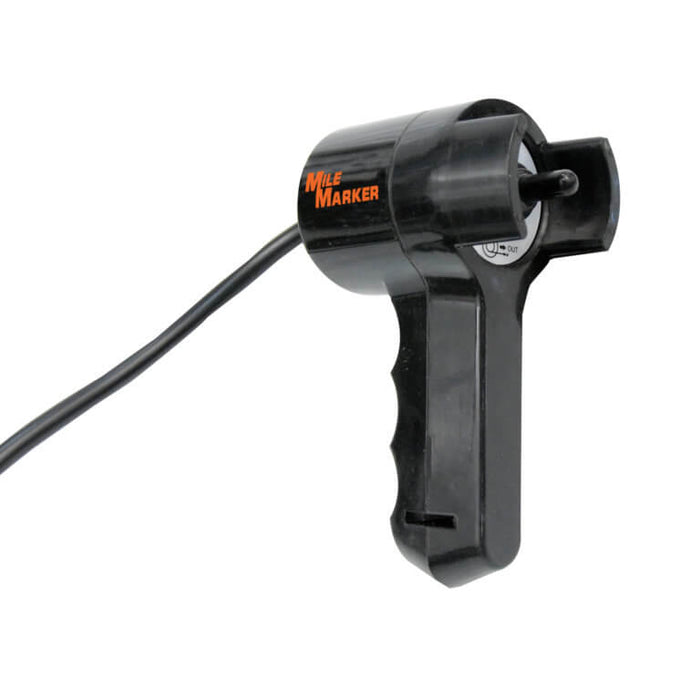

- Handheld Remote Control
Specifications 18k:
- Rated Line Pull 18000 lbs. (8164 kg)
- Gear Train 3 Stage planetary
- Gear Ratio 315:1
- Motor 12 Volt DC, input power 7.7 hp (5.6 kw)
- 24 Volt available
- Remote Power in, Power out with 12 foot cable (3.7 m)
- Dimensions (LxWxH) 26 inch X 8.5 inch X 8.5 inch (662 mm X 214 mm X 214 mm)
- Steel Cable 1/2 inch X 79 foot (12.7 mm X 24 m)
- (19,505 lb. breaking strength)
- Drum Size: Diameter x Length 4 inch X 10 inch (101.6 mm X 254 mm)
- Flange Diameter 9 inch (228.6 mm)
- Net Weight 154 lb. (69.8 kg)
- Bolt Pattern
- 8 bolt pattern
- Outer 6.5 inch X 12 inch (165 mm X 304.8 mm)
- Inner 4.5 inch X 12 inch (114.3 mm X 304.8 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 8 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 79 Foot |
| Description_DES | SEC18 ES Premium Winch |
| Description_EXT | SEC18 ES Premium Winch; For Truck/SUV; 18000 lb. Capacity; |
| Description_FAB | Automatic Load-Holding Brake |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_FAB | Waterproof - Fully Submersible |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mile Marker's most powerful electric winch to date: the SEC18(es). With 18,000 pounds of pulling and recovery power, this electric winch can be utilized in many applications from tow trucks to industrial DC; due to its relatively light weight and wide range of accommodations. The SEC18(es) features fast line speed, is completely sealed, and meets SAE J706 Standards. |
| Description_SHO | Winch |
| drum_diameter | 4x10 Inch |
| gear_ratio | 315:01:00 |
| gear_train | 3 Stage Planetary |
| height | 12.25 |
| last_update | 2022-03-06 03:54:32 |
| length | 30.25 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 18000 LB |
| Series | Sec18 Series |
| sold_as | Each |
| Style | Electric Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| volts | 12 Volt DC |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 148.0 |
| width | 16.25 |
| winch_motor | 7.7 HP Series Wound Motor |
