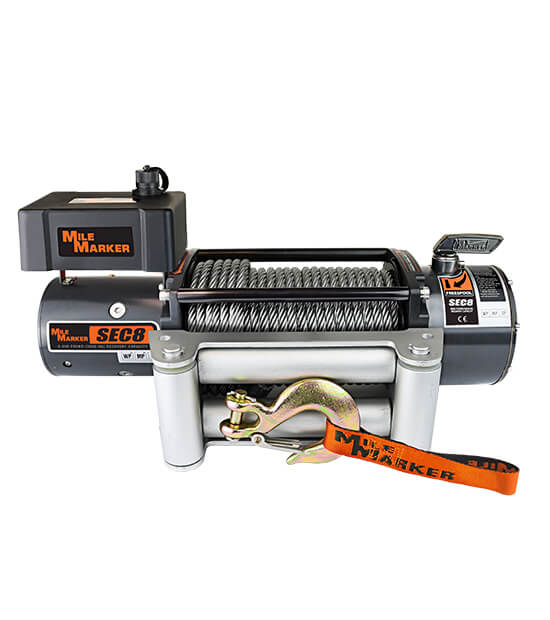

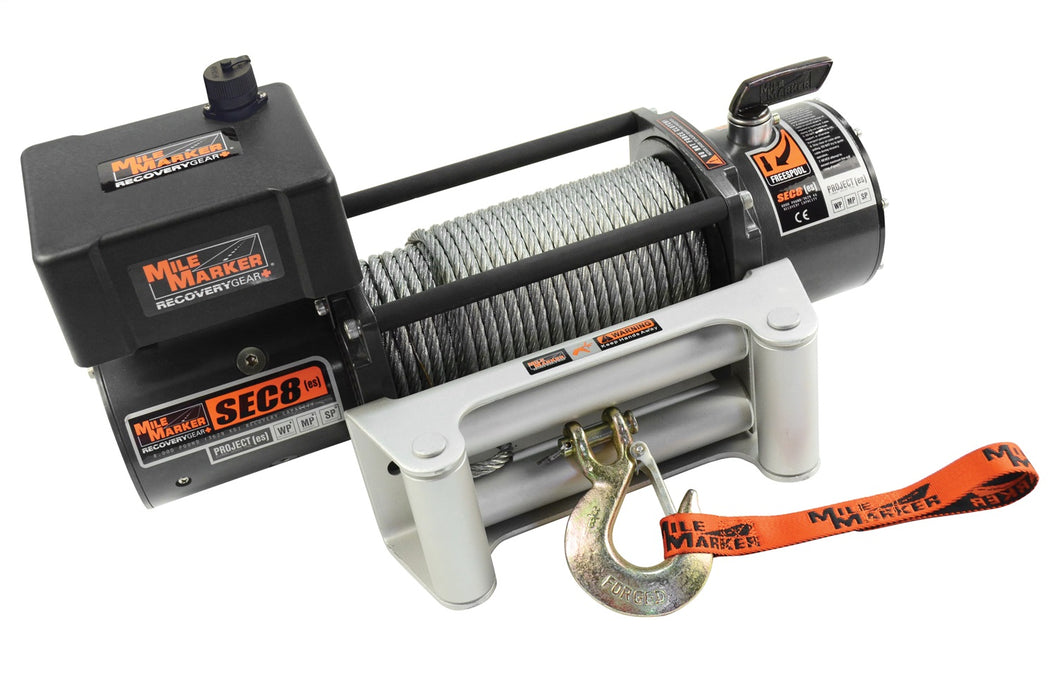

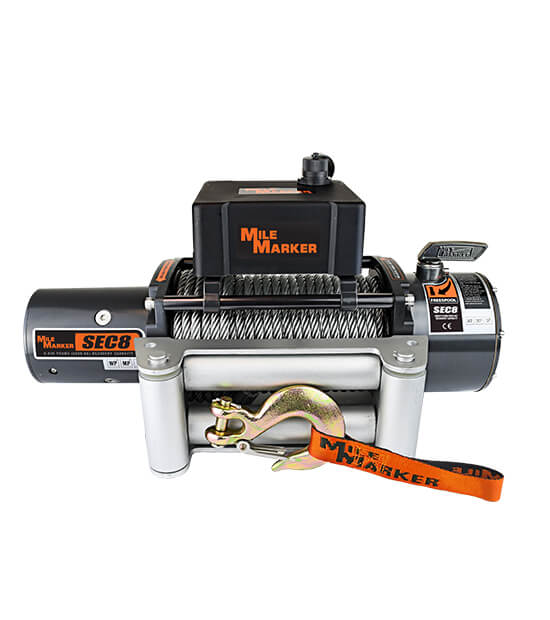

Mile Marker 77-50141W 8000 LB Winch 100 Foot Steel Cable Waterproof 4.8 HP Series Wound Motor 12V SEC8 ES Mile Marker
by Mile Marker
SKU ds_BCBT_77-50141W
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,145.71
-
Original price
$1,145.71
Original price
$1,145.71
$1,145.71
$1,145.71
-
$1,145.71
Current price
$1,145.71
Availability:
4+ in stock
Description
The Mile Marker SEC8 is a no-frills, down to business winch with 8,000 pounds of pulling power. Boasting blazing line speeds, a high output 4.9 HP series wound motor, and an automatic load-holding brake system, this is the essential winch for overland explorers and competition rigs seeking to quench their adventurous thirst as they traverse the globe's harshest conditions.
Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC8 comes with a 5/16 Inch x 100 foot steel cable, a roller fairlead, stainless steel hardware, corrosive-resistant, a hook, and a handheld remote control with a 12 foot cord.
Features:
- 4.9 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless Steel Fasteners
- 100 foot Steel Cable
- Roller Fairlead
- Waterproof

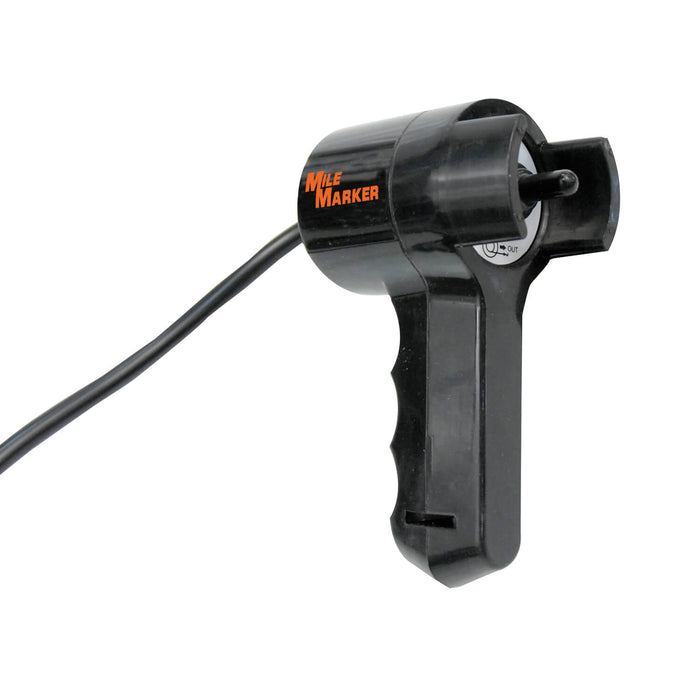

- Handheld Remote control
Specifications:
- Rated line pull 8000 lbs (3629 Kg)
- Gear Train 3 Stage Planetary
- Gear Ratio 150:1
- Motor Series Wound, 4.9 hp (3.6 kw), 12 v
- Remote Control Power-In, Power-Out Remote, 12 foot (3.7 m)
- Dimensions (LxWxH) 21.50 Inch X 6.25 Inch X 8.00 Inch (546.1 mm X 158.8 mm X 203.2 mm)
- Steel Cable 5/16 Inch X 100 foot (nominal 9,800 lbs, 4445 kg) (7.94 mm X 30.5 m)
- Drum Size 2.5 Inch X 9 Inch (63.5 mm X 228.6 mm)
- Net weight 81 lbs (37 kg)
- Bolt Pattern 4 Bolt Pattern, 4.5 Inch X 10 Inch, (114.3 mm X 254 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 100 Foot |
| Description_DES | SEC8 ES Waterproof Winch |
| Description_EXT | SEC8 ES Waterproof Winch; 8000 lbs. Rated Line Pull; 12V Motor; 4.8 HP; |
| Description_FAB | Automatic Load-Holding Brake |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_FAB | Waterproof - Fully Submersible |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 150:01:00 |
| gear_train | Planetary |
| height | 14.0 |
| last_update | 2022-03-06 03:54:35 |
| length | 24.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 8000 LB |
| Rated Single Line Pull (lbs.) | 8000 |
| Series | ES Series |
| sold_as | Each |
| Style | Electric Winch |
| Type | ATV |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| Voltage | 12 DC |
| volts | 12 Volt |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 83.0 |
| width | 8.66 |
| winch_motor | 4.9 HP Series Wound Motor |
