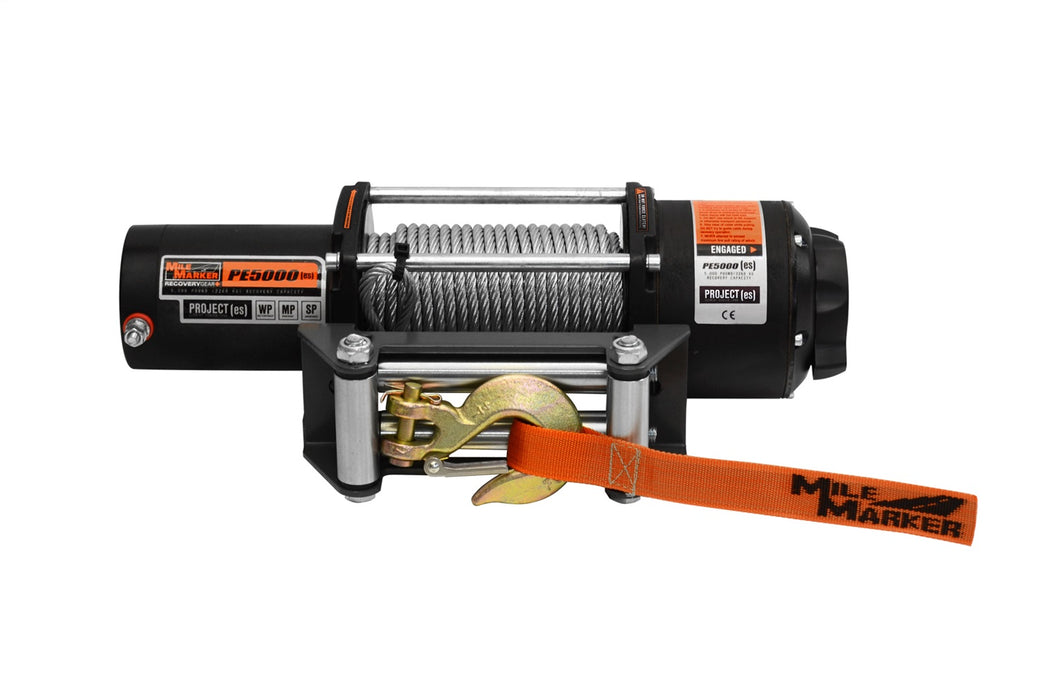

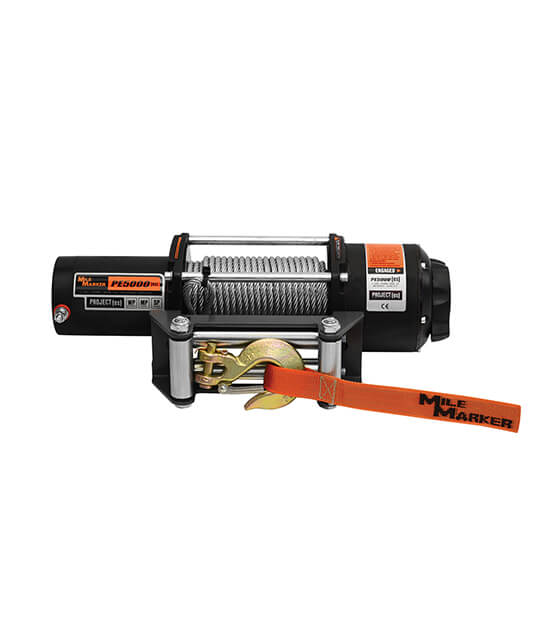

Mile Marker 77-50120W 5000 LB Winch Waterproof 12V Winch 3.8 HP Permanent Magnet Motor w/1/4 x 50 Foot Cable PE5000 ES Mile Marker
by Mile Marker
SKU ds_BCBT_77-50120W
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $168.34
Original price
$570.57
Original price
$570.57
-
Original price
$570.57
Original price
$570.57
Current price
$402.23
$402.23
-
$402.23
Current price
$402.23
Availability:
Only 4 left!
Description
The PE5000 series winch is a mini-monster of UTV recovery power packed into a sleek, compact design. Featuring an all-metal, 3-stage planetary gear system, a submersible, 250-amp solenoid, and 5,000 pounds of pulling capacity, at only 24 pounds there is nowhere this winch can't go.
Fully-sealed, submersible, water, mud, and snow proof, the PE5000 includes a 1/4 Inch x 79 feet steel cable, a galvanized roller fairlead, a hook, tie bars, a corrosive-resistant black body with black zinc clutch handles, and a handheld remote control for versatility and convenience.
Features:
- 3.8 HP Permanent Magnet Motor
- All Metal Planetary Gearing
- Submersible, 250 Amp Solenoid
- Automatic Load Holding Brake
- Center Focused Drum
- Fast Line Speeds
- 79 feet of Steel Cable
- Roller Fairlead
- Waterproof

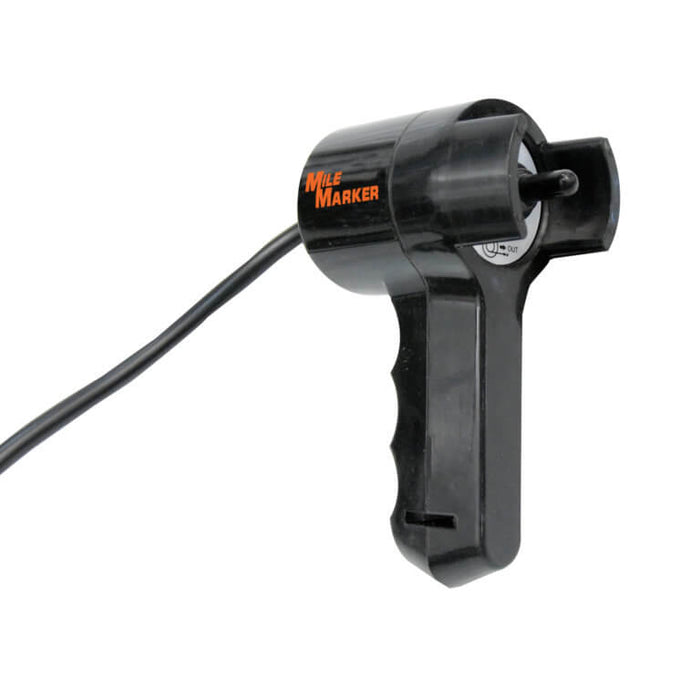

- Handheld Remote Controls
Specifications:
- Rated line pull 5000 lbs.
- Gear Train 3 Stage Planetary
- Gear Ratio 165:1
- Motor 12 Volt DC, input power 3.8hp (2.8 kw)
- Remote Control Power-In, Power-Out Remote
- Steel Cable 1/4 Inch X 79 feet
- Drum Size 2.01 Inch X 5.4 Inch (51.1 mm X 137.16 mm)
- Net weight (Cable) 24 lbs (10.8 kg)
- Bolt Pattern 4 Bolt pattern, 3 Inch X 6.61 Inch (79 mm X 168 mm)
- Dimensions (LxWxH) 15.62 Inch X 4.61 Inch X 4.72 Inch (397MM X 117 mm X 120 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 50 Foot |
| Description_DES | PE5000 ES Waterproof Winch |
| Description_EXT | PE5000 ES Waterproof Winch; 5000 lbs. Rated Line Pull; 12V Winch; 3.8 HP; Permanent Magnet Motor; w/1/4 in. x 50 ft. Cable; |
| Description_FAB | Center Focused Drum |
| Description_FAB | Fast Line Speeds |
| Description_FAB | Freespooling |
| Description_FAB | Fully Sealed |
| Description_FAB | High Output Motors |
| Description_FAB | Load Holding Brake |
| Description_FAB | Marine Grade Remote Control Connectors |
| Description_FAB | New Hause Fairlead Design |
| Description_FAB | Roller Fairlead |
| Description_FAB | Submersible 300 Amp Solenoid |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mile Marker's new UTV winch slams the raw recovery power of its full-size brothers into a sleek, compact package. This mini-monster features all-metal, planetary gear systems for unmatched reliability in a UTV recovery system. With a submersible, 300-amp solenoid, there is nowhere this winch can't go. The PE5000(es) Winch packs enough punch to take on the most daunting tasks. |
| Description_SHO | Winch |
| drum_diameter | 2.01x5.4 Inch |
| gear_ratio | 165:01:00 |
| gear_train | 3 Stage Planetary |
| height | 8.0 |
| last_update | 2022-03-06 03:56:26 |
| length | 14.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 5000 LB |
| Rated Single Line Pull (lbs.) | 5000 |
| Series | ES Series |
| sold_as | Each |
| Style | Electric Winch |
| Type | ATV |
| Universal | Yes |
| vehicle_type | ATV/UTV|Trailer |
| Voltage | 12 DC |
| volts | 12 Volt |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 24.0 |
| width | 20.5 |
| winch_motor | 3.8 HP Permanent Magnet Motor |
