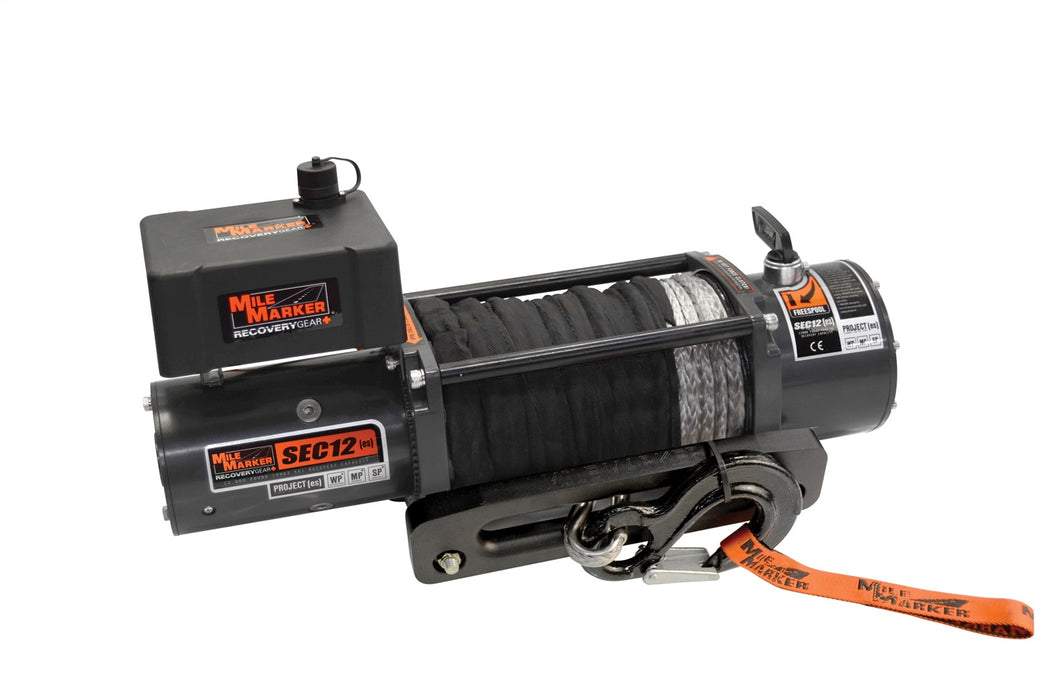

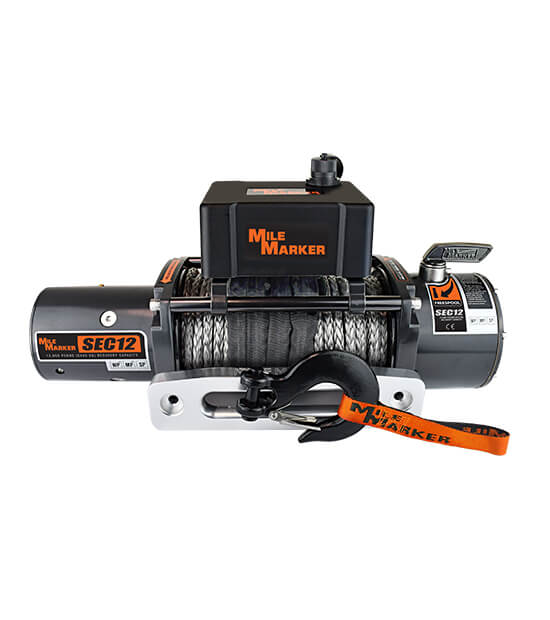

Mile Marker 76-53251BW 12000 LB Winch w/ 92 Foot Synthetic Rope 4.9 HP Series Wound Motor SEC12 Winch ES Premium Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Proven Winch Design, Unmatched Value, Heavy duty series wound motors and rugged planetary gear sets are the backbone of Mile Marker. With robust controls and a fully sealed solenoid and body, the SEC12 and SEC95 are proven winches at an unmatched value.
The Mile Marker SEC12 premium Jeep/Truck/SUV winch with an impressive 12,000 pound pull strength stands up to the most aggressive off-road environments. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch.
With robust controls, fully sealed 400-amp solenoids and body, and an integrated kill switch, the SEC12 is an industry proven winch at an unmatched value.
Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC12 comes with a 3/8 inch x 92 foot synthetic rope, an anodized aluminum hawse fairlead, a hook, stainless steel hardware, corrosive-resistant, and a handheld remote control with a 12 foot cord.
Features:
- 4.9 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless
- Steel Fasteners
- 92 foot Synthetic Rope
- Aluminum Hawse Fairlead
- Waterproof

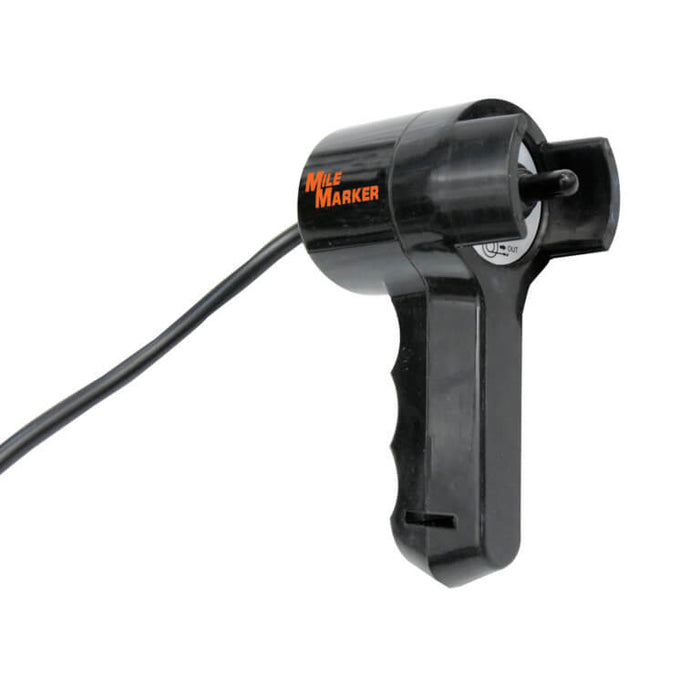

- Handheld Remote Control
Specifications: 12K
- Rated line pull 12000 lbs (5443 Kgs)
- Gear Train 3 Stage Planetary
- Gear Ratio 294:1
- Motor Series Wound, 4.9 hp (3.6 KW), 12V
- Remote Control Power In, Power Out Remote, 12 foot
- Dimensions (LxWxH) 22.25 inch X 6.25 inch X 8.00 inch (565.2 mm X 158.8 mmX 203.2 mm)
- Synthetic Rope 3/8 inch X 92 foot (9.53 mm X 28 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 67 lbs. (30.3 kg)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 92 Foot |
| Description_DES | SEC12 Winch |
| Description_EXT | SEC12 Winch; ES Premium Truck/SUV/Jeep; 12000 lb. Capacity; w/SR; |
| Description_FAB | Automatic Load-Holding Brake |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_FAB | Waterproof - Fully Submersible |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Heavy Duty Series Wound Motors and rugged planetary gear sets are the backbone of this expedition grade winch series. Featuring 19 seals throughout the assembly to keep any and all contaminants outside of the unit. The totally redesigned exterior features NO CHROME construction: stainless hardware, black zinc clutch handles, and anodized aluminum tie bars. Each roller fairlead is now coated with Dacromet(R), a world-class metal coating known for its anti-corrosion properties. Mile Marker has also implemented a new submersible solenoid design with marine-grade connections at the Remote Control plug and socket. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 294:01:00 |
| gear_train | 3 Stage Planetary |
| height | 9.75 |
| last_update | 2022-03-06 03:54:36 |
| length | 25.75 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 12000 LB |
| Series | Sec12 Series |
| sold_as | Each |
| Style | Electric Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| volts | 12 Volt |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 70.2 |
| width | 14.5 |
| winch_motor | 4.9 HP Series Wound Motor |
