Mile Marker 76-50251BW 12000 LB Winch Waterproof 12V 4.8 HP Wound Motor w/Standard Electronics SEC12 ES Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Proven Winch Design, Unmatched Value, Heavy duty series wound motors and rugged planetary gear sets are the backbone of Mile Marker. With robust controls and a fully sealed solenoid and body, the SEC12 and SEC95 are proven winches at an unmatched value.
The Mile Marker SEC12 premium Jeep/Truck/SUV winch with an impressive 12,000 pound pull strength stands up to the most aggressive off-road environments. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch.
With robust controls, fully sealed 400-amp solenoids and body, and an integrated kill switch, the SEC12 is an industry proven winch at an unmatched value.
Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC12 comes with a 3/8 inch x 100 foot steel cable, a roller fairlead, stainless steel hardware, corrosive-resistant, and a handheld remote control with a 12 foot cord.
Features:
- 4.9 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless
- Steel Fasteners
- 100 foot Steel Cable
- Roller Fairlead
- Waterproof

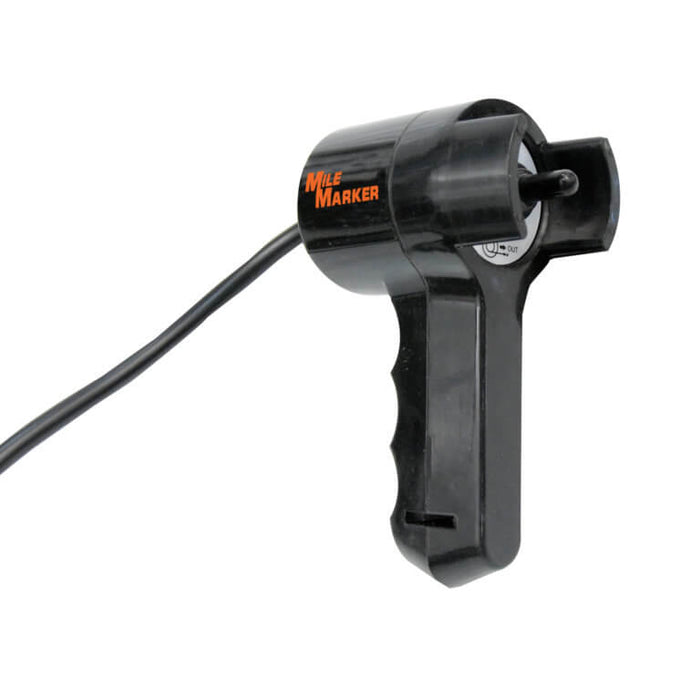

- Handheld Remote Control
Specifications: 12K
- Rated line pull 12000 lbs (5443 Kgs)
- Gear Train 3 Stage Planetary
- Gear Ratio 294:1
- Motor Series Wound, 4.9 hp (3.6 KW), 12V
- Remote Control Power In, Power Out Remote, 12 foot
- Dimensions (LxWxH) 22.25 inch X 6.25 inch X 8.00 inch (565.2 mm X 158.8 mmX 203.2 mm)
- Steel Cable 3/8 inch X 100 foot (9.53 mm X 30.5 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 92 lbs. (41.7 kg)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 100 Foot |
| Description_DES | SEC12 ES Waterproof Winch |
| Description_EXT | SEC12 ES Waterproof Winch; 12000 lbs. Rated Line Pull; 12V Winch; 4.8 HP; Wound Motor w/Standard Electronics; |
| Description_FAB | Automatic Load-Holding Brake |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_FAB | Waterproof - Fully Submersible |
| Description_INV | ELECTRIC WINCHES |

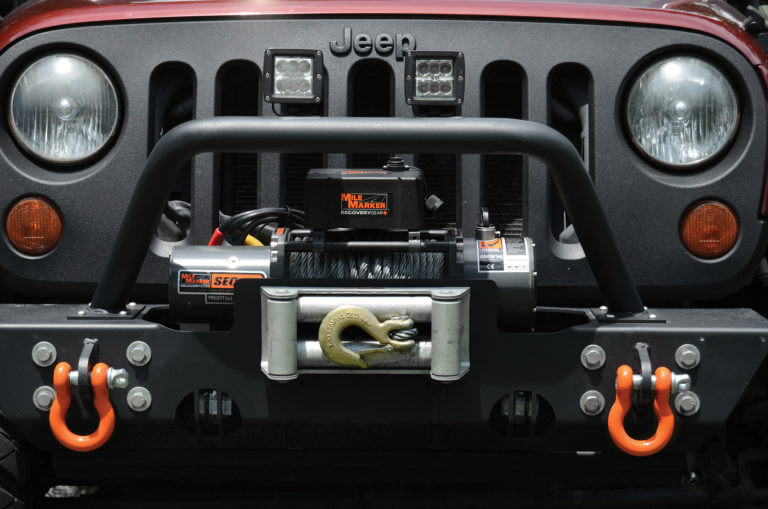

| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 294:01:00 |
| gear_train | 3 Stage Planetary |
| height | 14.0 |
| last_update | 2022-03-06 03:54:39 |
| length | 24.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 12000 LB |
| Series | Sec12 Series |
| sold_as | Each |
| Style | Electric Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| volts | 12 Volt |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 97.0 |
| width | 8.66 |
| winch_motor | 4.9 HP Series Wound Motor |
