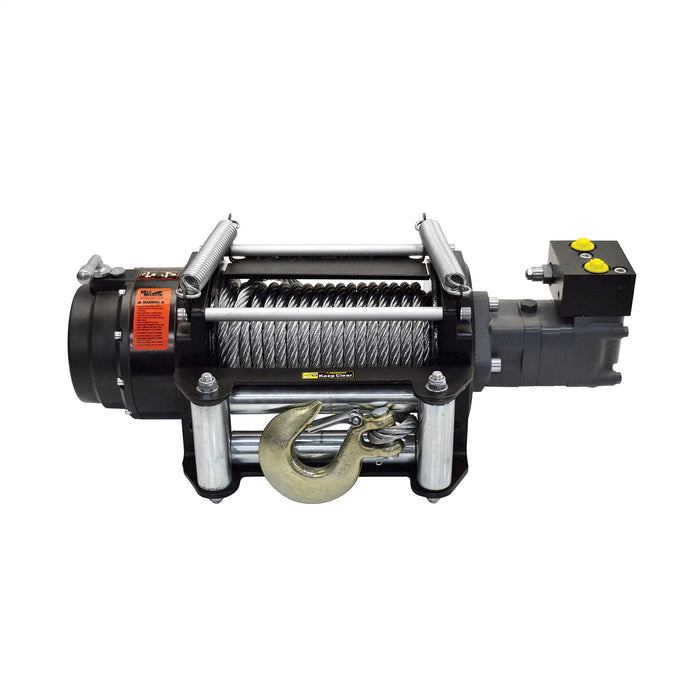

Mile Marker 70-58010C 18000 LB Hydraulic Winch 1 Speed Free Spooling H Series Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Designed for heavy duty commercial, utility, and wrecker applications the H18000 one speed hydraulic winch is independent from its solenoid control valve to give more freedom in application and can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system.
The H18000 one speed to run continuously without draining the battery.
Completely element proof construction, corrosion and water resistant, the H18000 one speed features free spooling, a mechanical lock system, heavy duty break and engagement clutch, stainless steel tie bars, steel cable, 18,000 pounds of pulling capacity and requires a vehicle specific 34 Series valve adapter kit for installation and operation.
Features:
- 1 Speed Winch
- Free Spooling
- Mechanical Lock
- Heavy Duty Brake
- Heavy Duty Engagement Clutch
- Sealed Against Elements
- Can Use Underwater
- Corrosion Resistant Aluminum Body
- Stainless Steel Tie Bars
- Galvanized Aircraft Cable
Specifications:
- Rated line pull 18,000 lbs (8164 kgs)
- Gear Train Planetary, Hardened Steel Gear
- Gear Ratio 36:1
- Motor 7.6 C.I (124.9 CC)
- Dimensions (LxWxH) 25.8 inch X 8.4 inch X 9.96 inch
- (656 mm X 214 mm X 245 mm)
- Cable Size 75 feet X 0.5 inch (22 m X 127 mm )
- Nominal Break Strength = 26,600 lbs.
- Drum Size 4.0 inch X 9.95 inch (102 mm X 253 mm )
- Net weight 158.7 lbs. (72 kgs)
- Bolt Pattern 6.5 inch X 12 inch (165 mm X 304.8 mm) Outer
- 4.5 inch X 12 inch (114.3mm X 304.8 mm) Inner
- Complying Standards SAE J706
Resources
Installation InstructionsSpecifications
| bolt_pattern | 6.5x12 Inch |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 75 Foot |
| Description_DES | H Series Hydraulic Winch |
| Description_EXT | H Series Hydraulic Winch; 18000 lb. Capacity; 1 Speed; |
| Description_FAB | 100 ft. Galvanized Aircraft Cable |
| Description_FAB | 100 Percent Duty Cycle |
| Description_FAB | 2 Speed |
| Description_FAB | Can Use Underwater |
| Description_FAB | Corrosion Resistant |
| Description_FAB | Freespooling |
| Description_FAB | Mechanical Lock |
| Description_FAB | Power Steering Pump Powered |
| Description_FAB | Stainless Steel Tie Bars And Fasteners |
| Description_INV | HYDRAULIC WINCHES |
| Description_MKT | The Mile Marker H Series Hydraulic Winch can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system. |
| Description_SHO | Winch |
| drum_diameter | 4.5x12 Inch |
| gear_ratio | 36:01:00 |
| gear_train | Planetary |
| height | 12.75 |
| last_update | 2022-03-06 03:54:42 |
| length | 30.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 18000 LB |
| Series | H Series |
| sold_as | Each |
| Style | Hydraulic Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| Warranty | Limited Warranty |
| weight | 154.0 |
| width | 14.25 |
