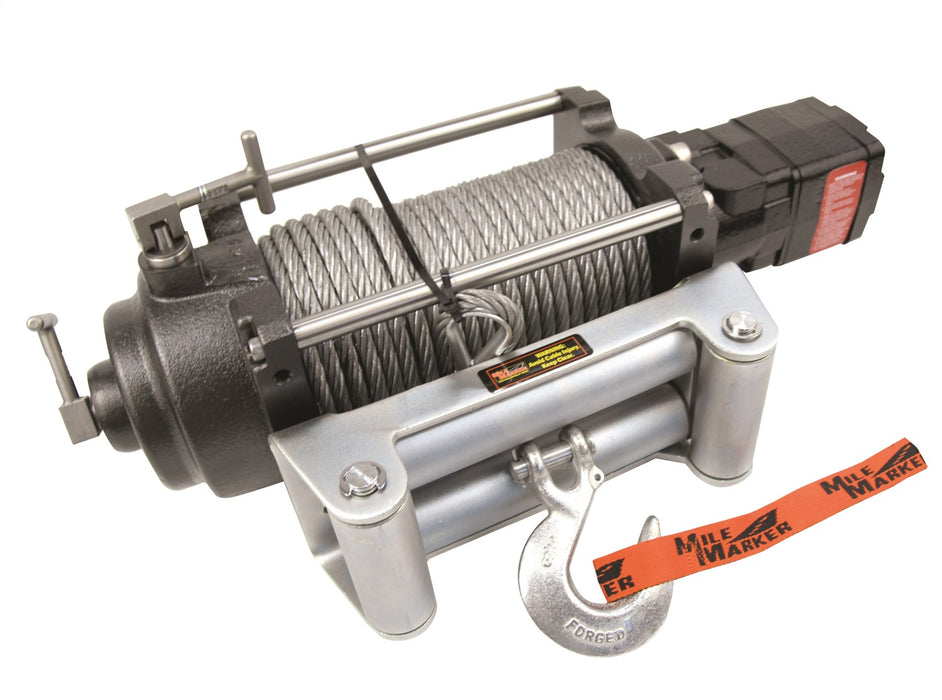

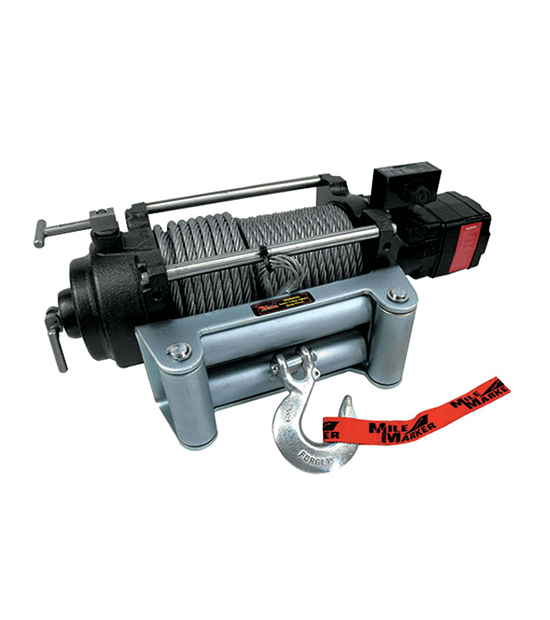

Mile Marker 70-52000C 12000 Lb Hydraulic Winch 18.7 C.I. Hydraulic Motor w/Roller Fairlead 100 Foot Cable H12000 Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
The Mile Marker H12000 Series hydraulic winch is independent from its solenoid control valve to give more freedom in application and can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system.
Utilizing the vehicle's power steering system as its power source allows the H12000 to run continuously without draining the battery.
Completely element proof construction, corrosion and water resistant, the H12000 features two speed spooling, a mechanical lock system, a ductile iron body, stainless steel tie bars and fasteners, reversible mounting on 3 sides, 100 Feet of steel cable, 12,000 pounds of pulling capacity and requires a vehicle specific 34 Series valve adapter kit for installation and operation.
Features:
- 2 Speed
- Freespooling
- Mechanical Lock
- Can Use Underwater
- Corrosion Resistant
- Stainless Steel Tie Bars and Fasteners
- 100 Feet Galvanized Aircraft Cable
Specifications:
- Gear Train Planetary
- Gear Ratio 6:1
- Motor 19.5 cubic inch
- Control Pendant Not Included, Requires 34 Series Kit
- Cable 3/8 inch X 100 Feet (nominal 14,400 lbs) (9.53 mm X 30.5 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 98 lbs (45 kgs)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
- Power Steering Min. Requirements 3.5 GPM at 1500 psi (13.25 L/m at 103.4 bars)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 100 Foot |
| Description_DES | H12000 Hydraulic Winch |
| Description_EXT | H12000 Hydraulic Winch; 12000 lbs. Rated Line Pull; 18.7 C.I. Hydraulic Motor; w/Roller Fairlead; 100 ft. Cable; |
| Description_FAB | Can Be Permanent Or Detachable |
| Description_FAB | Corrosion Resistant |
| Description_FAB | Free spooling; Mechanical Lock |
| Description_FAB | Limited Warranty |
| Description_FAB | Mounts To Front Or Rear Of Vehicle |
| Description_FAB | Reversible Mounting |
| Description_FAB | Sealed Against Elements; Can Be Used Under Water |
| Description_FAB | Stainless Steel Tie Bars And Fasteners |
| Description_INV | HYDRAULIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 6:01 |
| gear_train | Planetary |
| height | 10.0 |
| last_update | 2022-03-06 03:56:32 |
| length | 15.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 12000 LB |
| Series | H Series |
| sold_as | Each |
| Style | Hydraulic Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| Warranty | Limited Warranty |
| weight | 101.0 |
| width | 28.0 |
