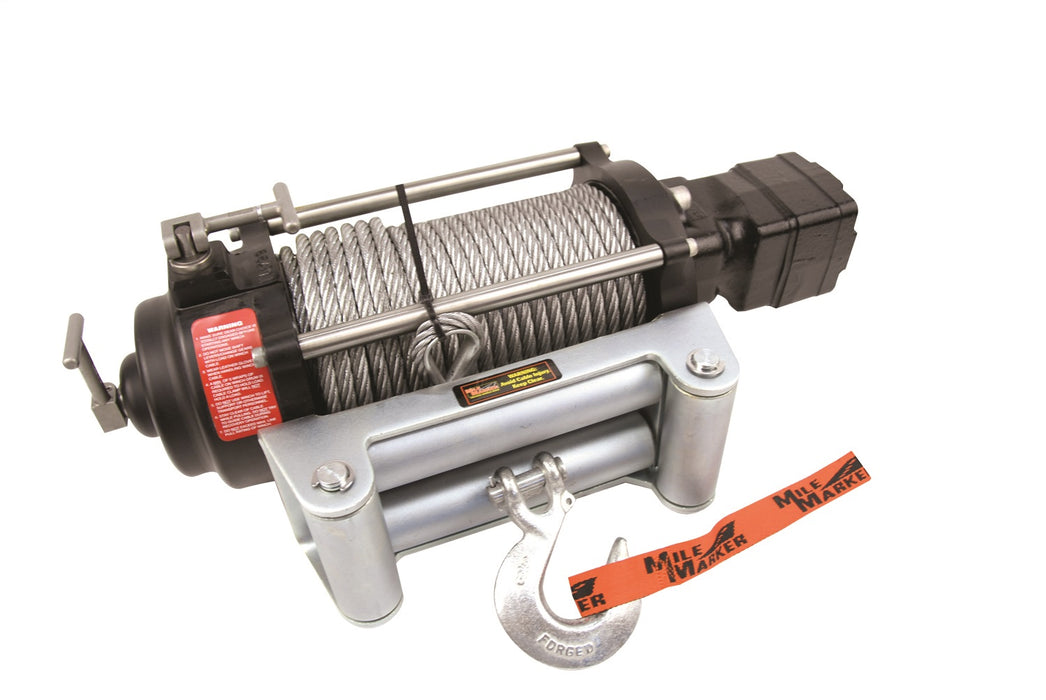

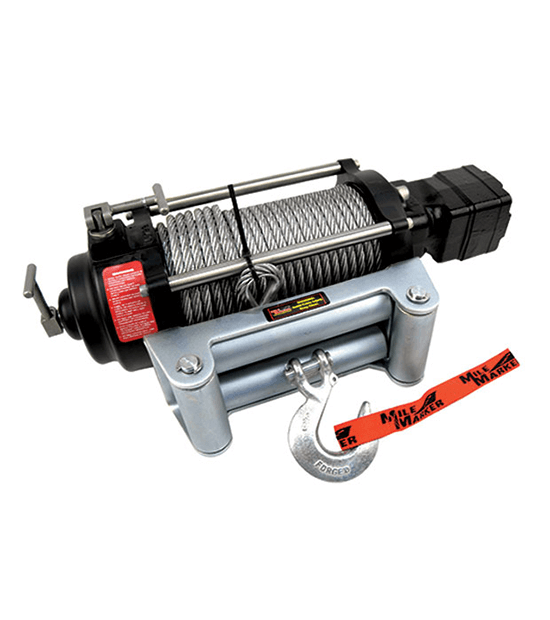

Mile Marker 70-50080C 9000 LB Hydraulic Winch 14 C.I. Hydraulic Motor w/Roller Fairlead 100 Foot Cable H9000 Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
The Mile Marker H9000 Series hydraulic winch is independent from its solenoid control valve to give more freedom in application and can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system.
Utilizing the vehicle's power steering system as its power source allows the H9000 to run continuously without draining the battery.
Completely element proof construction, corrosion and water resistant, the H9000 features two speed spooling, a mechanical lock system, stainless steel tie bars and fasteners, 100 feet of steel cable, 9,000 pounds of pulling capacity and requires a vehicle specific 34 Series valve adapter kit for installation and operation.
Limited Lifetime Warranty
Features:
- 2 Speed
- Freespooling
- Mechanical Lock
- Can Use Underwater
- Corrosion Resistant
- Stainless Steel Tie Bars and Fasteners
- 100 Feet Aircraft Cable
Specifications:
- Gear Train Planetary
- Gear Ratio 6:1
- Motor 14 cubic inch
- Control Pendant Not Included, Requires 34 Series Kit
- Cable 3/8 inch X 100 feet (nominal 14,400 lbs) (9.53 mm X 30.5 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 93 lbs (42.2 kgs)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
- Power Steering Min. Requirements 3.5 GPM at 1500 psi (13.25 L/m at 103.4 bars)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 100 Foot |
| Description_DES | H9000 Hydraulic Winch |
| Description_EXT | H9000 Hydraulic Winch; 9000 lbs. Rated Line Pull; 14 C.I. Hydraulic Motor; w/Roller Fairlead; 100 ft. Cable; |
| Description_FAB | Can Be Permanent Or Detachable |
| Description_FAB | Corrosion Resistant |
| Description_FAB | Free spooling; Mechanical Lock |
| Description_FAB | Limited Warranty |
| Description_FAB | Mounts To Front Or Rear Of Vehicle |
| Description_FAB | Reversible Mounting |
| Description_FAB | Sealed Against Elements; Can Be Used Under Water |
| Description_FAB | Stainless Steel Tie Bars And Fasteners |
| Description_INV | HYDRAULIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 6:01 |
| gear_train | Planetary |
| height | 10.0 |
| last_update | 2022-03-06 03:56:32 |
| length | 15.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 9000 LB |
| Rated Single Line Pull (lbs.) | 9000 |
| Series | H Series |
| sold_as | Each |
| Style | Hydraulic Winch |
| Type | Automotive |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| Voltage | Hydraulic |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Warranty |
| weight | 88.0 |
| width | 28.0 |
