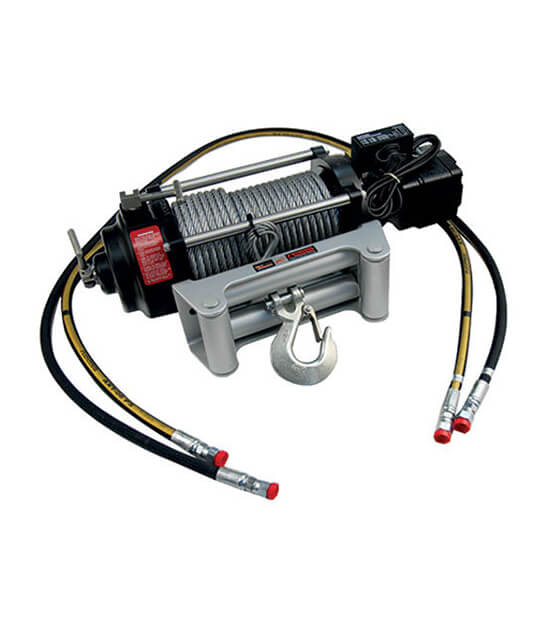

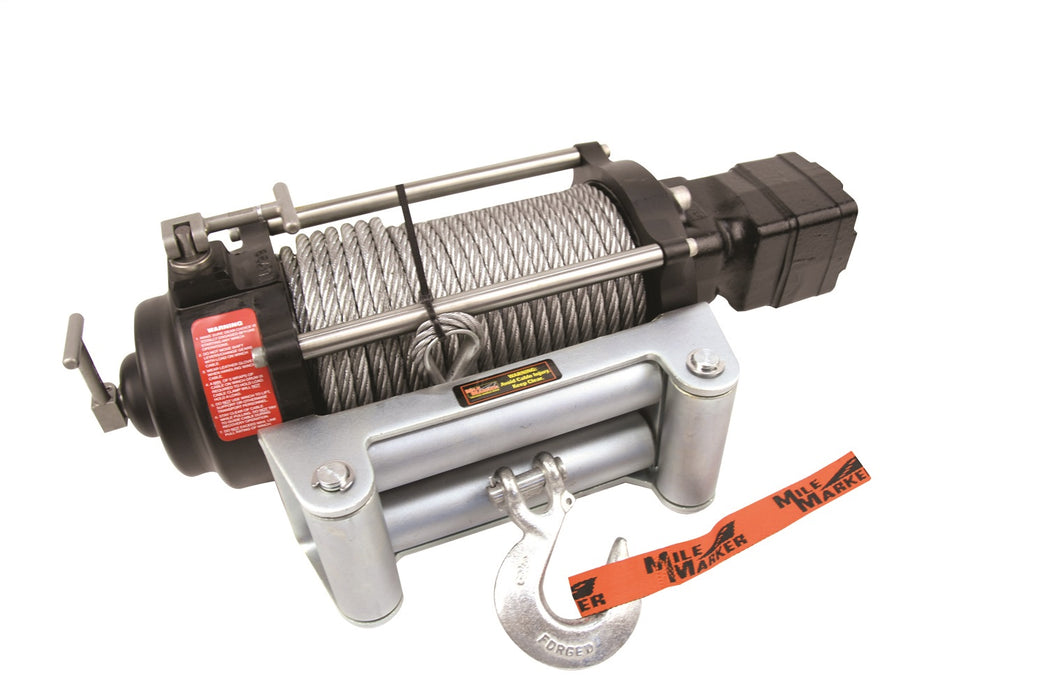

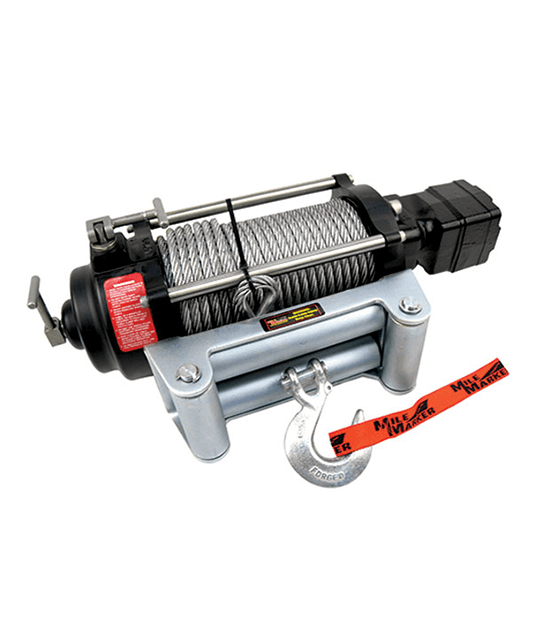

Mile Marker 70-50050C 10500 LB Hydraulic Winch 17.9 C.I. Hydraulic Motor w/Roller Fairlead 100 Foot Cable H10500 Mile Marker
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
The Mile Marker H10500 Series hydraulic winch is independent from its solenoid control valve to give more freedom in application and can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system.
Utilizing the vehicle's power steering system as its power source ensures the H10500 to run continuously without draining the battery.
Completely element proof construction, corrosion and water resistant, the H10500 features two speed spooling, a mechanical lock system, stainless steel tie bars and fasteners, 100 feet of steel cable, 10,500 pounds of pulling capacity and requires a vehicle specific 34 Series valve adapter kit for installation and operation.
Features:
- 2 Speed
- Freespooling
- Mechanical Lock
- Can Use Underwater
- Corrosion Resistant
- Stainless Steel Tie Bars and Fasteners
- 100 Feet Galvanized Aircraft Cable
Specifications:
- Gear Train Planetary
- Gear Ratio 6:1
- Motor 17.9 cubic inch
- Control Pendant Not Included, Requires 34 Series Kit
- Cable 3/8 inch X 100 feet (nominal 14,400 lbs) (9.53 mm X 30.5 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 93 lbs (42.2 kgs)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
- Power Steering Min. Requirements 3.5 GPM at 1500 psi (13.25 L/m at 103.4 bars)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 100 Foot |
| Description_DES | H10500 Hydraulic Winch |
| Description_EXT | H10500 Hydraulic Winch; 10500 lbs. Rated Line Pull; 17.9 C.I. Hydraulic Motor; w/Roller Fairlead; 100 ft. Cable; |
| Description_FAB | Can Be Permanent Or Detachable |
| Description_FAB | Corrosion Resistant |
| Description_FAB | Free spooling; Mechanical Lock |
| Description_FAB | Limited Warranty |
| Description_FAB | Mounts To Front Or Rear Of Vehicle |
| Description_FAB | Reversible Mounting |
| Description_FAB | Sealed Against Elements; Can Be Used Under Water |
| Description_FAB | Stainless Steel Tie Bars And Fasteners |
| Description_INV | HYDRAULIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 6:01 |
| gear_train | Planetary |
| height | 10.0 |
| last_update | 2022-03-06 03:56:33 |
| length | 15.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 10500 LB |
| Series | H Series |
| sold_as | Each |
| Style | Hydraulic Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| Warranty | Limited Warranty |
| weight | 88.0 |
| width | 28.0 |
