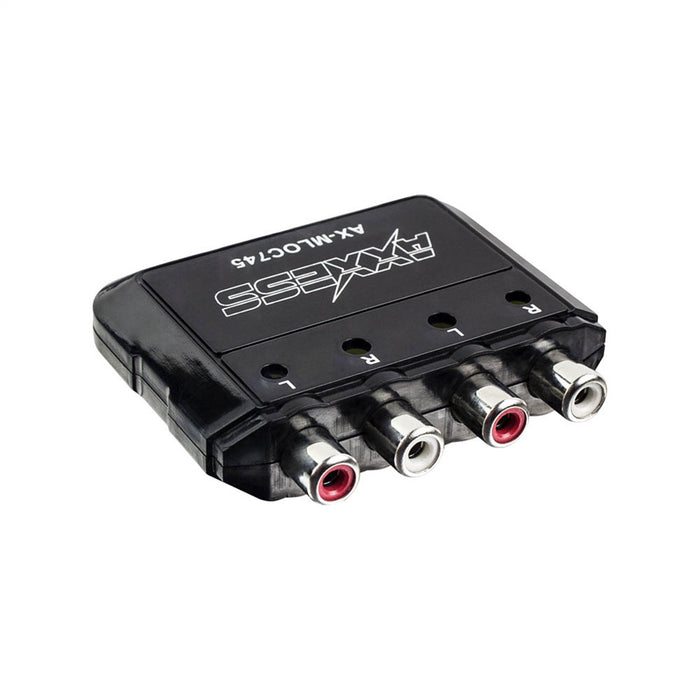

Metra Electronics AXLOC4M-150 Mini Line Output Converter; 4 Channel; 150 Watt;
SKU ds_DGLX_AXLOC4M-150
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$89.07
-
Original price
$89.07
Original price
$89.07
$89.07
$89.07
-
$89.07
Current price
$89.07
Availability:
Out of stock
Description
A 4 Channel Adjustable, Line Output Converter (LOC) with Built-in Amplifier Remote Generator. The LOC is designed to convert (4) channels of speaker level audio into (4) channels of line level audio that can be used by OEM amplifiers. It can also be used with OEM radios to add aftermarket amplifiers. This device will also detect the presence of an audio signal and then generate a +12V output that can be used to turn-on an aftermarket amplifier. Features and specifications The LOC is able to handle 150 watts per channel continuous input without over heating. The input circuitry is designed to correct the crossover distortion commonly found on standard LOCs while providing a high to low level step down of 6:1. Output audio level is infinitely adjustable using the onboard, high quality potentiometers. The remote output or amplifier trigger is rated at 500mA (+12V) and will easily handle an outboard relay if additional current is needed. The remote output will trigger instantaneously when the LOC detects a DC voltage on the white, left + audio input wire above 5V or a very low audio signal. It will shut off 60 seconds after no signal is detected. Installation The LOC should be installed on a stereo's speaker output wires or the output wires on an OEM amplifier of up to 150 watts per channel. These wires can be found behind the stereo in the dash, on the output of an OEM amplifier, or on the input terminals on the OEM speakers. Please refer to the wiring diagram for the input connection details.
Specifications
| Description_DES | Mini Line Output Converter |
| Description_EXT | Mini Line Output Converter; 4 Channel; 150 Watt; |
| Description_FAB | 12-Volt Signal Sense Turn-On |
| Description_FAB | 150-Watt Max Per Channel |
| Description_FAB | 4-Channel Input |
| Description_FAB | Adjustable Gain For Each Channel |
| Description_FAB | Worlds Smallest L.O.C. |
| Description_LAB | Proposition 65 |
| Description_MKT | A 4 Channel Adjustable, Line Output Converter (LOC) with Built-in Amplifier Remote Generator. The LOC is designed to convert (4) channels of speaker level audio into (4) channels of line level audio that can be used by OEM amplifiers. It can also be used with OEM radios to add aftermarket amplifiers. This device will also detect the presence of an audio signal and then generate a +12V output that can be used to turn-on an aftermarket amplifier. Features and specifications The LOC is able to handle 150 watts per channel continuous input without over heating. The input circuitry is designed to correct the crossover distortion commonly found on standard LOCs while providing a high to low level step down of 6:1. Output audio level is infinitely adjustable using the onboard, high quality potentiometers. The remote output or amplifier trigger is rated at 500mA (+12V) and will easily handle an outboard relay if additional current is needed. The remote output will trigger instantaneously when the LOC detects a DC voltage on the white, left + audio input wire above 5V or a very low audio signal. It will shut off 60 seconds after no signal is detected. Installation The LOC should be installed on a stereo's speaker output wires or the output wires on an OEM amplifier of up to 150 watts per channel. These wires can be found behind the stereo in the dash, on the output of an OEM amplifier, or on the input terminals on the OEM speakers. Please refer to the wiring diagram for the input connection details. |
| Description_SHO | Line Level Converter |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
