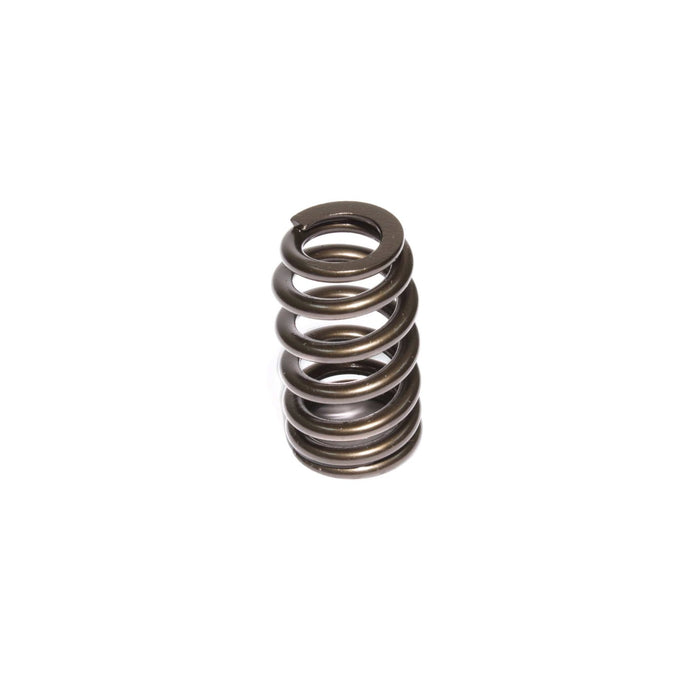

Lunati 74881-1 Signature Beehive Valve Spring 1.240" O.D.; 1.700" Installed Height; 1 Spring
by Lunati
SKU ds_DRPX_74881-1
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$44.03
-
Original price
$44.03
Original price
$44.03
$44.03
$44.03
-
$44.03
Current price
$44.03
Availability:
Out of stock
Description
In any spring, the inner diameter experiences significantly more stress than the outside. The ovate multi-arch wire design of these revolutionary valve springs places more material on the inner diameter of the spring, which more evenly distributes stress throughout the wire cross-section and increases the overall life of the spring. Other features of the Signature Series Ovate Beehive Valve Springs include reduced mass in the retainer end of the spring, which increases RPM potential, and reduced coil surging for more valve control and longevity. Lastly, a thinner cross-section wire gives more coil bind clearance to allow for camshafts with higher lift or higher ratio rocker arms. The Signature Series Ovate Beehive Valve Springs are the ultimate in cutting-edge valvetrain performance.
Specifications
| Description_ASC | See 74881-16 for a set of 16. |
| Description_DEF | Engine Valve Spring |
| Description_DES | Signature Beehive Valve Spring 1.240" O.D.; 1.700" Installed Height; 1 Spring |
| Description_EXT | This Lunati Signature Series Beehive Valve Spring features a 1.240" O.D.; with an installed height of 1.700". Has a seat pressure of 110 with a coil bind height of 1.115" |
| Description_INV | 1 Beehive Valve Spring .525" Max Lift |
| Description_MKT | In any spring, the inner diameter experiences significantly more stress than the outside. The ovate multi-arch wire design of these revolutionary valve springs places more material on the inner diameter of the spring, which more evenly distributes stress throughout the wire cross-section and increases the overall life of the spring. Other features of the Signature Series Ovate Beehive Valve Springs include reduced mass in the retainer end of the spring, which increases RPM potential, and reduced coil surging for more valve control and longevity. Lastly, a thinner cross-section wire gives more coil bind clearance to allow for camshafts with higher lift or higher ratio rocker arms. The Signature Series Ovate Beehive Valve Springs are the ultimate in cutting-edge valvetrain performance. |
| Description_SHO | 1 Beehive Spring |
| height | 4.0 |
| length | 6.0 |
| weight | 0.25 |
| width | 2.0 |
