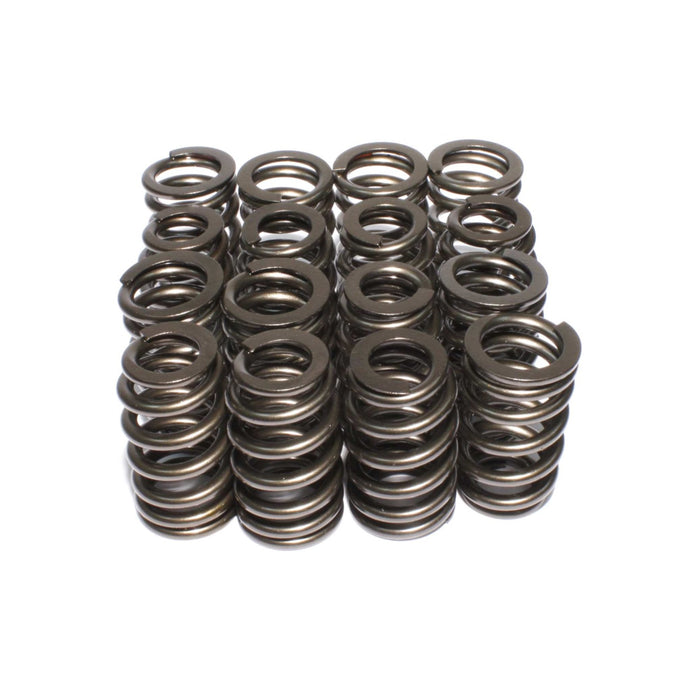

Lunati 74818-16 Signature Beehive Valve Springs 1.290" OD; 1.800" Installed Height; 16 Springs
by Lunati
SKU ds_DRPX_74818-16
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$353.24
-
Original price
$353.24
Original price
$353.24
$353.24
$353.24
-
$353.24
Current price
$353.24
Description
In any spring, the inner diameter experiences significantly more stress than the outside. The ovate multi-arch wire design of these revolutionary valve springs places more material on the inner diameter of the spring, which more evenly distributes stress throughout the wire cross-section and increases the overall life of the spring. Other features of the Signature Series Ovate Beehive Valve Springs include reduced mass in the retainer end of the spring, which increases RPM potential, and reduced coil surging for more valve control and longevity. Lastly, a thinner cross-section wire gives more coil bind clearance to allow for camshafts with higher lift or higher ratio rocker arms. The Signature Series Ovate Beehive Valve Springs are the ultimate in cutting-edge valvetrain performance.
Specifications
| California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. |
| Coil Bind Height | 1.14 |
| Description_ASC | See 74818-1 for a single valve spring. |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | Signature Beehive Valve Springs 1.290" OD; 1.800" Installed Height; 16 Springs |
| Description_EXT | These Lunati Signature Series Beehive Valve Springs feature a 1.290" O.D.; with an installed height of 1.800". Has a seat pressure of 130 with a coil bind height of 1.140" |
| Description_INV | 16 Beehive Valve Springs .600" Max Lift |
| Description_MKT | In any spring, the inner diameter experiences significantly more stress than the outside. The ovate multi-arch wire design of these revolutionary valve springs places more material on the inner diameter of the spring, which more evenly distributes stress throughout the wire cross-section and increases the overall life of the spring. Other features of the Signature Series Ovate Beehive Valve Springs include reduced mass in the retainer end of the spring, which increases RPM potential, and reduced coil surging for more valve control and longevity. Lastly, a thinner cross-section wire gives more coil bind clearance to allow for camshafts with higher lift or higher ratio rocker arms. The Signature Series Ovate Beehive Valve Springs are the ultimate in cutting-edge valvetrain performance. |
| Description_SHO | 16 Beehive Springs |
| height | 3.0 |
| length | 11.0 |
| Max Lift | 0.6 |
| Open Pressure | 318 |
| Seat Pressure | 130 |
| Spring Rate | 313 |
| Title | Signature Beehive Valve Springs 1.290 OD; 1.800 Installed Height; 16 Springs |
| weight | 2.8 |
| width | 2.5 |
