KC Hilites 91310 Yamaha YXZ1000R; Pro6 Gravity LED 6-Lt Overhead Sys
by KC Hilites
SKU ds_BFHB_91310
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,383.56
-
Original price
$2,383.56
Original price
$2,383.56
$2,383.56
$2,383.56
-
$2,383.56
Current price
$2,383.56
Availability:
Out of stock
Description
The Gravity(R) LED Pro6 Single uses a durable UV treated composite housing design powered by patented 20W Gravity(R) LED G6 optical inserts available in Spot, SAE/ECE Driving and Wide-40 Beam patterns. Each Pro6 LED single light uses a unique ball mount system that offers easy installation and adjustable light aim to suit your exact lighting needs. Gravity LED Pro6 Singles are perfect for front bumpers, light bars and a-pillar applications. Every Gravity LED Pro6 pair pack system comes complete with a performance wiring harness and illuminated LED light switch.
Specifications
| Add-On | N/A |
| Amp Draw | 9.78A |
| Beam Pattern | Combo |
| Description_ASC |

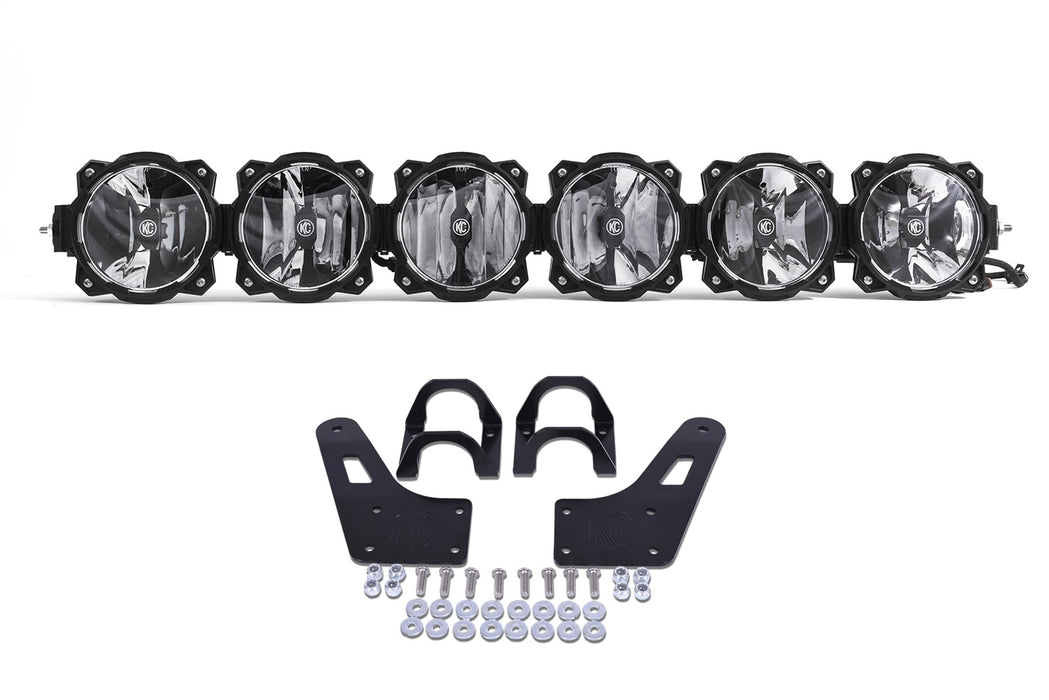

FEATURES -Powered by Gravity LED G6 optical inserts ? efficient; powerful; patented -Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704;736) -Signature KC modular design is expandable to different widths -Extremely high output with very low amperage draw -Combo Wide-40 and Driving Beam Pattern LIGHT PERFORMANCE -Raw Lumens: 14;712 lm -Lux @ 10 Meters: 7;820 lx -Candela: 782;000 cd -Beam Distance (Meters): 1;769m SPECIFICATIONS -Wattage: 120W -Amp Draw: 9.78A -Voltage: 9-32V -Dimensions: H-6.06in. x D-3.33in. x W-39.125in. PARTS INCLUDED -(1) 39in. Pro6 6-Light LED Light Bar -Deluxe Plug-N-Play Wiring Harness W/30 amp LED Switch PERFORMANCE Gravity LED OPTICS Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W; G6 optics are available in Spot; Driving and Wide-40 patterns. INFINITY Ring SYSTEM The Infinity Ring system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ring. YAMAHA END MOUNT SYSTEM The Pro6 LED light bar uses high-strength aluminum end mounts designed specifically as a Yamaha YXZ1000R-specific system including overhead roof mounts and all necessary hardware. RACE PROVEN STRENGTH/DURABILITY Inspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable light bar design available today |
| Description_ASM | 2016-2019 |
| Description_ASM | 2016-2019 Yamaha YXZ1000R |
| Description_DEF | Off-Road Light |
| Description_DES | KC Pro6 Gravity LED 29in 6-Light Combo System 2016-2019 Yamaha YXZ1000R |
| Description_DES | Yamaha YXZ1000R; Pro6 Gravity LED 6-Lt Overhead Sys |
| Description_EXT | Dramatically improve your Yamaha s visibility and lighting performance at night with Gravity/reg; LED Pro6 6-Light LED light bar; with a patent pending Infinity Ring/trade; modular design and patented Gravity LED optic system. |
| Description_EXT | Dramatically improve your Yamaha's visibility and lighting performance at night with Gravity LED Pro6 6-Light LED light bar, with patented Infinity Ring modular design and patented Gravity LED optic system. |
| Description_FAB | Combo Wide-40 and Driving Beam Pattern |
| Description_FAB | Deluxe Plug-N-Play Wiring Harness W/ 30 amp LED Switch |
| Description_FAB | Extremely high output with very low amperage draw |
| Description_FAB | High Output |
| Description_FAB | Low Amperage Draw |
| Description_FAB | Modular Beam Optics |
| Description_FAB | Powered by Gravity(R) LED G6 optical inserts efficient, powerful, patented |
| Description_INV | KC Gravity LED |
| Description_INV | LED Light Bar |

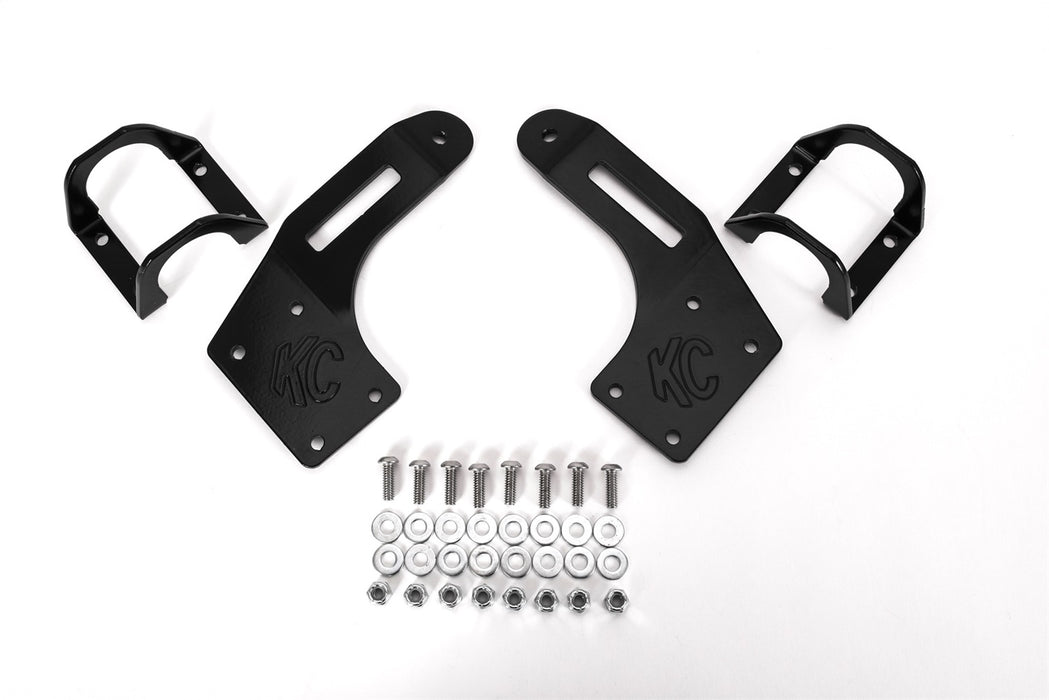

| Description_MKT | Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable LED light bar design available today.RAW Lumens: 2,200 lmRAW Lumens: 2,200 lmRaw Lumens: 2,300 lmRaw Lumens: 2,300 lm Patented Gravity(R) LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving, and Wide-40 patterns. The patented Infinity Ring(TM) system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring. The Pro6 LED light bar uses high-strength aluminum end mounts designed specifically as a Yamaha YXZ1000Rspecific system including overhead roof mounts and all necessary hardware. |
| Description_MKT | The Gravity(R) LED Pro6 Single uses a durable UV treated composite housing design powered by patented 20W Gravity(R) LED G6 optical inserts available in Spot, SAE/ECE Driving and Wide-40 Beam patterns. Each Pro6 LED single light uses a unique ball mount system that offers easy installation and adjustable light aim to suit your exact lighting needs. Gravity LED Pro6 Singles are perfect for front bumpers, light bars and a-pillar applications. Every Gravity LED Pro6 pair pack system comes complete with a performance wiring harness and illuminated LED light switch. |
| Description_SHO | Gravity LEDs |
| Description_SHO | Off-Road Light |
| height | 6.0 |
| IP Rating | IP68 |
| length | 48.0 |
| LTL | N |
| lumens | 14712 |
| LUX | 5150 |
| Overall Length | 39.000 in. |
| Prop 65 Yes/No | No |
| Raw Lumens | 13,800 lm |
| Title | KC Hilites 39 in Pro6 Gravity LED - 6-Light - Light Bar System - 120W Combo Beam - for Yamaha YXZ1000R |
| Voltage | 9-32V |
| WARNING CA Proposition 65 | No |
| Wattage | 120W |
| weight | 21.0 |
| width | 12.0 |
